HP Pavilion dv9500 - Entertainment Notebook PC Maintenance And Service Guide

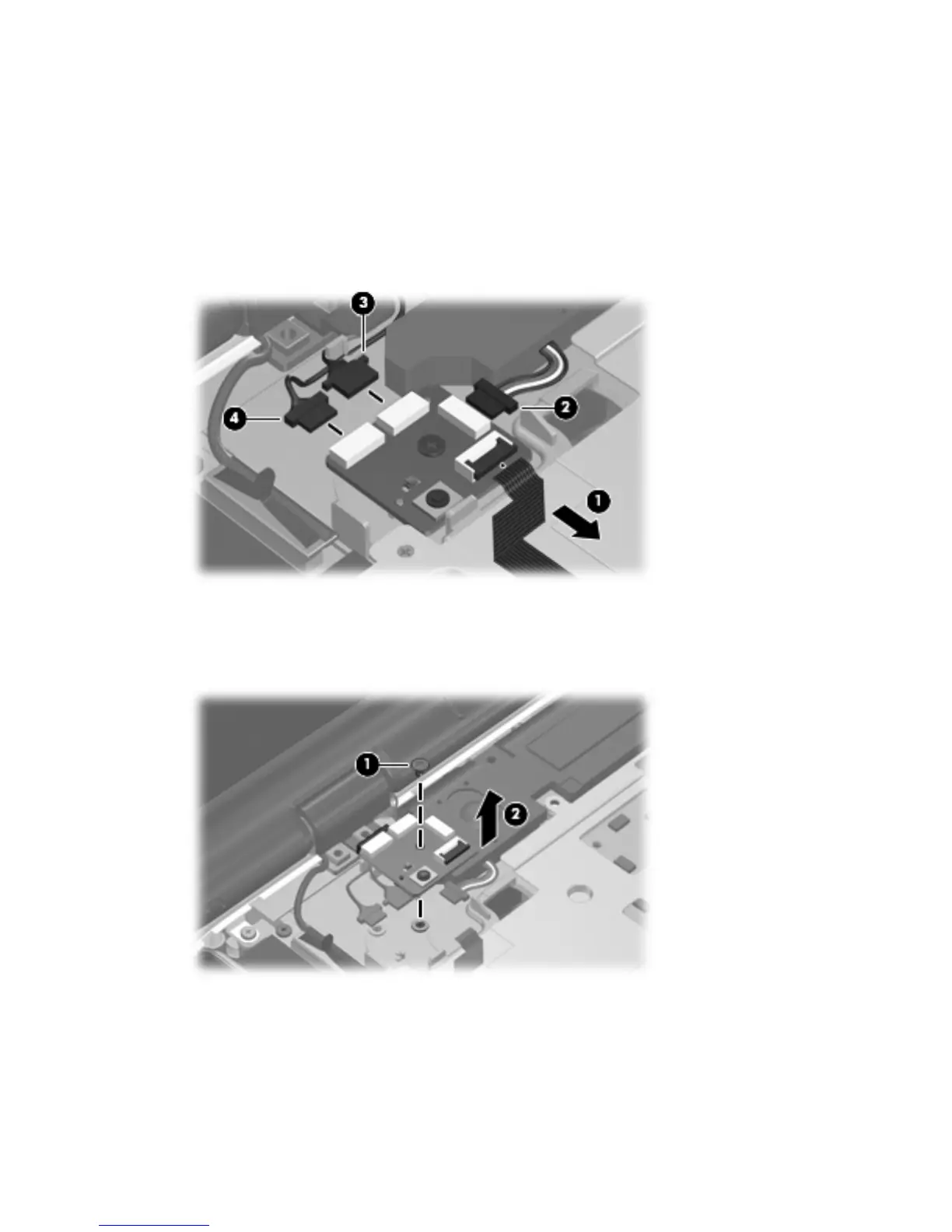

Remove the power button board:
1. Disconnect the following cables from the power button board:
(1) Power button board cable
(2) Speaker assembly cable
(3) Display switch module cable
(4) Microphone cable
2. Remove the silver Phillips PM2.5×5.0 screw (1) that secures the power button board to the
computer.
3. Remove the power button board (2).
Reverse this procedure to install the power button board.
68 Chapter 4 Removal and replacement procedures

HP Pavilion dv9500 - Entertainment Notebook PC Specifications

General

Processor	Intel Core 2 Duo
Memory	Up to 4 GB DDR2
Graphics	NVIDIA GeForce 8600M GS
Operating System	Windows Vista Home Premium
Audio	Altec Lansing speakers
HDMI Port	Yes
Chipset	Intel PM965 Express
Display Size	17.0 inch
Display Resolution	1440 x 900 (WXGA+)
Hard Drive	Up to 320 GB
Optical Drive	DVD±RW with Double Layer Support
Wireless	802.11a/b/g
Battery	6-cell Lithium-Ion
Weight	3.5 kg
USB Ports	3 x USB 2.0
