HP Pavilion dv9500 - Entertainment Notebook PC Maintenance And Service Guide

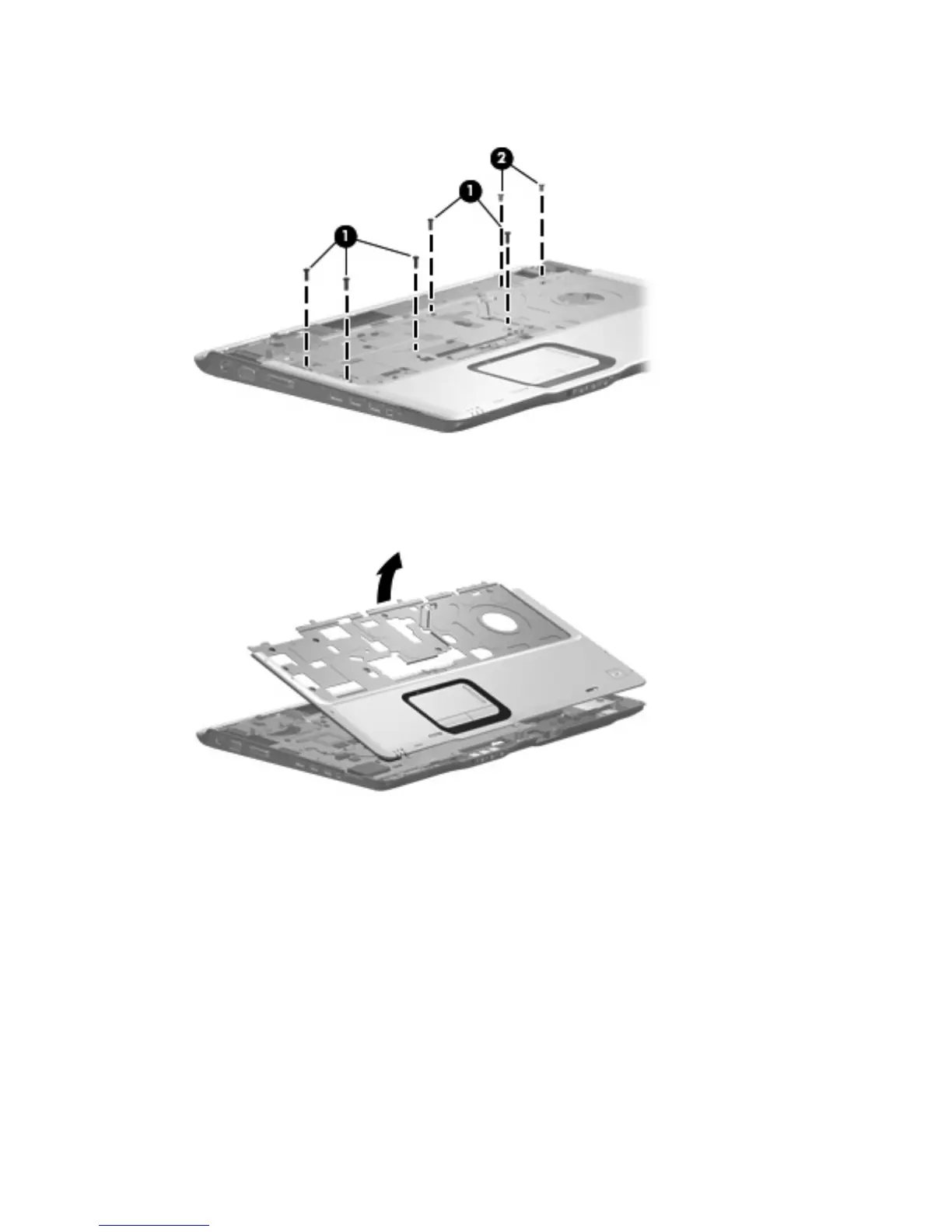

7. Remove the five Phillips PM2.5×8.0 screws (1) and the two silver Phillips PM2.5×5.0 screws (2)
that secure the top cover to the base enclosure.
8. Lift the rear edge of the top cover until it disengages from the computer, and then swing it up and
forward until the top cover is resting upside down in front of the computer.
78 Chapter 4 Removal and replacement procedures

HP Pavilion dv9500 - Entertainment Notebook PC Specifications

General

Processor	Intel Core 2 Duo
Memory	Up to 4 GB DDR2
Graphics	NVIDIA GeForce 8600M GS
Operating System	Windows Vista Home Premium
Audio	Altec Lansing speakers
HDMI Port	Yes
Chipset	Intel PM965 Express
Display Size	17.0 inch
Display Resolution	1440 x 900 (WXGA+)
Hard Drive	Up to 320 GB
Optical Drive	DVD±RW with Double Layer Support
Wireless	802.11a/b/g
Battery	6-cell Lithium-Ion
Weight	3.5 kg
USB Ports	3 x USB 2.0
