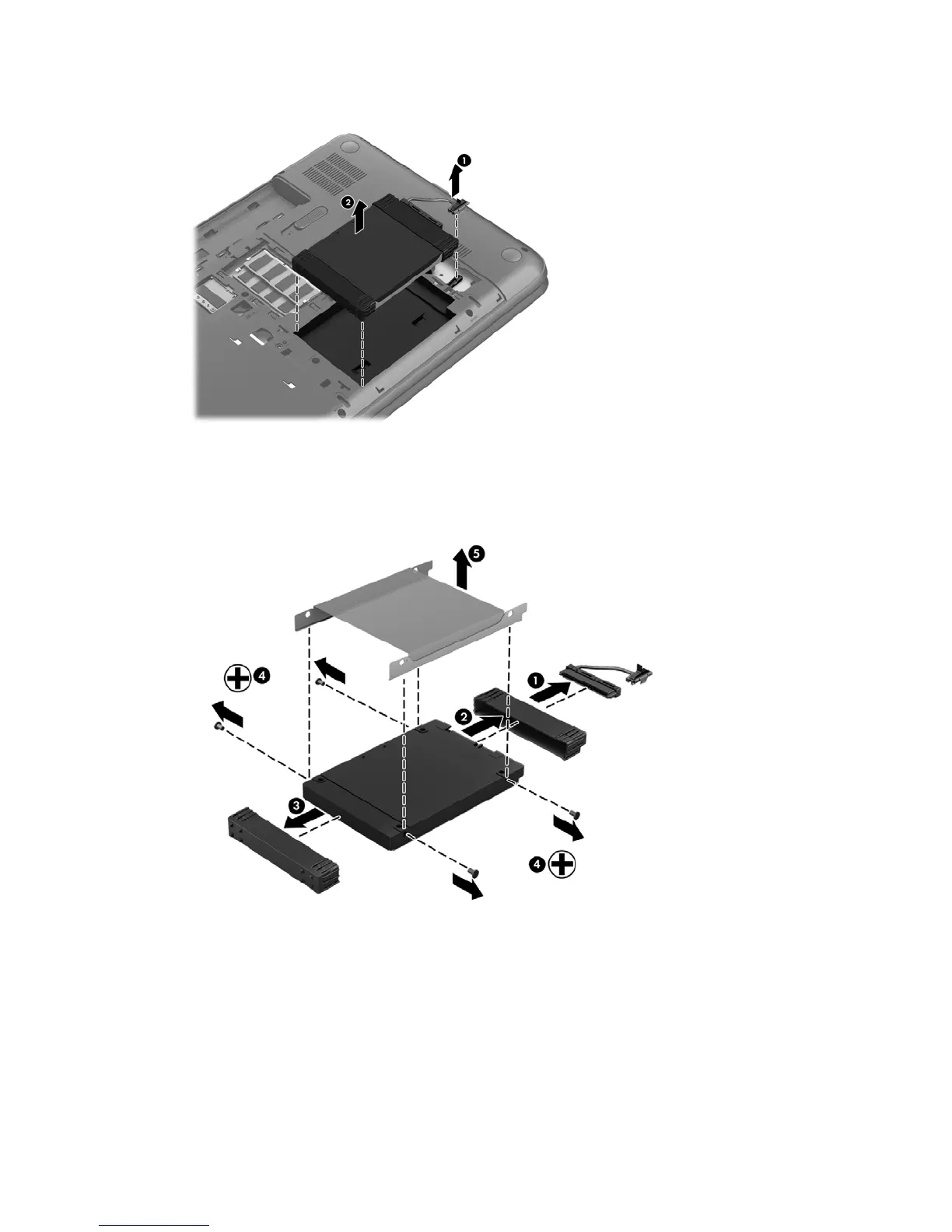

4. Lift the hard drive (2) out of the hard drive bay.
5. Disconnect the hard drive cable (1) from the hard drive.
6. Remove the front bumper (2) and back bumper (3) from the hard drive.
7. Remove the 4 screws (4) from the hard drive and remove the bracket (5) from the hard drive.
To install a hard drive, reverse this procedure.
54 Chapter 8 Maintaining your computer
