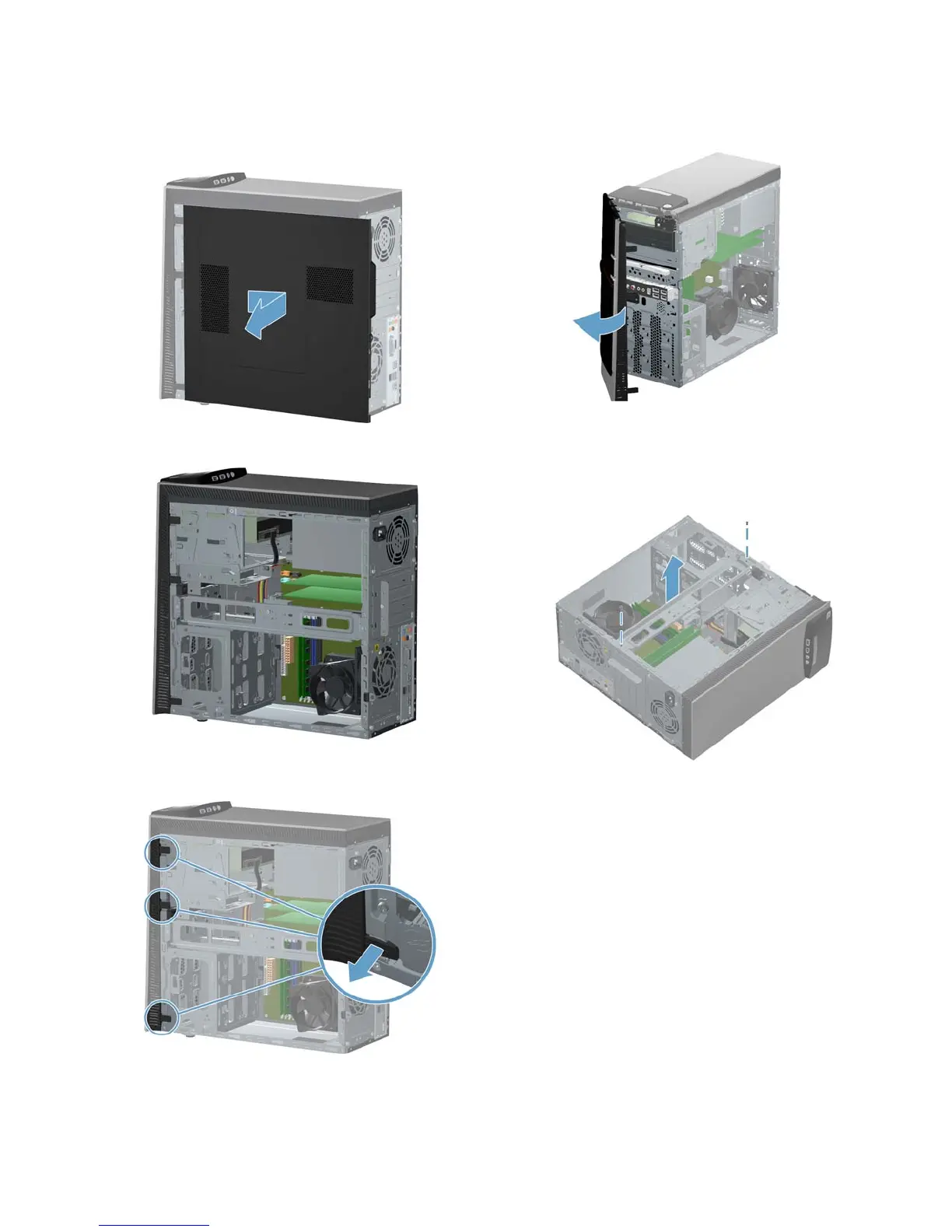

5. Slide the side panel toward the back of the
computer, and then pull the side panel away
from the computer.
The inside of the computer is exposed.
6. Lift the three tabs on the front bezel to release it.
7. Open the front bezel, and then remove it from
the computer.
8. Lay the computer on a flat surface.
9. Remove the two screws holding the retaining bar
in place.
Features may vary by model.
Removing and Replacing a Hard Disk Drive
3
