Remove the power connector cable:

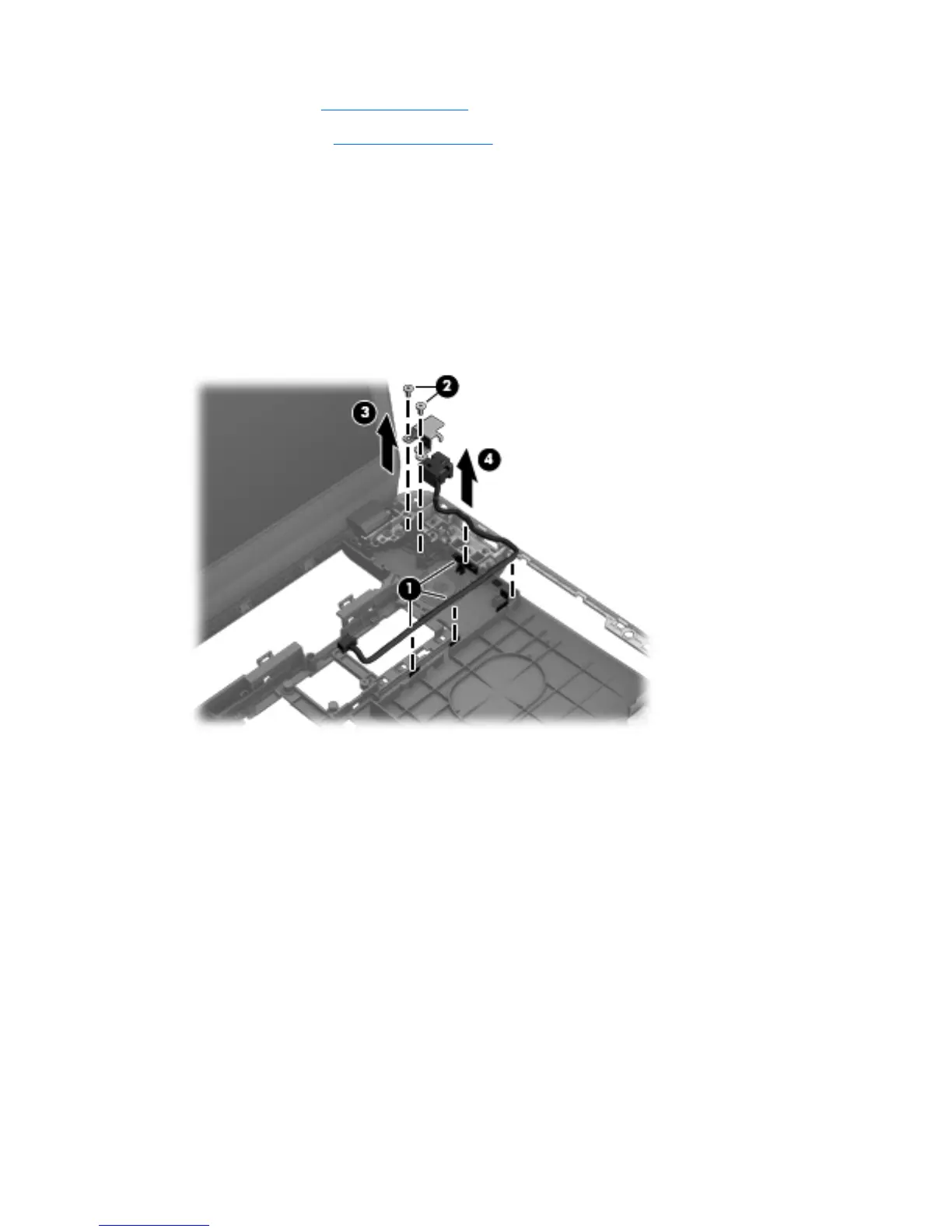

1. Release the power connector cable (1) from the clips and routing channel built into the
base enclosure.
2. Remove the two Phillips PM2.5×5.0 screws (2) that secure the power connector and power
connector bracket to the base enclosure.
3. Remove the power connector bracket (3).
4. Release the power connector (4) from the clip built into the base enclosure.
5. Remove the power connector cable.
Reverse this procedure to install the power connector cable.
