8.

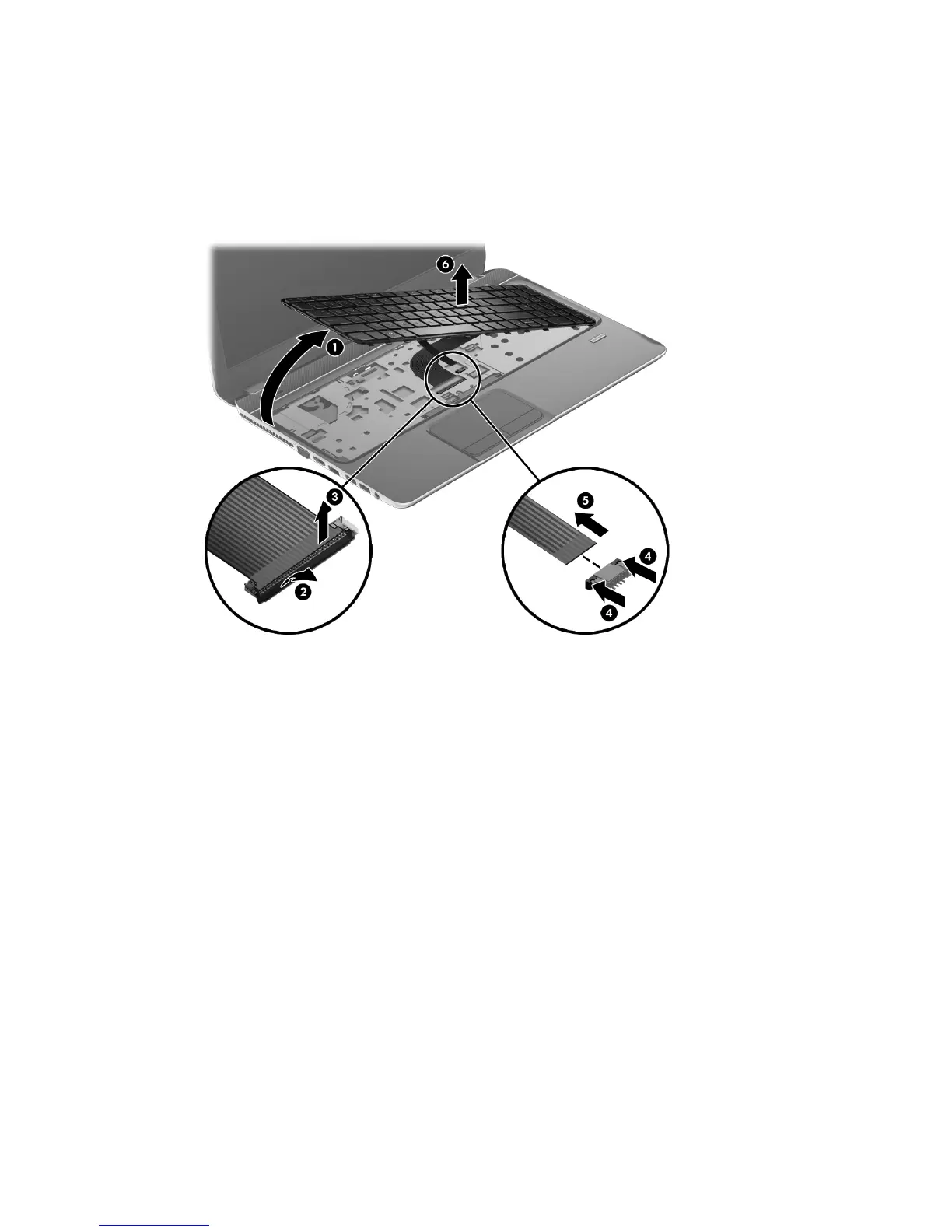

Release the zero insertion force (ZIF) connector (2) to which the keyboard cable is attached, and
then disconnect the keyboard cable (3) from the system board.
9. Release the ZIF connector (4) to which the keyboard backlight cable is attached, and then
disconnect the keyboard backlight cable (5) from the system board.
10. Remove the keyboard (6).
Reverse this procedure to install the keyboard.
