3.

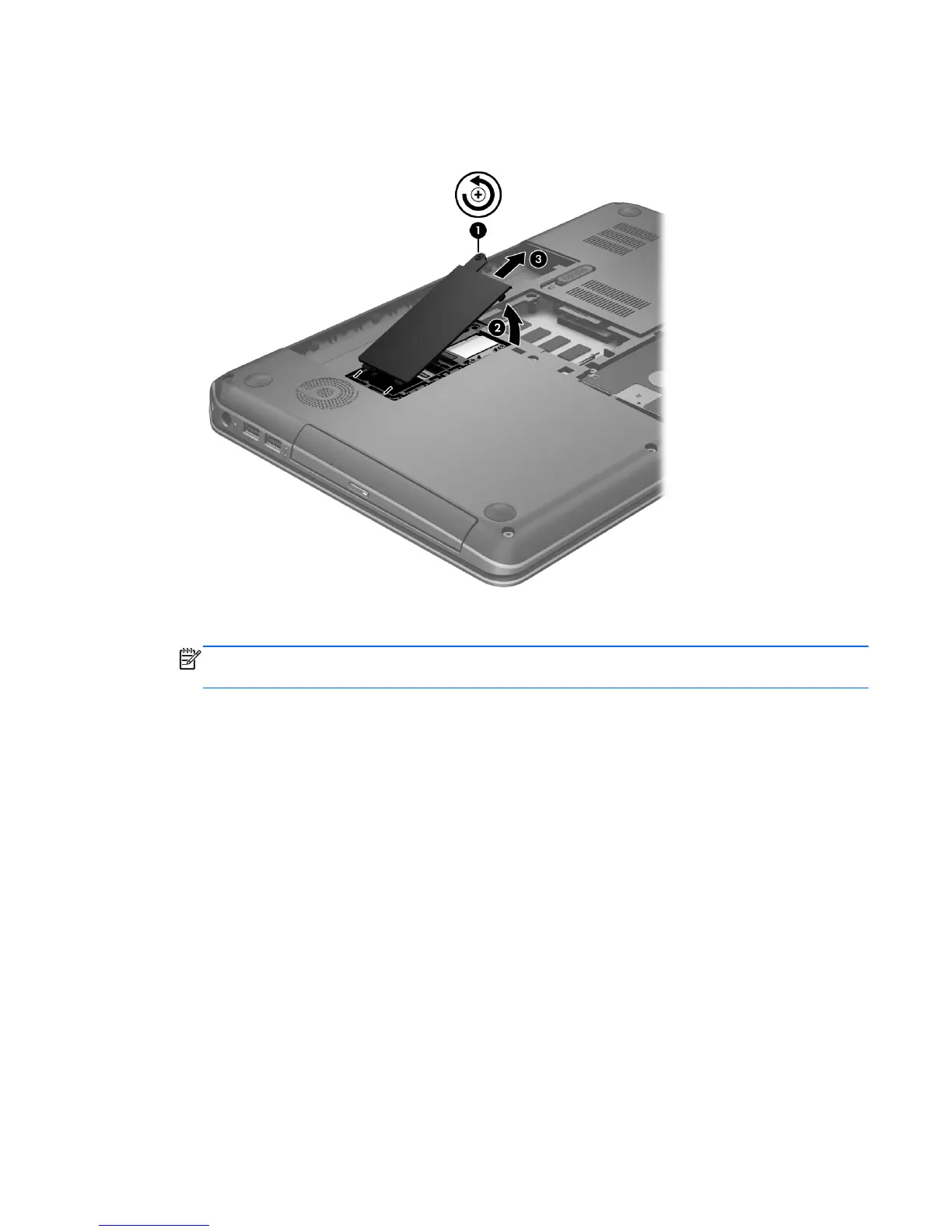

Remove the wireless module compartment cover (3) by sliding it away from the computer at an
angle. The wireless module compartment cover is available in the Service Cover Kit, spare part
number 686920-001.
4. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The #1 WLAN antenna cable is connected to the WLAN module #1 terminal. The #2
WLAN antenna cable is connected to the WLAN module #2 terminal.
5. Remove the two Phillips PM2.0×3.0 screws (2) that secure the WLAN module to the
base enclosure. (The WLAN module tilts up.)
Component replacement procedures
63
