4.

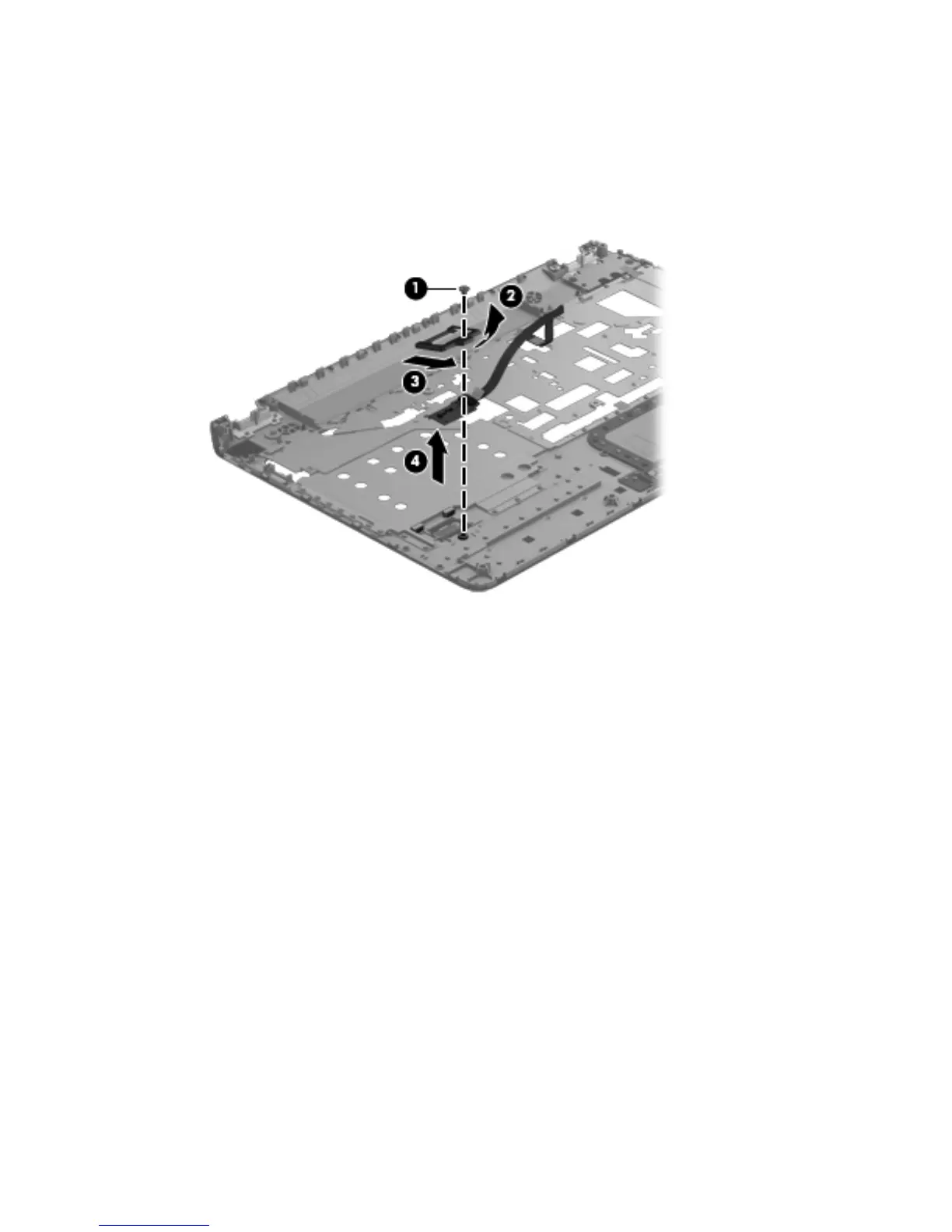

Remove the Phillips PM2.5×3.5 screw (1) that secures the fingerprint reader board and bracket to
the top cover.
5. Lift the front edge of the fingerprint reader board bracket (2) until it rests at an angle, and then
remove the bracket (3) by sliding it up and forward at an angle.
6.
Remove the fingerprint reader board (4).
Reverse this procedure to install the fingerprint reader board.
