20 Upgrading and Servicing Guide
Before You Begin
Observe the following requirements before removing and replacing the component:
This procedure requires a Phillips screwdriver.

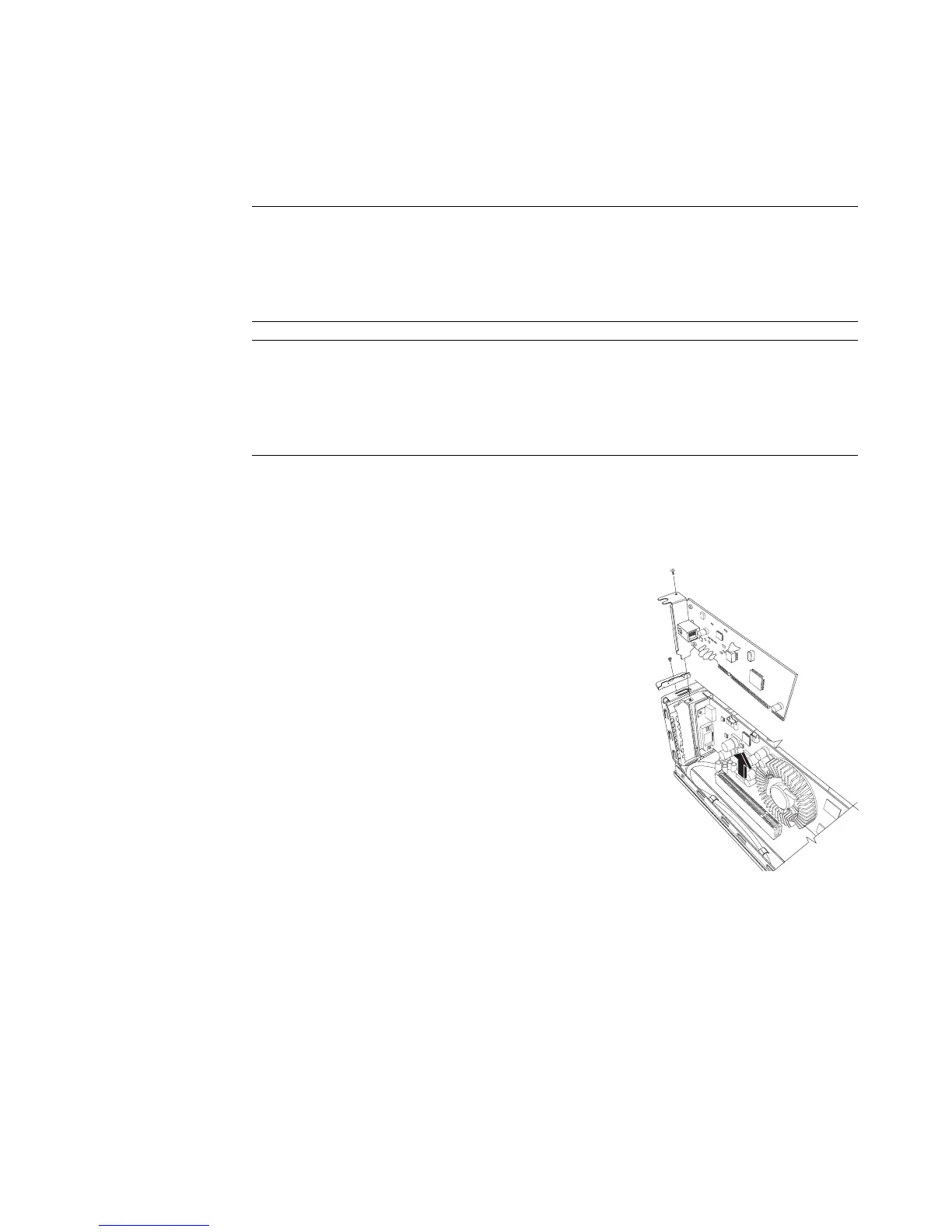

Removing a PCI Card
1 Prepare the computer and remove the computer
cover. Complete the procedures “Opening
the Computer” on page 2.
2 Inside the computer, locate the PCI card slot on the
motherboard.
3 Make a note of any internal cables attached to the
card, and then disconnect them.
4 Remove the screw on the modem card bracket
holder on the outside of the frame. Remove the
bracket holder.
5 Hold the card at the top, and carefully pull the card
straight out of the slot.
IMPORTANT: Due to the small computer size, you can only install a small, low-profile PCI
card of the same approximate size of the modem card. HP recommends that you install a
card with power consumption of 5 watts or less.
Not all low-profile cards will fit into the PCI slot. Some external connectors, especially
connectors located at the top of the card, may not fit properly into the back panel.
IMPORTANT: Due to the small computer size, you can only install a small, low-profile
PCI-E card of the same approximate size of the graphics card. HP recommends that you
install a card with power consumption of 25 watts or less.
Not all low-profile cards will fit into the PCI-E slot. Some external connectors, especially
connectors located at the top of the card, may not fit properly into the back panel.
