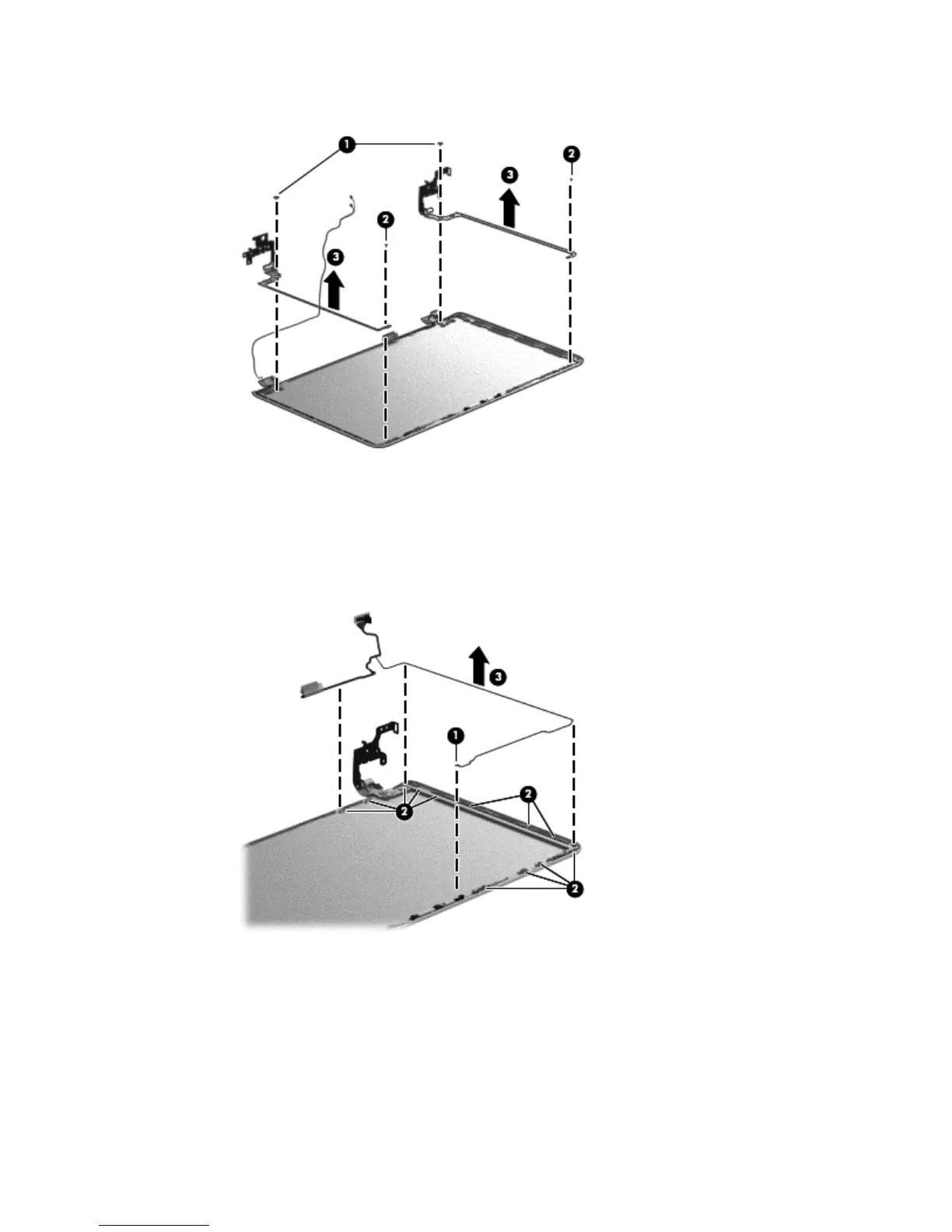

c. Remove the hinges and brackets (3) from the display enclosure.
7. If it is necessary to replace the display panel cable:
a. Release the display panel cable from the clips (1) and routing channel built into the
display enclosure.
b. Carefully release the cable from the channel guides (2) and remove the display panel cable
(3).
8. If it is necessary to replace the wireless antenna cables and transceivers:
a. Release the wireless antenna transceivers (1) from the display enclosure. (The wireless
antenna transceivers are attached to the display enclosure with double-sided tape.)
b. Release the wireless antenna cables from the clips (2) built into the display enclosure.
Component replacement procedures
99
