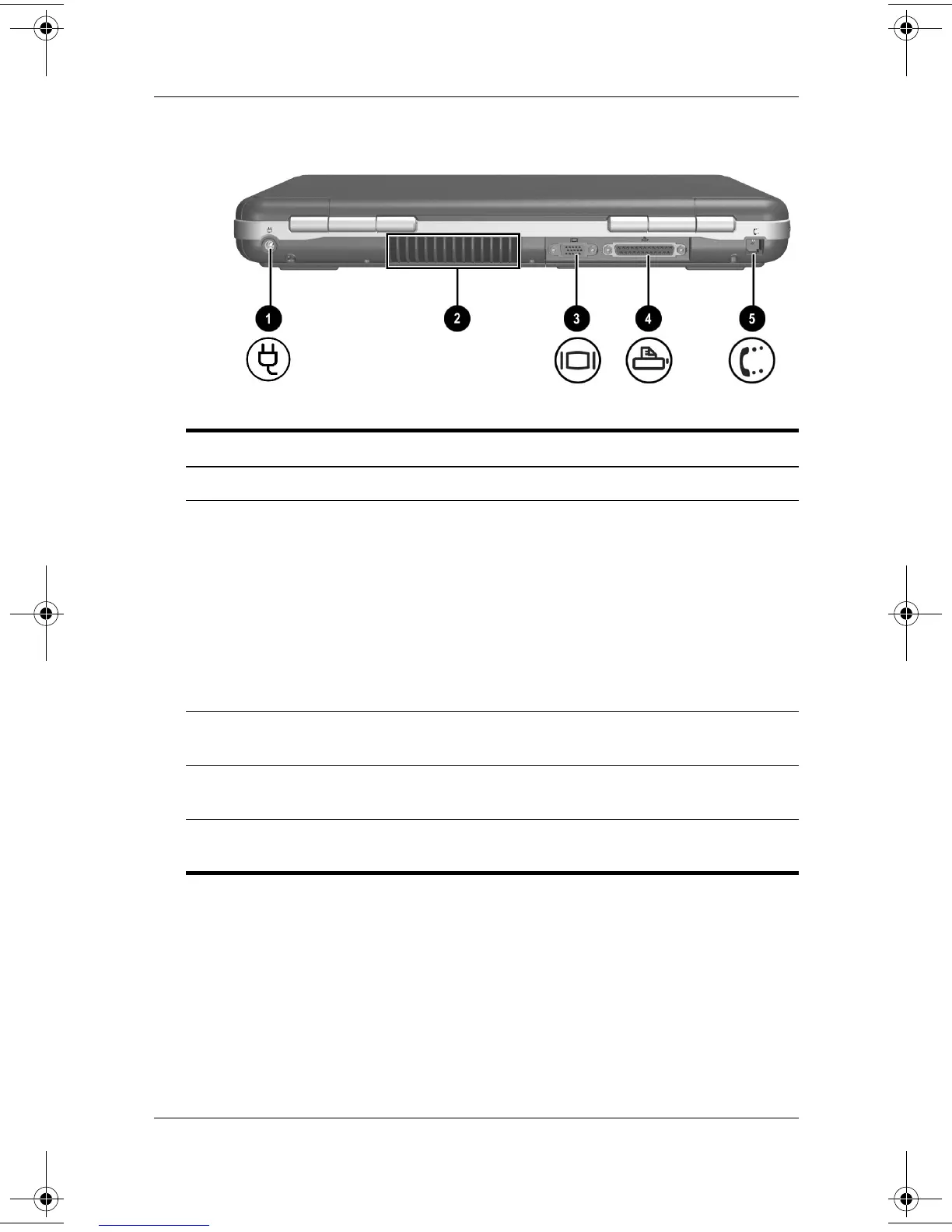

Component Description
1 DC power connector Connects an AC adapter.
2 Exhaust vent Allows airflow to cool internal
components. Additional vents are on
the bottom panel of the notebook.
Ä
To prevent overheating, do
not obstruct the vent. Do not
allow a hard surface, such as
an adjoining printer, or a soft
surface, such as bedding or
clothing, to block airflow.
3 External monitor connector Connects an optional external monitor
or overhead projector.
4 Parallel connector Connects an optional parallel device,
such as a printer.
5 RJ-11 jack (select models) Connects the modem cable. (Select
models.)
335398-001.book Page 19 Friday, August 29, 2003 1:03 PM
