(continued)
IL:_bel
10
11
12
13
14
15
16
[Seaeriptior_
CD/DVD access door
Print cartridge door
Glass
Lid
Rear door
Power connection*
Rear USB port
Use only with the power adapter supplied by HP.
_,_

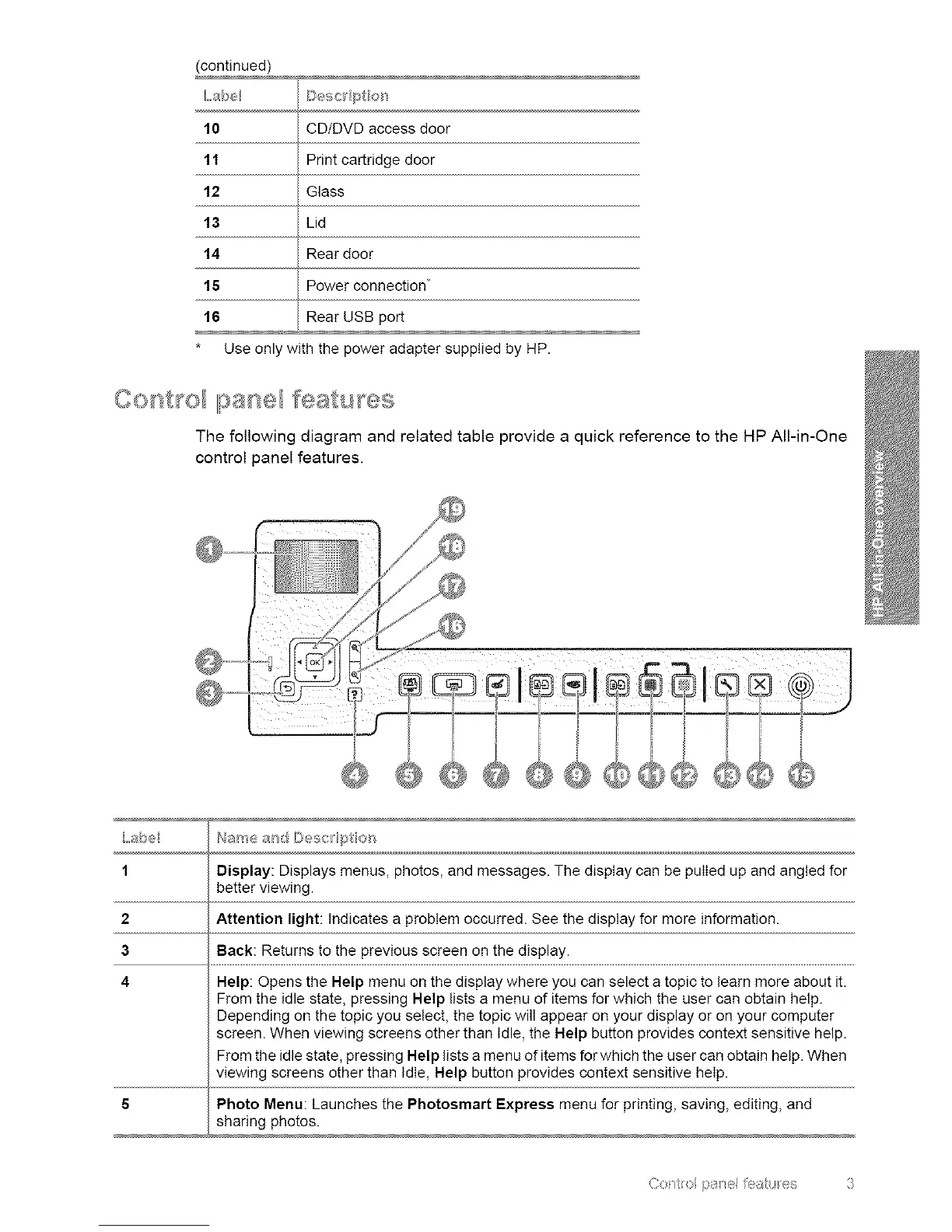

The following diagram and related table provide a quick reference to the HP All-in-One
control panel features.
Label Hame arid Description
1 Display: Displays menus, photos, and messages. The display can be pulled up and angled for
better viewing.
2 Attention light: Indicates a problem occurred. See the display for more information.
3 Back: Returns to the previous screen on the display.
4 Help: Opens the Help menu on the display where you can select a topic to learn more about it.
From the idle state, pressing Help lists a menu of items for which the user can obtain help.
Depending on the topic you select, the topic will appear on your display or on your computer
screen. When viewing screens other than Idle, the Help button provides context sensitive help.
From the idle state, pressing Help lists a menu of items for which the user can obtain help. When
viewing screens other than Idle, Help button provides context sensitive help.
6 Photo Menu: Launches the Photosmart Express menu for printing, saving, editing, and
sharing photos.
