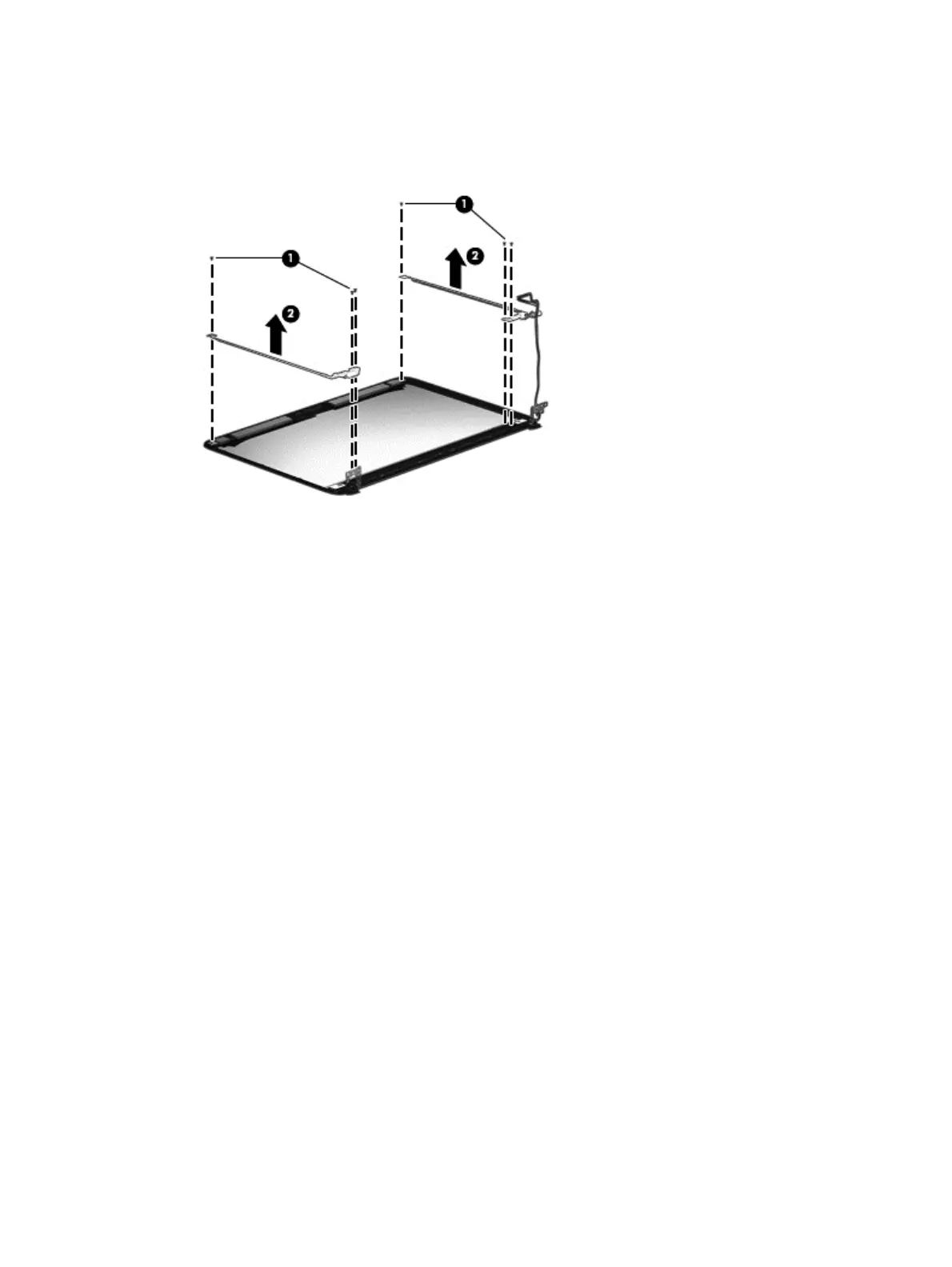

19. If it is necessary to replace the display hinges, remove the 6 Phillips PM2.5×3.0 screws (1) that
secure the display hinges to the display enclosure, and then lift the hinges from the enclosure (2).
Display hinges are available using spare part number 731996-001.
The display rear cover kit, spare part number 731995-001, includes WLAN and WWAN
antennas and transceivers.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures
69
