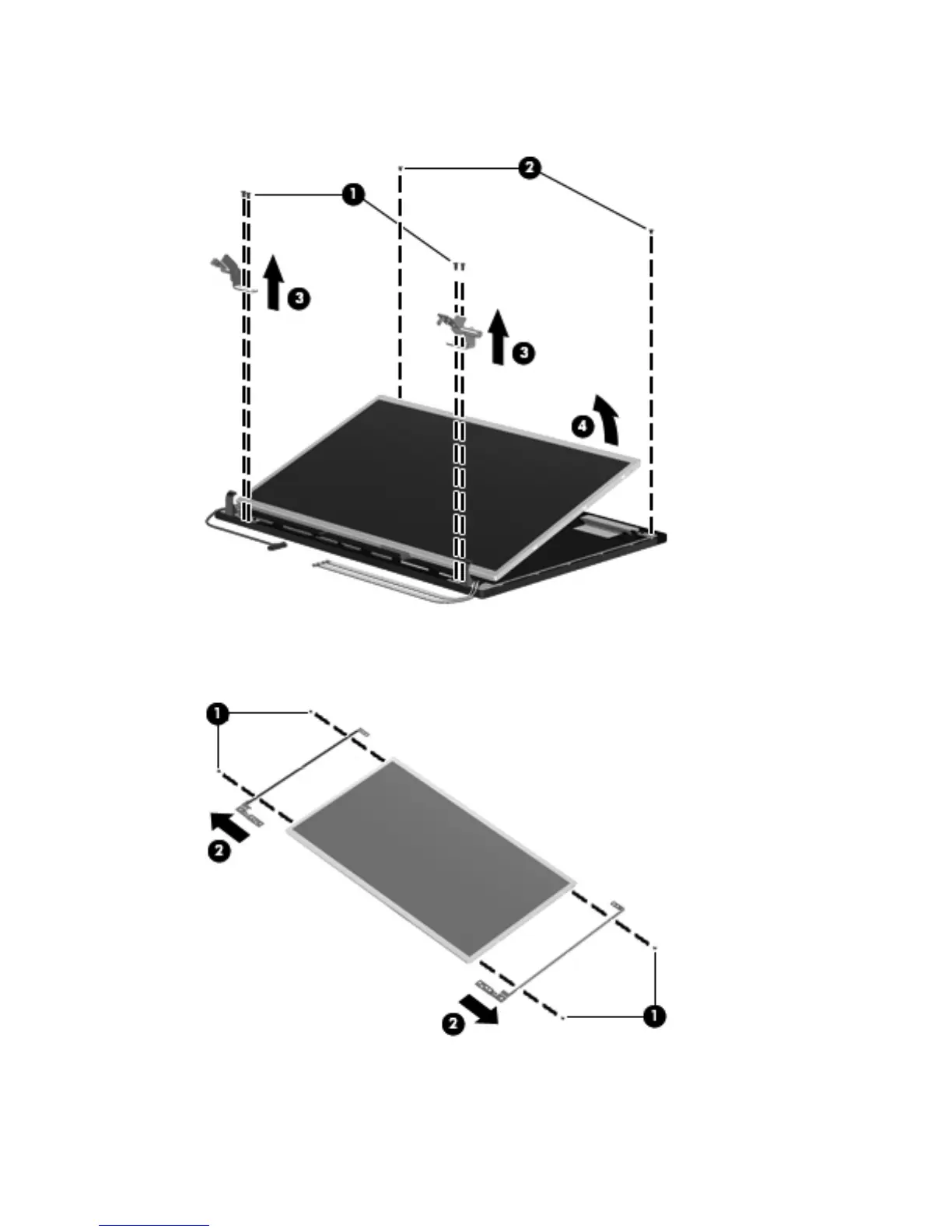

8. Lift the top of the display panel away from the back cover (3), and then remove the display panel
(4).
9. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display hinges to the display
panel, and then remove the display hinges (2). The left and right display hinges are available in
the display hinge kit.
10. If it is necessary to replace the display/webcam cable, turn the display panel upside-down and
peel back the tape that secures the display cable to the display panel (1), and then release the
connector locking bar (2).
Component replacement procedures 95
