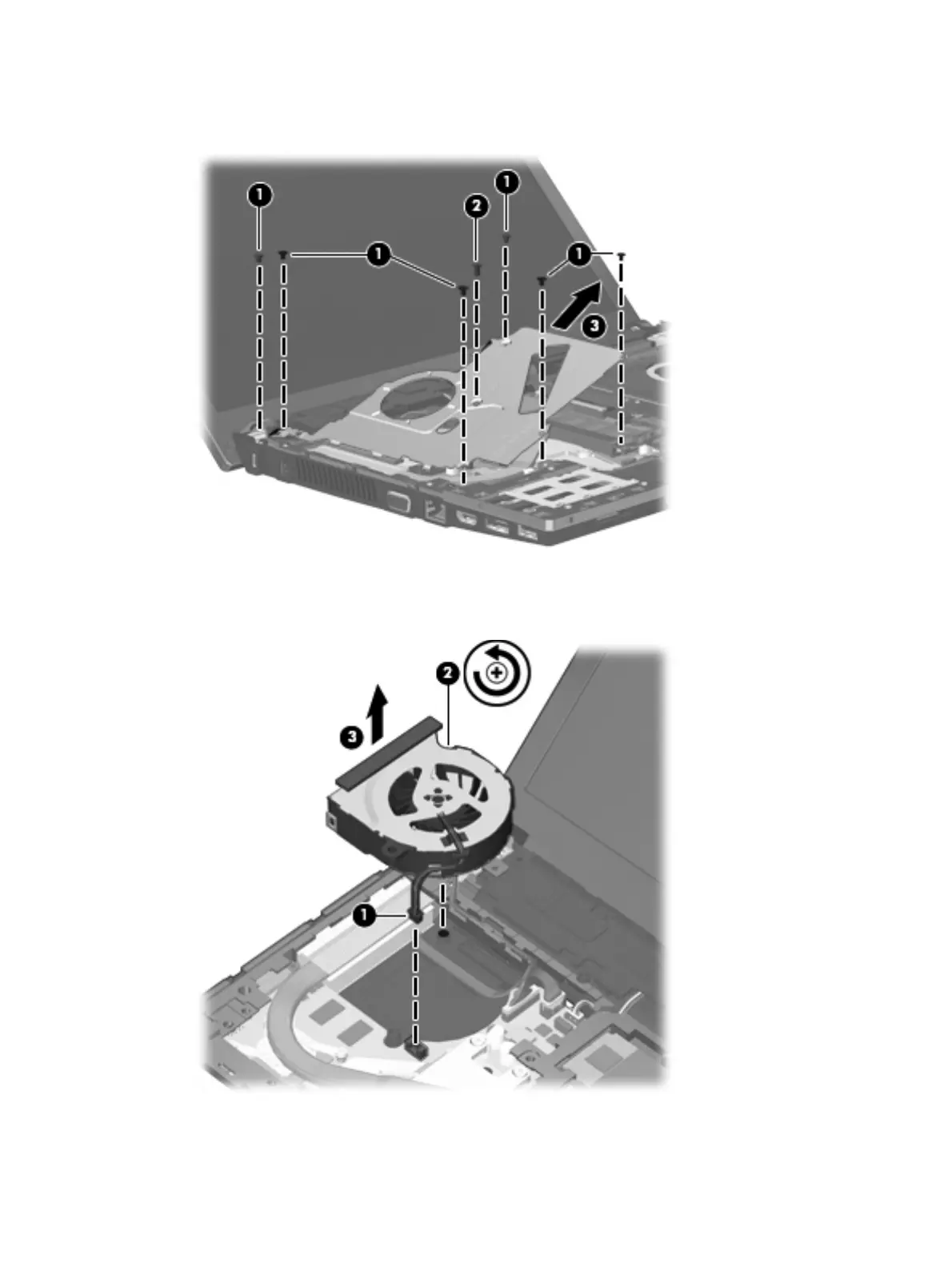

4.
Lift the right edge
of the heat shield to
disengage t
he tabs on t
he left s
ide of th
e heat sh
ield from
the top co
ver, and then remo
ve the heat shield
(3)
.
5.
Disconnect the fan cable from the system board
(1)
.
6.
Loosen the 2.0×5.0 captive screw from the
system board, and then remove the fan
(3)
.
Component replacement
procedures
71
78
80
Table of Contents
Default Chapter
1
Maintenance and Service Guide
1
Table of Contents
5
1 Product Description
9
2 External Component Identification
17
Identifying Hardware
17
Top Components
18
Touchpad
18
Lights
19
Buttons, Speakers, Switches, and Fingerprint Reader (Select Models Only)
20
Keys
21
Front Components
22
Right-Side Components
23
Left-Side Components
24
Bottom Components
25
Display
26
Wireless Antennas (Select Models Only)
27
Additional Hardware Components
28
3 Illustrated Parts Catalog
29
Serial Number Label Location
29
Computer Major Components
30
Display Assembly Components
36
Plastics Kit
38
Cable Kit
39
Mass Storage Devices
40
Miscellaneous Parts
41
Sequential Part Number Listing
42
4 Removal and Replacement Procedures
47
Preliminary Replacement Requirements
47
Tools Required
47
Service Considerations
47
Plastic Parts
47
Cables and Connectors
48
Drive Handling
48
Grounding Guidelines
49
Electrostatic Discharge Damage
49
Packaging and Transporting Guidelines
50
Workstation Guidelines
50
Equipment Guidelines
51
Component Replacement Procedures
52
Serial Number Label
52
Computer Feet
52
Battery
53
Sim
54
Switch Cover
55
Keyboard
57
Memory Module
59
Optical Drive
61
Power Button Board
63
Speakers
64
Palm Rest
66
Hard Drive
69
RTC Battery
72
Shut down the Computer. if You Are Unsure Whether the Computer Is off or in Hibernation, Turn the Computer On, and then Shut It down through the Operating System
72
Disconnect All External Devices Connected to the Computer
72
WLAN Module
73
Disconnect the Power from the Computer by First Unplugging the Power Cord from the AC Outlet and then Unplugging the AC Adapter from the Computer
73
Remove the Battery (See Battery
74
Remove the Following Components
74
Switch Cover
74
Keyboard
74
Palm Rest
74
Position the Computer Right-Side up with the Front Toward You
74
Bluetooth Module
76
Heat Sink and Fan
78
Processor
82
Power Connector Cable
84
Display Assembly
85
Top Cover
93
Modem Module
95
System Board
97
USB Connector Board
99
Modem Module Cable
101
5 Computer Setup
103
Computer Setup in Windows 7
103
Starting Computer Setup
103
Using Computer Setup
103
Navigating and Selecting in Computer Setup
103
Restoring Factory Settings in Computer Setup
104
Computer Setup Menus
105
File Menu
105
Security Menu
106
System Configuration Menu
107
Computer Setup in Windows Vista and Windows XP
109
Starting Computer Setup
109
Using Computer Setup
109
Navigating and Selecting in Computer Setup
109
Restoring Factory Settings in Computer Setup
110
Computer Setup Menus
111
File Menu
111
Security Menu
112
Diagnostics Menu
113
System Configuration Menu
114
Computer Setup in Linux
116
Starting Computer Setup
116
Using Computer Setup
116
Navigating and Selecting in Computer Setup
116
Restoring Factory Settings in Computer Setup
117
Computer Setup Menus
117
File Menu
117
Security Menu
118
Diagnostics Menu
119
System Configuration Menu
120
6 Specifications
122
Computer Specifications
122
33.8-CM (13.3-In) Display Specifications
123
35.6-CM (14.0-In) Display Specifications
124
Hard Drive Specifications
125
DVD ROM Drive Specifications
126
DVD±RW Supermulti Double-Layer Drive with Lightscribe Specifications
127
Blu-Ray ROM with Lightscribe DVD±R/RW Supermulti DL Drive Specifications
128
System Resource Specifications
129
7 Backup and Recovery
130
Windows 7 Backup and Recovery
130
Backing up
130
Recovering
132
Backup and Recovery in Windows Vista
133
Overview
133
Backing up Your Information
133
Performing a Recovery
134
Using the Windows Recovery Tools
134
Using F11
135
Using a Windows Vista Operating System DVD (Purchased Separately)
136
Backup and Recovery in Windows XP
137
Overview
137
Backing up Your Information
137
Performing a Recovery
138
Recovering the Operating System and Programs
138
Recovering Your Information
138
Linux Backup and Recovery
139
8 Connector Pin Assignments
140
Audio-In (Microphone)
140
Audio-Out (Headphone)
141
External Monitor
142
Hdmi
143
Modem)
144
Network)
145
Universal Serial Bus
146
Esata/Usb
147
9 Power Cord Set Requirements
148
Requirements for All Countries and Regions
148
Requirements for Specific Countries and Regions
149
10 Recycling
150
Battery
150
Display
150
Index
156
Other manuals for HP ProBook 4325s
