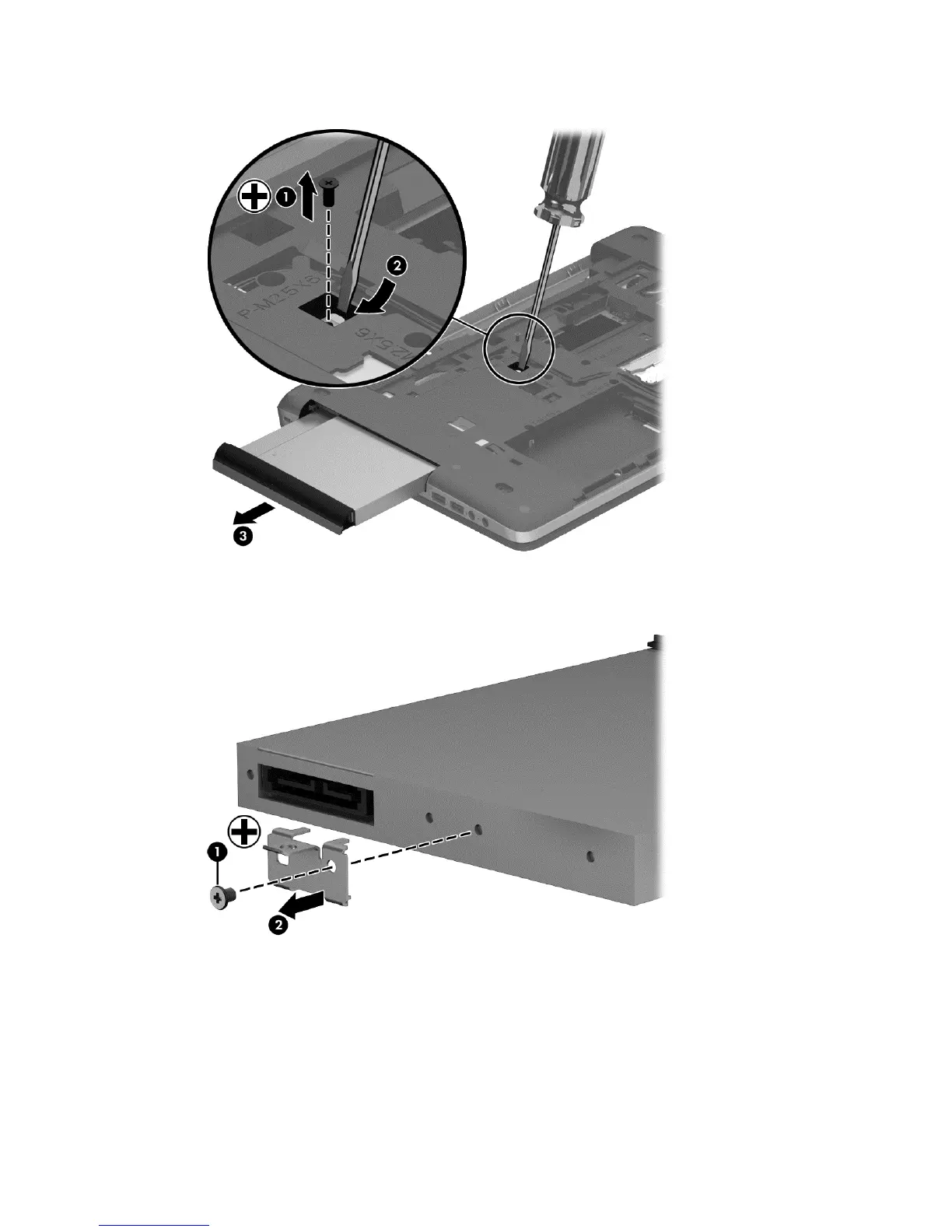

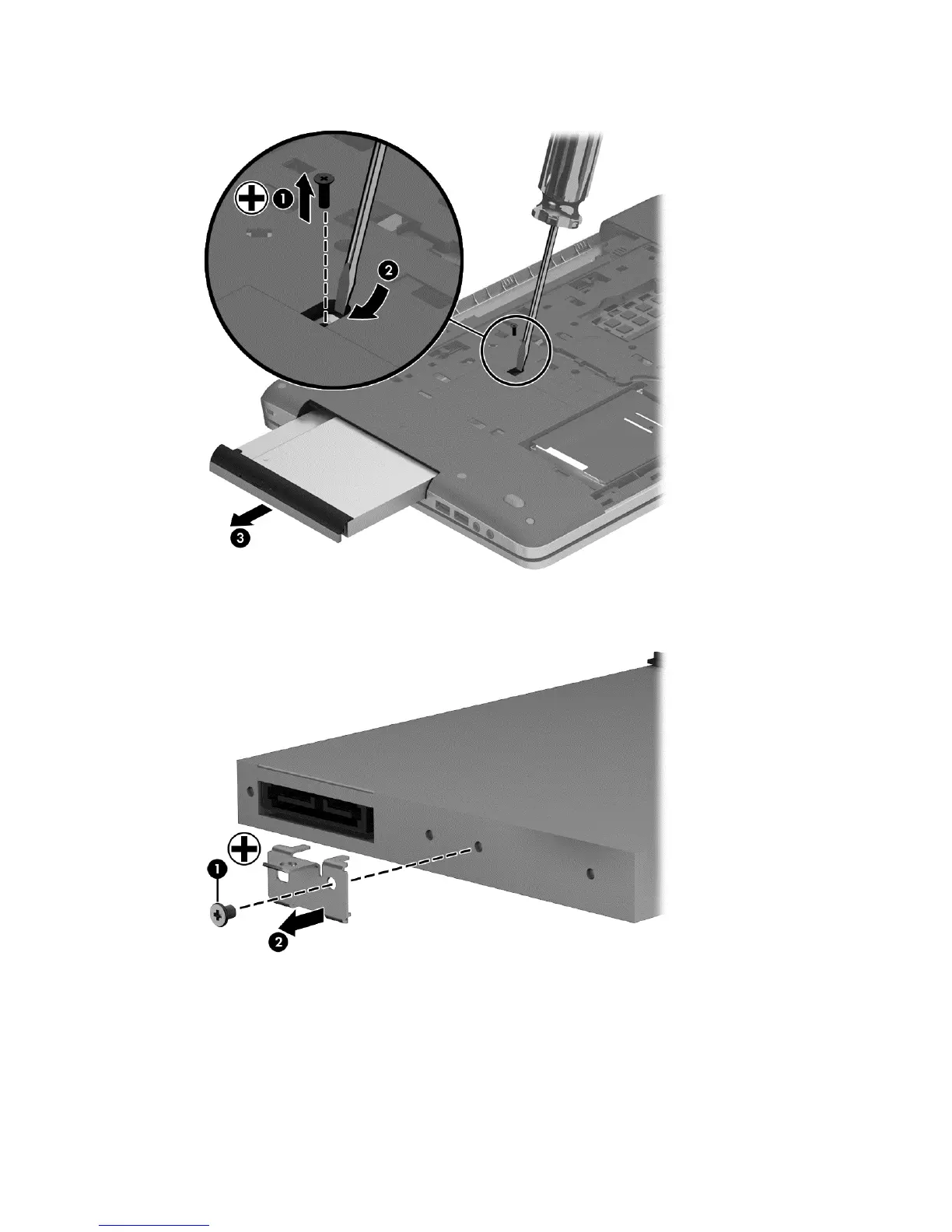

4. Remove the optical drive (3) from the computer.
5. To remove the bracket from the optical drive, remove the Phillips PM2.0×3.0 screw (1) that
secures the bracket to the drive, and then remove the bracket from the drive (2).
Reverse this procedure to install an optical drive.
Component replacement procedures
43
