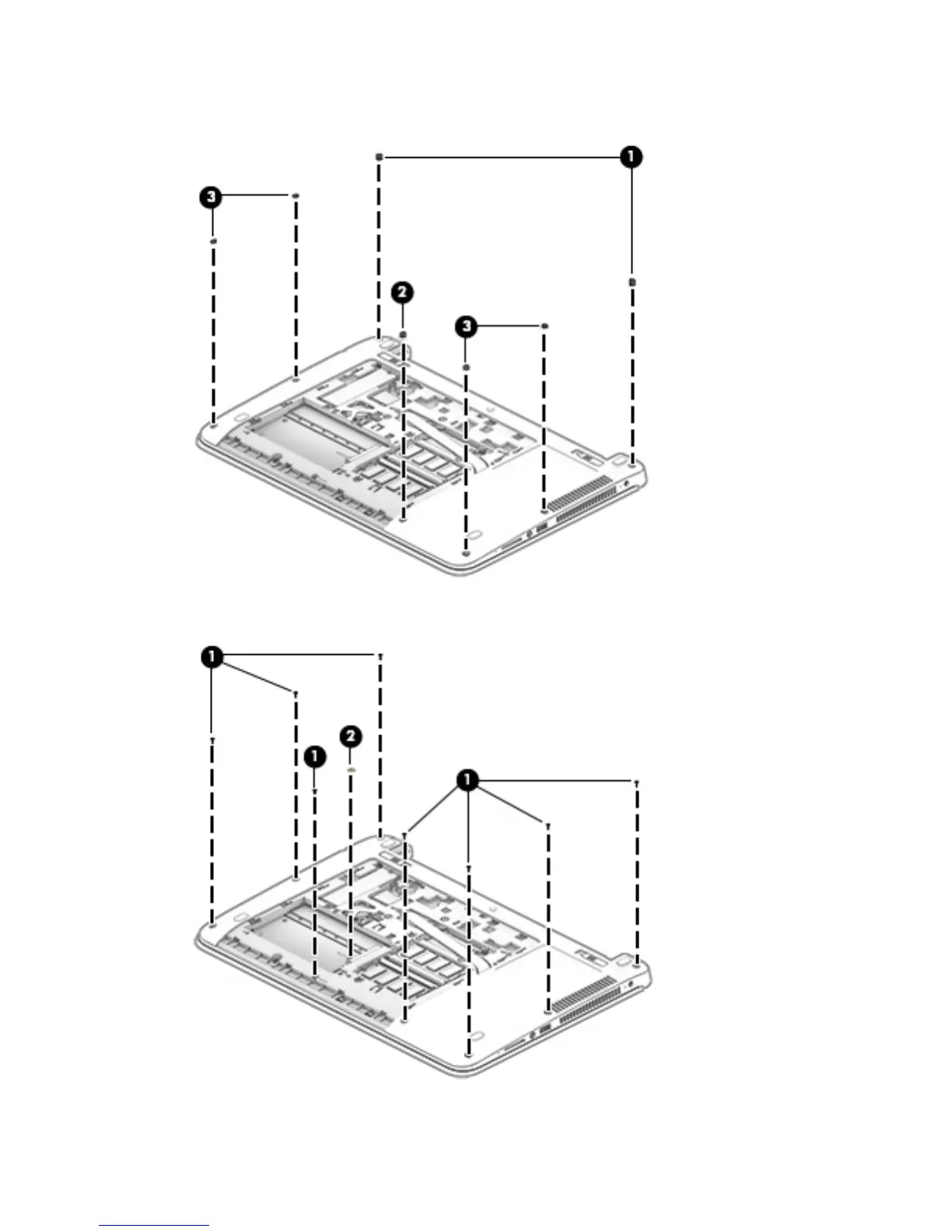

2. Remove the 2 large rubber screw covers on each side of the battery (1), 1 rubber screw cover near the
bottom, middle (2), and 4 small rubber screw covers from the sides of the computer (3).
3. Remove the 8 Torx T8M2.5×6.0 screws (1) and the Phillips PM2.5×2.5 screw (2) that secures the top
cover to the computer.
4. Position the computer upright and open it as far as possible.
48 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
