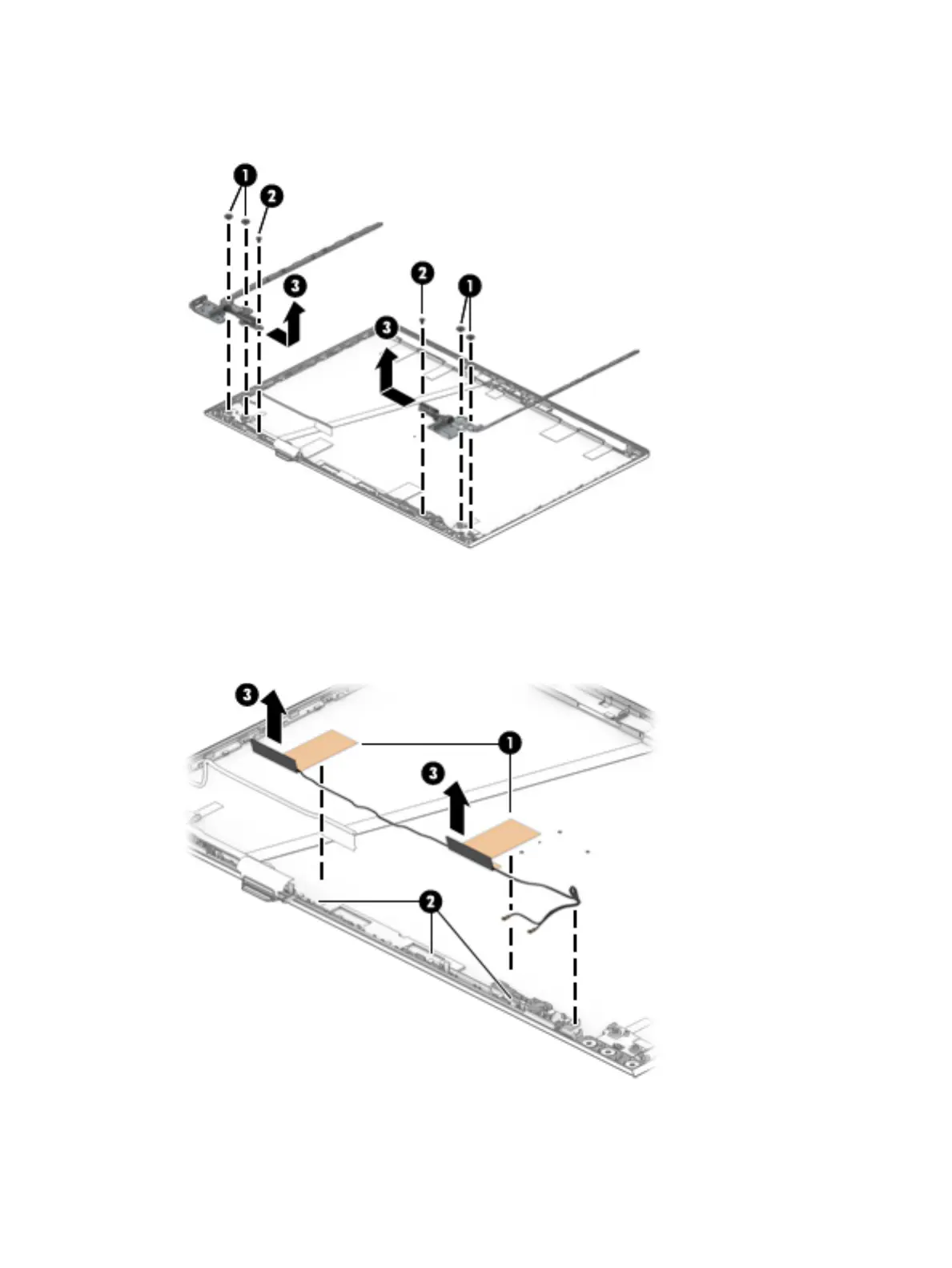

13. Slide the hinges toward the middle and then lift them from the enclosure (3).
The display hinges are available as spare part number L79189-001.
14. If it is necessary to replace the WLAN antennas, peel the antennas from the enclosure (1), remove the
cables from the clips in the bottom of the enclosure (2), and then remove the antennas and cables from
the enclosure (3).
WLAN antennas are available as spare part number L77283-001.
68 Chapter 5 Removal and replacement procedures for authorized service provider parts
