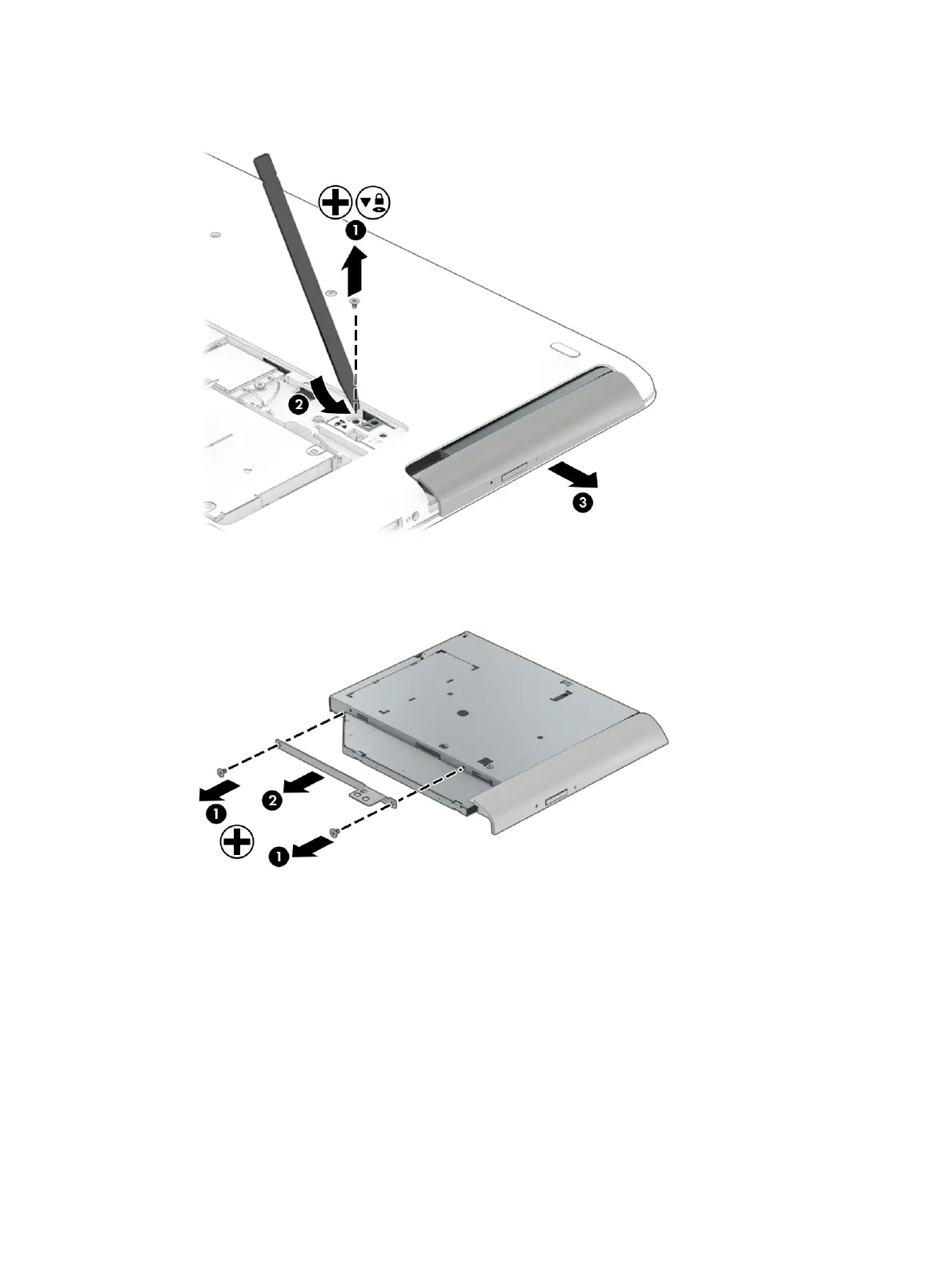

3. Remove the optical drive from the computer (3).
4. If it is necessary to remove the bracket from the optical drive, remove the two Phillips PM2.5×3.0 screws
(1) that secure the bracket to the rear of the drive, and then remove the bracket from the drive (2).
Reverse these procedures to install a optical drive.
Component replacement procedures 35
