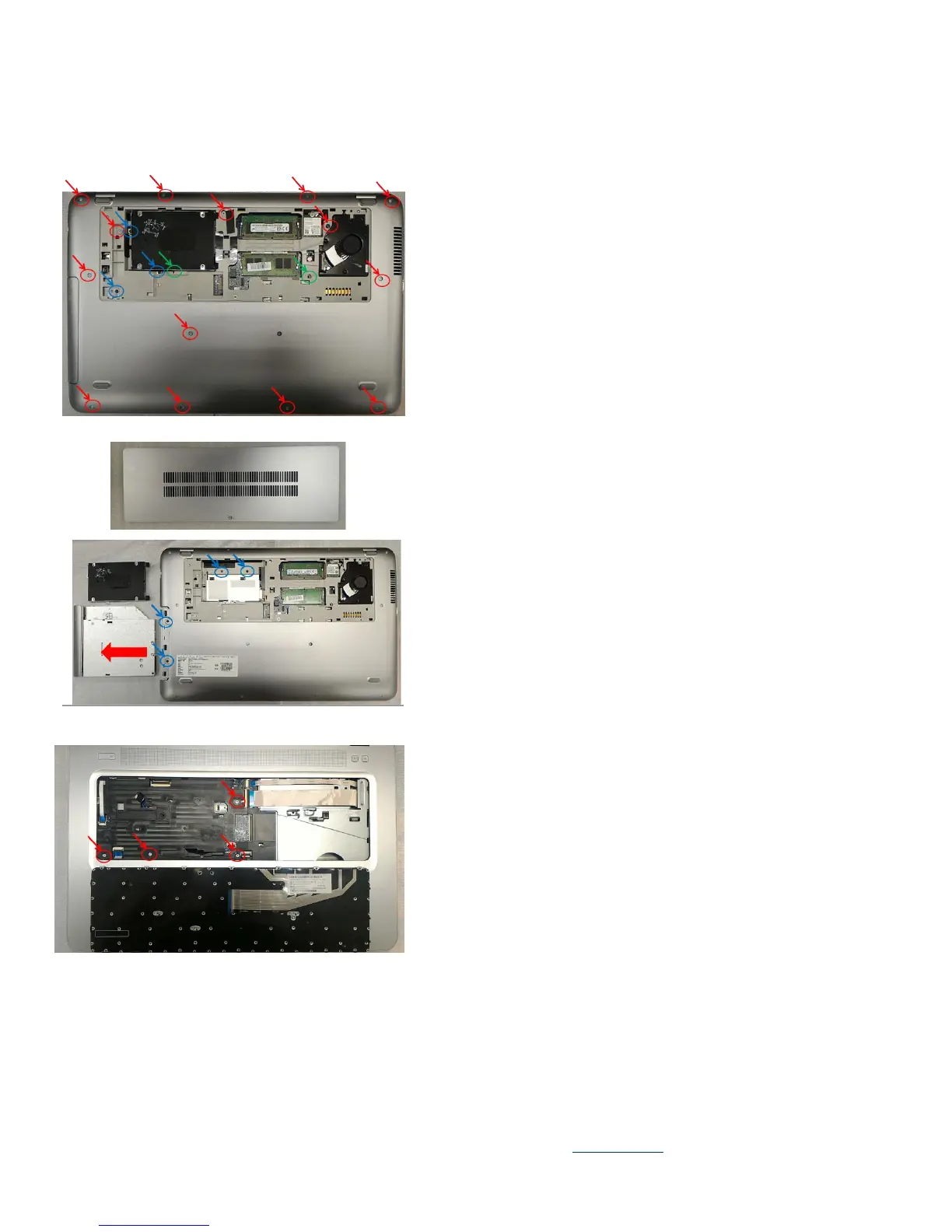

1. Remove screw*23 (T8*6*14pcs, M2.5*6*2pcs, M2 *3*3pcs) (M2*3*4pcs) to disassembly HDD, ODD, KB and base’s
screw.
2. Remove screw*4 to disassembly Top and Base.
3. Chassis part disassembly
