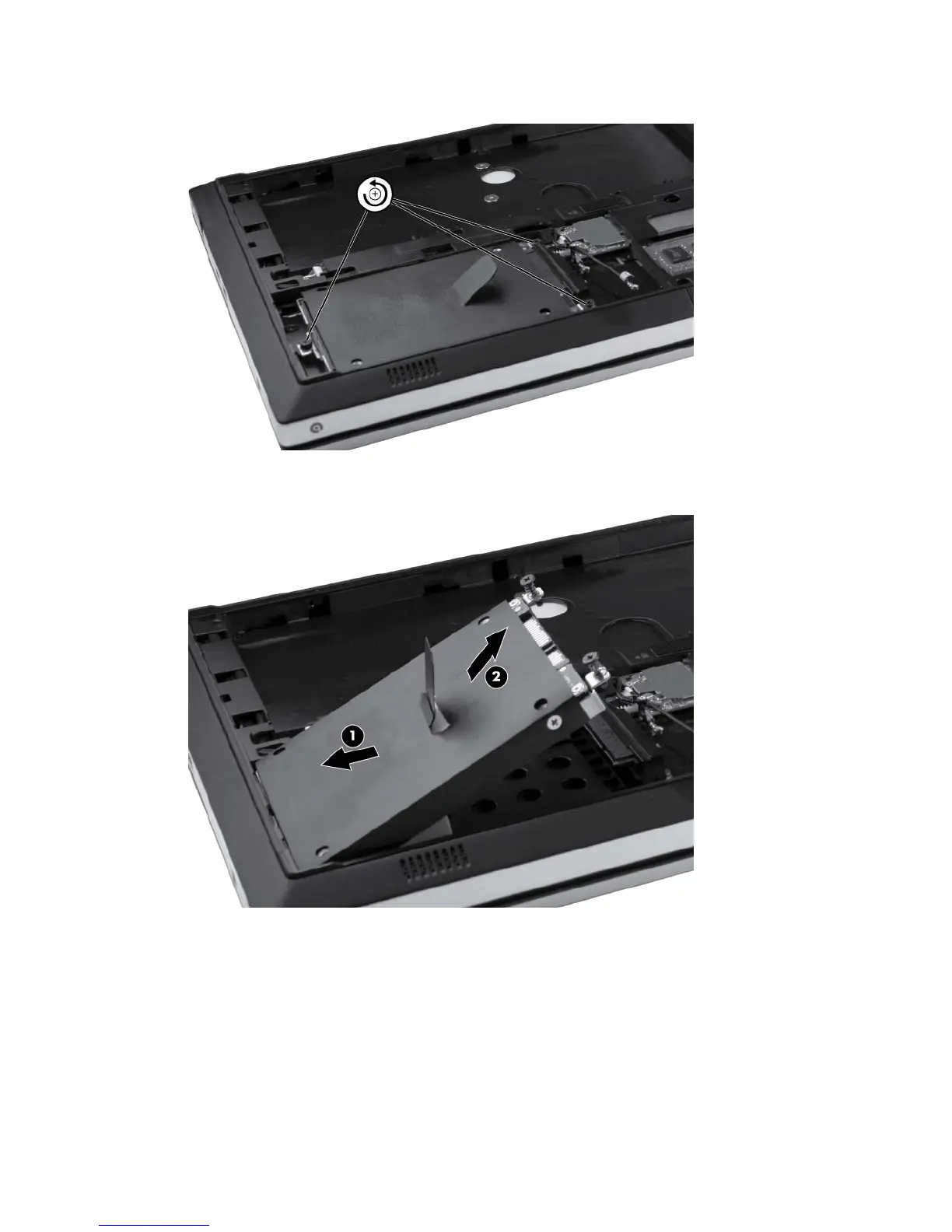

2. Loosen the three Phillips M10.0x2.5 captive screws that secure the hard drive to the computer.
3. Grasp the tab (1) on the hard drive, pull the hard drive to the left, and then remove the hard drive
(2) at an angle.
4. If it is necessary to replace the hard drive bracket, follow these steps:
a. Remove the four Phillips M3.0×3.0 hard drive bracket screws (1) from the sides of the hard
drive.
50 Chapter 4 Removal and replacement procedures
