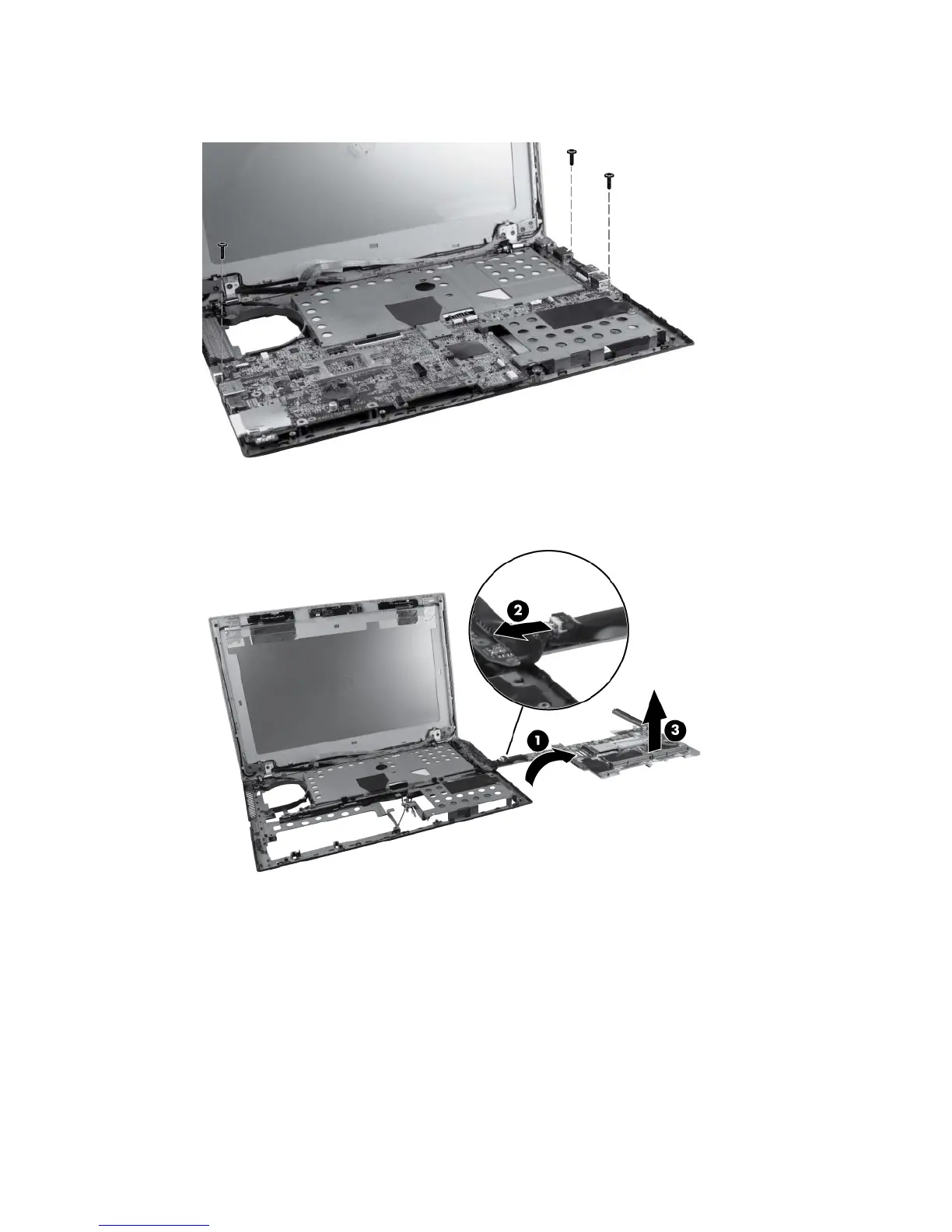

2. Remove the three T8 2.5x4.0 screws (marked with triangles) that secure the system board to the
base enclosure.
3. Rotate the system board to the right (1).
4. Disconnect the power cable (2) from the system board, and then remove the system board (3).
Reverse this procedure to install the system board.
Component replacement procedures 69
