g. Keyboard (see Keyboard on page 67)
h. Bottom cover (see
Bottom cover from top cover on page 70)
i. System board (see
System board on page 89)

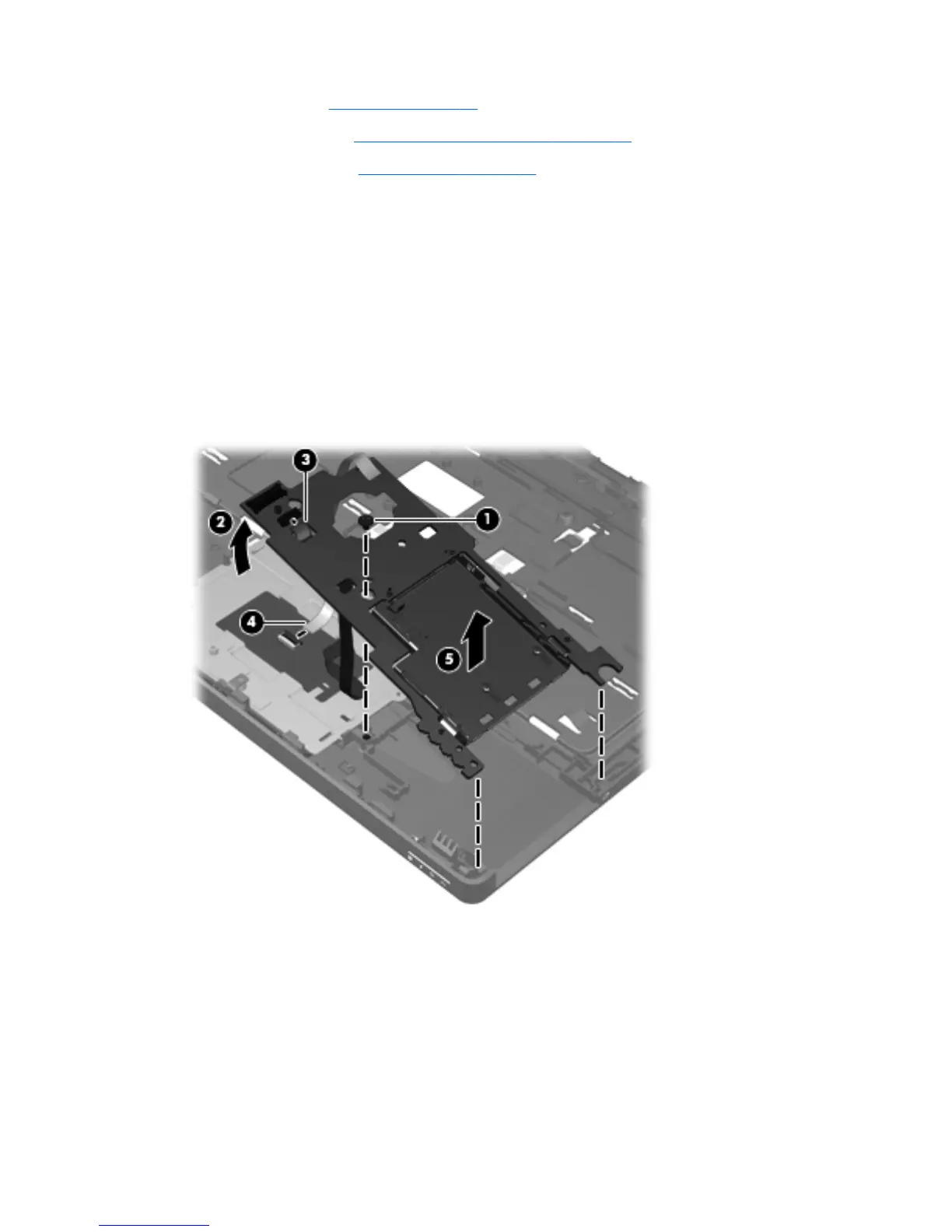

Remove the ExpressCard assembly:
1. Position the computer upside-down with the front toward you.
2. Remove the broadhead Phillips PM2.0×4.0 screw (1) that secures the assembly to the
computer.
3. Lift the board up at an angle to gain access to the cables underneath (2).
4. Disconnect the cable from the ExpressCard board (3).
5. Disconnect the cable (4) from the Touchpad board.
6. Lift the assembly straight up and off the computer (5).
Reverse this procedure to install the ExpressCard assembly.
