h. Keyboard (see Keyboard on page 67)
i. Bottom cover (see
Bottom cover from top cover on page 70)

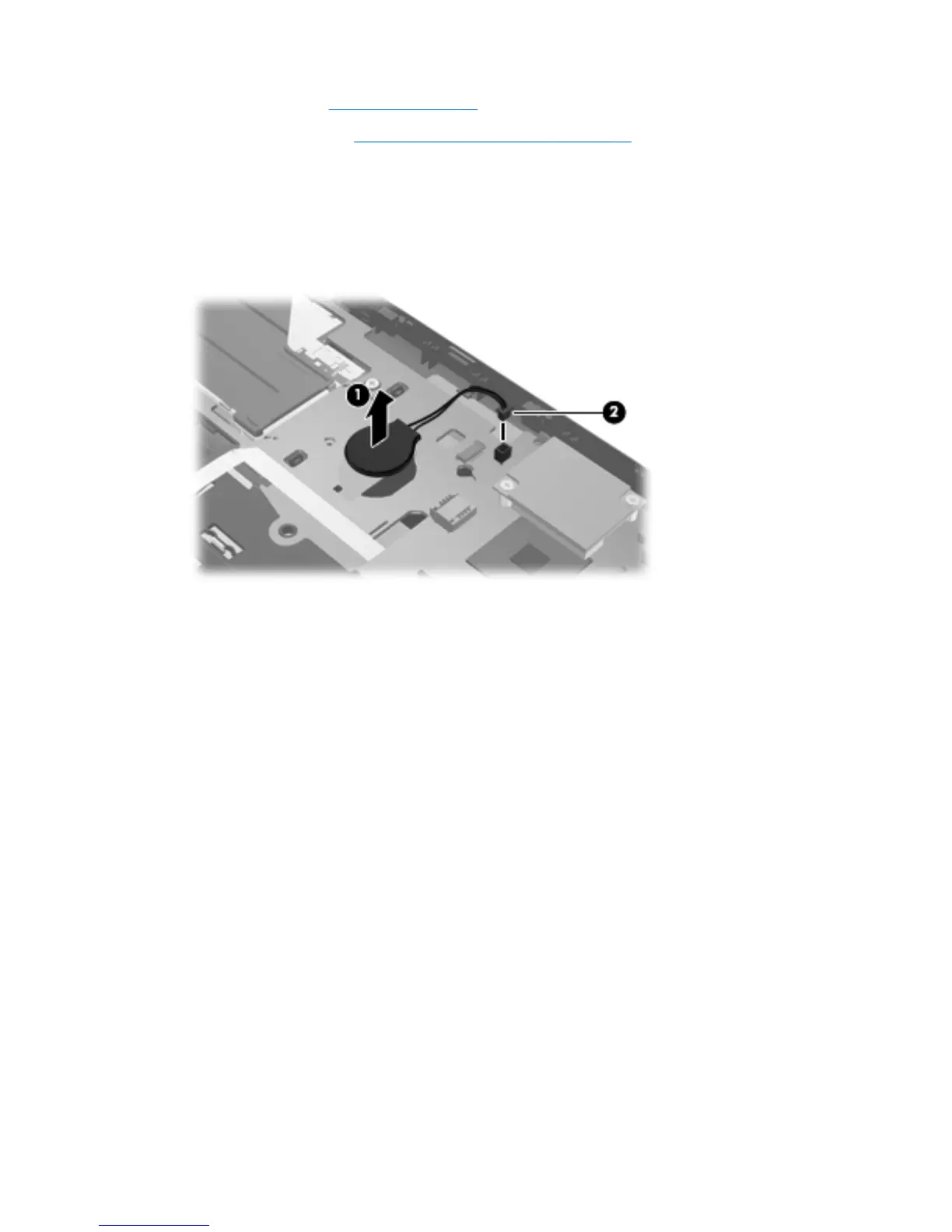

Remove the RTC battery:
1. Position the computer upside-down, with the front toward you.
2. Pull upward to disengage the battery from the computer (1).
3. Disconnect the battery cable from the system board (2).
Reverse this procedure to install the RTC battery.
74 Chapter 4 Removal and replacement procedures
