Removal and replacement procedures
Maintenance and Service Guide 4–49

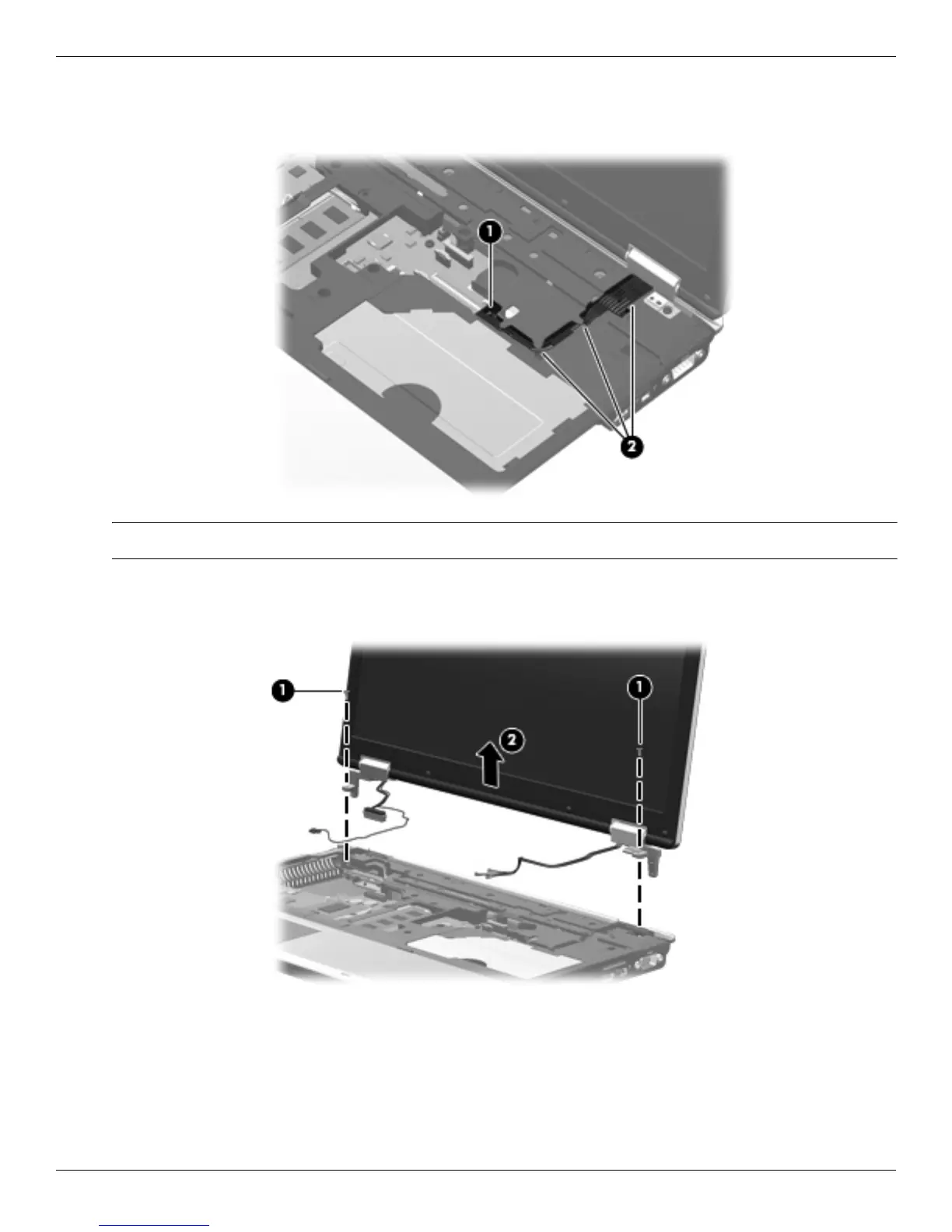

9. Release the wireless antenna cables from the opening in the top cover 1.
10. Remove the wireless antenna cables from the clips 2 and routing channel built into the top cover.
Ä
CAUTION: Support the display assembly when removing the following screws. Failure to support the display assembly can
result in damage to the display assembly and other computer components.
11. Remove the two slotted Torx T8M2.5×11.0 screws 1 that secure the display assembly to the base enclosure.
12. Lift the display assembly 2 straight up and remove it.
