HP ProBook 6570b Maintenance And Service Guide

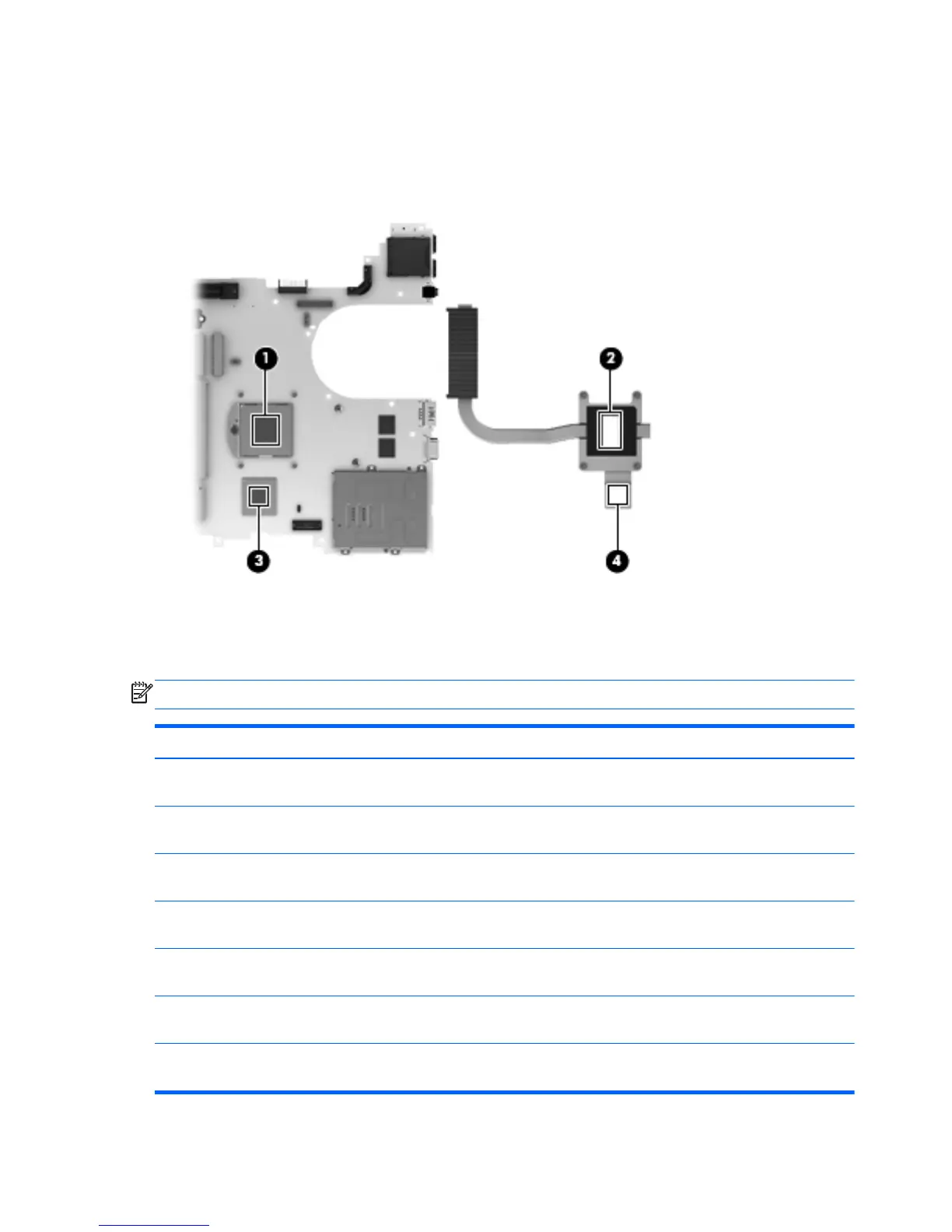

The following illustration shows the replacement thermal material locations on a computer model
equipped with a graphics subsystem with UMA memory.
●
Thermal paste is used on the processor (1) and the heat sink section (2) that services it
●
Thermal paste is used on the PCH chip (3) and the heat sink section (4) that services it
Reverse this procedure to install the heat sink.
Processor
NOTE: The processor spare part kit includes replacement thermal material.
Description Spare part number
Intel Quad Core i7-3740QM 2.70-GHz processor (SC turbo up to 3.70-GHz; 1600-MHz FSB,
6.0-MB L3 cache, 45 W) for use only on HP EliteBook 8570p Notebook PC computer models
702840-001
Intel Quad Core i7-3720QM 2.60-GHz processor (SC turbo up to 3.60-GHz; 1600-MHz FSB,
6.0-MB L3 cache, 45 W) for use only on HP EliteBook 8570p Notebook PC computer models
681283-001
Intel Quad Core i7-3630QM 2.40-GHz processor (SC turbo up to 3.40-GHz; 1600-MHz FSB,
6.0-MB L3 cache, 45 W) for use only on HP EliteBook 8570p Notebook PC computer models
702081-001
Intel Quad Core i7-3610QM 2.30-GHz processor (SC turbo up to 3.30-GHz; 1600-MHz FSB,
6.0-MB L3 cache, 45 W) for use only on HP EliteBook 8570p Notebook PC computer models
680646-001
Intel Dual Core i7-3540M 3.00-GHz processor (SC turbo up to 3.70-GHz; 1600-MHz FSB, 4.0-
MB L3 cache, 45 W) for use on all computer models
710787-001
Intel Dual Core i7-3520M 2.90-GHz processor (SC turbo up to 3.60-GHz; 1600-MHz FSB, 4.0-
MB L3 cache, 35 W) for use on all computer models
681954-001
Intel Dual Core i5-3380M 2.90-GHz processor (SC turbo up to 3.60-GHz; 1600-MHz FSB, 3.0-
MB L3 cache, 35 W) for use on all computer models
708762-001
130 Chapter 4 Removal and replacement procedures

HP ProBook 6570b Specifications

General

Bus type	DMI
Stepping	L1
Tjunction	90 °C
Processor cache	3 MB
Processor cores	2
Processor model	i3-3110M
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-3100 Mobile Series
Processor socket	BGA 1023
Processor threads	4
Processor codename	Ivy Bridge
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	24
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel HM76 Express
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
HDD speed	7200 RPM
HDD interface	SATA II
Storage media	HDD
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	320 GB
Compatible memory cards	MMC, SD
Number of HDDs installed	1
Display diagonal	15.6 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
LightScribe	-
Intel segment tagging	Enterprise
Ethernet interface type	Gigabit Ethernet
On-board graphics card ID	0x166
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
Pointing device	Touchpad
Operating system installed	Windows 7 Professional
Form factor	Clamshell
Product color	Black
Country of origin	China
Battery capacity	55 Wh
Battery life (max)	7.25 h
Number of battery cells	6
AC adapter power	65 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	ENERGY STAR
Processor code	SR0N2
Processor ARK ID	65700
Processor package size	37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	251 mm
Width	374 mm
Height	34 mm
Weight	2510 g
