HP ProBook 6570b Maintenance And Service Guide

Service cover
NOTE: The service cover is included in the Plastics Kit, spare part numbers 641190-001 (for use only
on HP EliteBook 8570p Notebook PC computer models) and 646971-001 (for use only on HP
EliteBook 6570B Notebook PC computer models). The service cover included in the Plastics Kits
includes a “made in China” label.
The service cover is also available using the following spare part numbers for regional configure to
order (RCTO) circumstances:
●
670434-001—regional configure to order (RCTO) with “made in America” or “made in Mexico”
label
●
671461-001—RCTO with “made in Japan” label
Before removing the service cover, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 81).

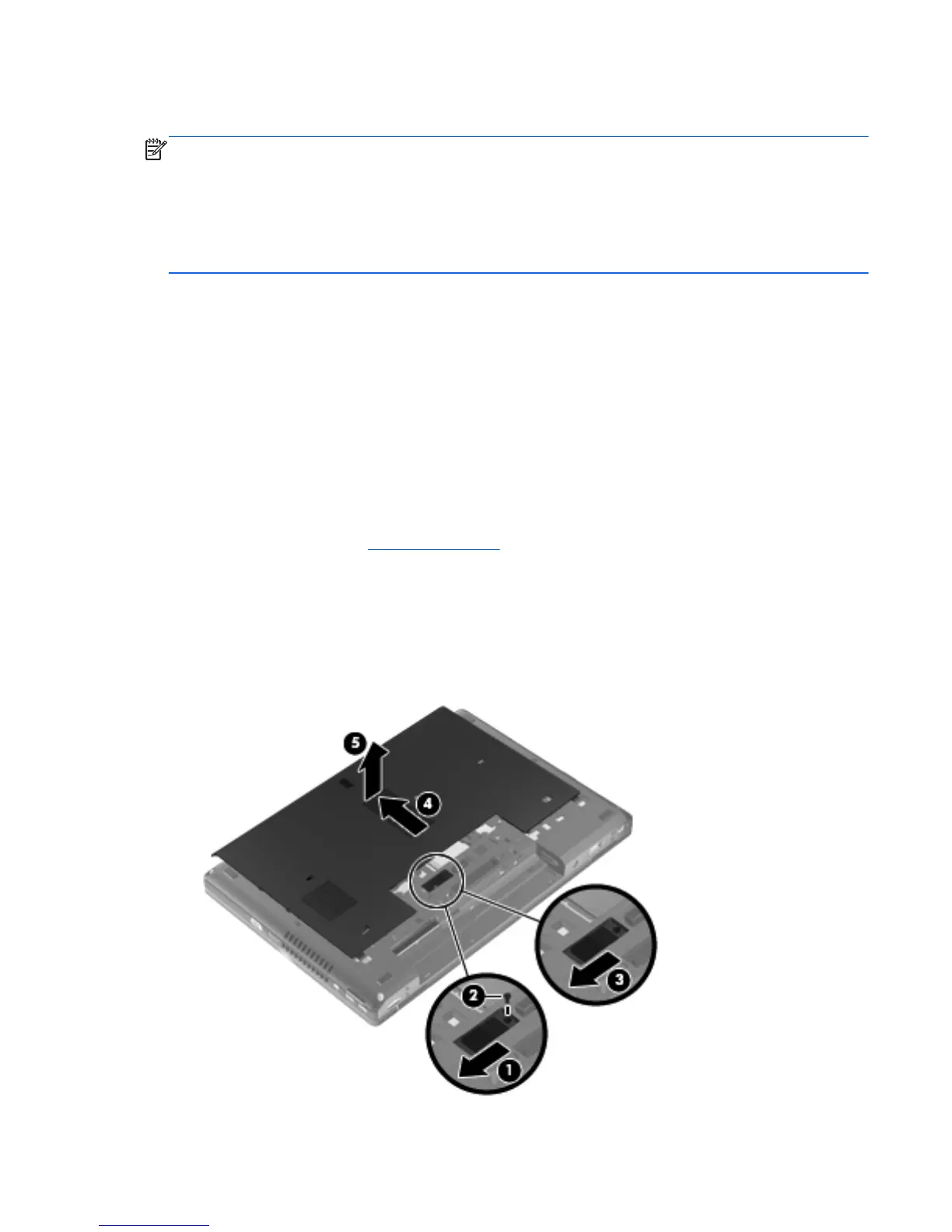

Remove the service cover:
1.
Slide the release latch (1) and remove the locking screw (if installed) (2).
2.
Slide the release latch (3) to disengage the door from the computer.
3.
Slide the door toward the front of the computer (4), and then lift the door off the computer (5).
Component replacement procedures
83

HP ProBook 6570b Specifications

General

Bus type	DMI
Stepping	L1
Tjunction	90 °C
Processor cache	3 MB
Processor cores	2
Processor model	i3-3110M
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-3100 Mobile Series
Processor socket	BGA 1023
Processor threads	4
Processor codename	Ivy Bridge
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	24
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel HM76 Express
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
HDD speed	7200 RPM
HDD interface	SATA II
Storage media	HDD
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	320 GB
Compatible memory cards	MMC, SD
Number of HDDs installed	1
Display diagonal	15.6 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
LightScribe	-
Intel segment tagging	Enterprise
Ethernet interface type	Gigabit Ethernet
On-board graphics card ID	0x166
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
Pointing device	Touchpad
Operating system installed	Windows 7 Professional
Form factor	Clamshell
Product color	Black
Country of origin	China
Battery capacity	55 Wh
Battery life (max)	7.25 h
Number of battery cells	6
AC adapter power	65 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	ENERGY STAR
Processor code	SR0N2
Processor ARK ID	65700
Processor package size	37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	251 mm
Width	374 mm
Height	34 mm
Weight	2510 g
