i.

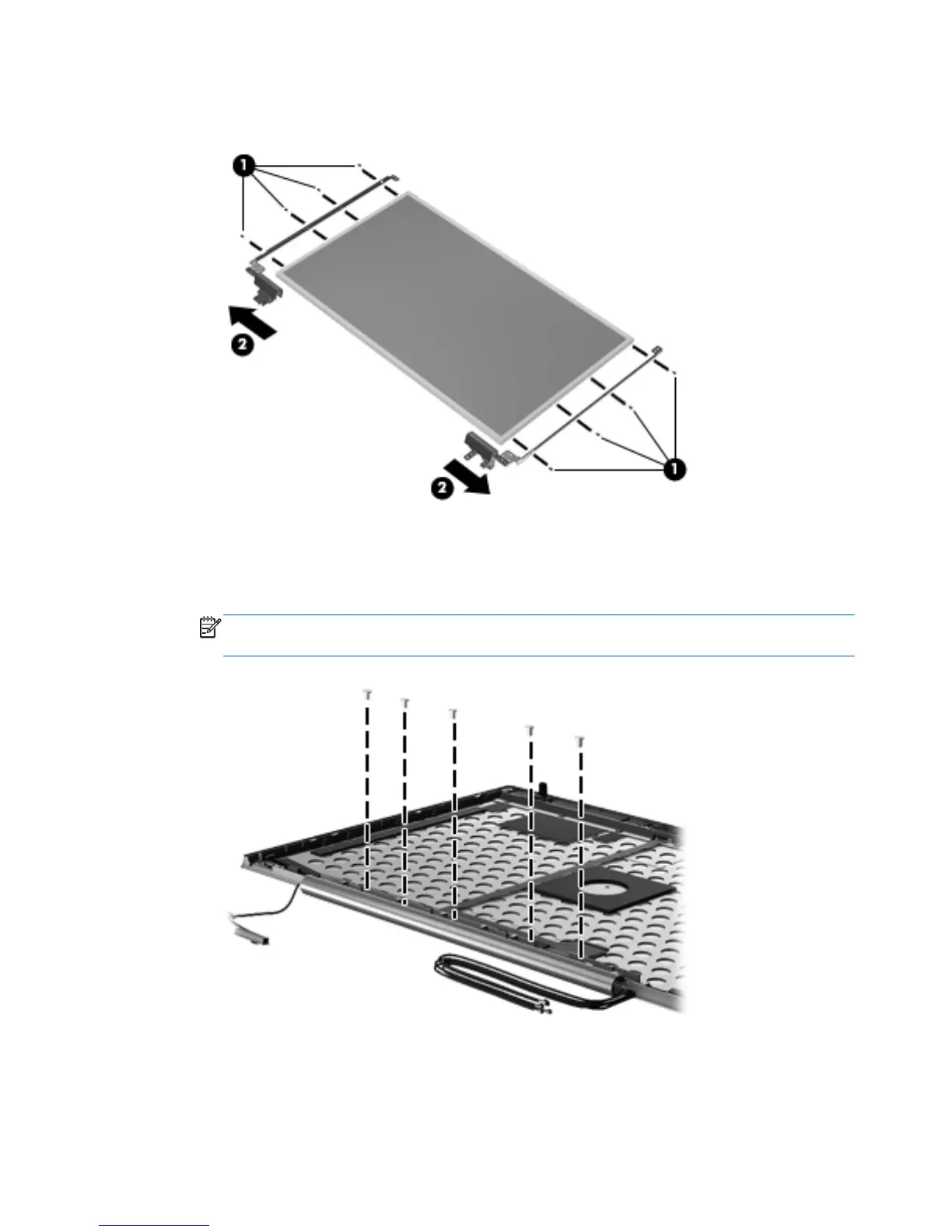

Remove the display hinge assemblies (2). The display hinge assemblies are included in
the Display Hinge Kit, spare part number 647677-001.
13. If it is necessary to replace the display panel cable:
a.
Remove the five Phillips PM2.0×3.0 screws that secure the display hinge tube to
the display enclosure.
NOTE: Substeps a through d apply only to an HP EliteBook 6570b Notebook PC
computer model.
b. Release the display hinge tube (1) from the display enclosure.
142 Chapter 4 Removal and replacement procedures
