Configuration Examples
Planning and
Implementation for the
5400zl/8200zl Switches
In this configuration, EPS 2 of the Power Supply Shelf can be connected to
either EPS 1 or EPS 2 of either switch.

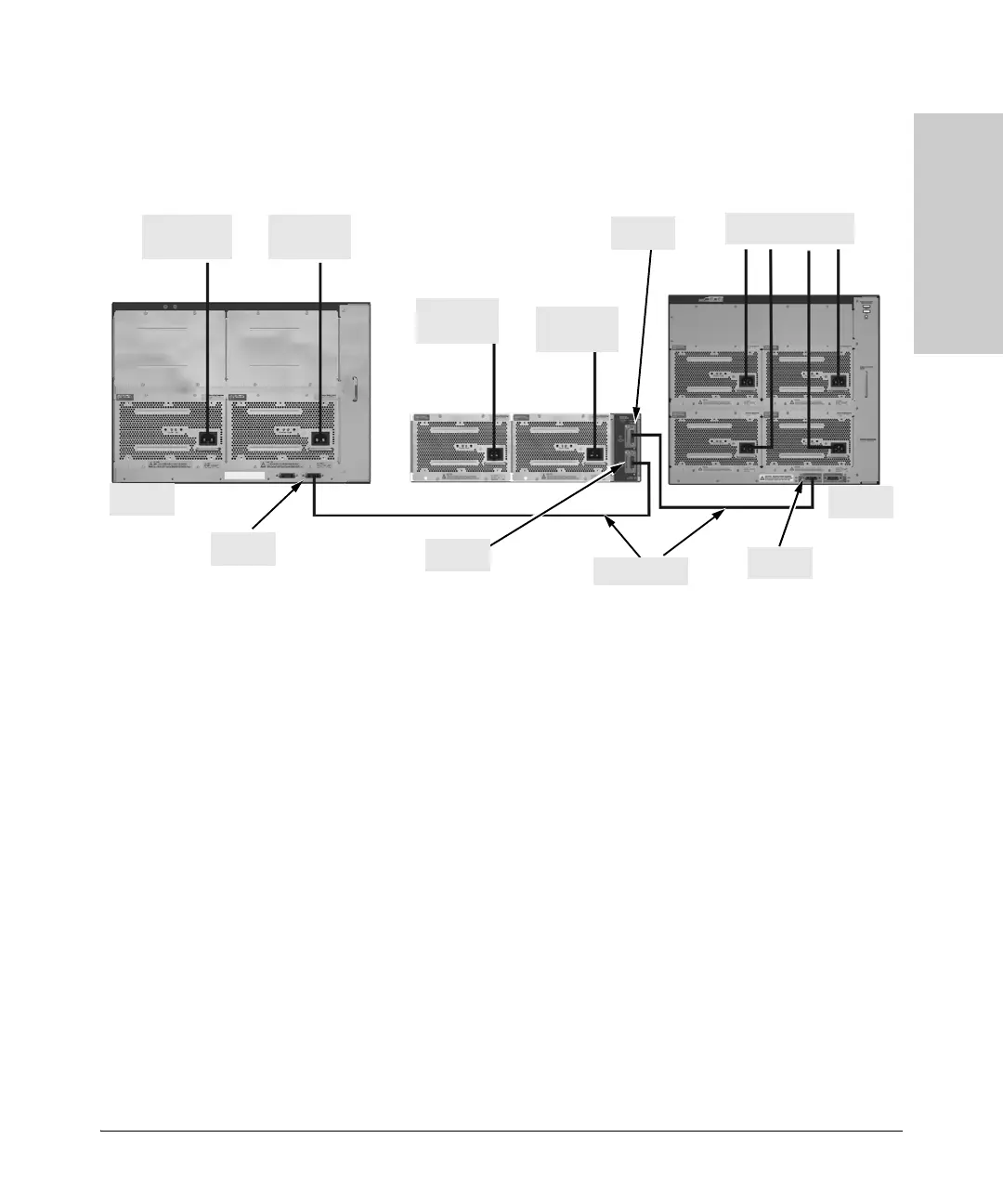

Figure 10-22.Connecting the EPS to two switches, one 5412zl and one 8212zl
To Power
Source
To Power Source
To P ow er
Source
To Po we r
Source
To Po we r
Source
EPS Cables
EPS 1
EPS 2
EPS 2
EPS 1
5412zl
8212zl
