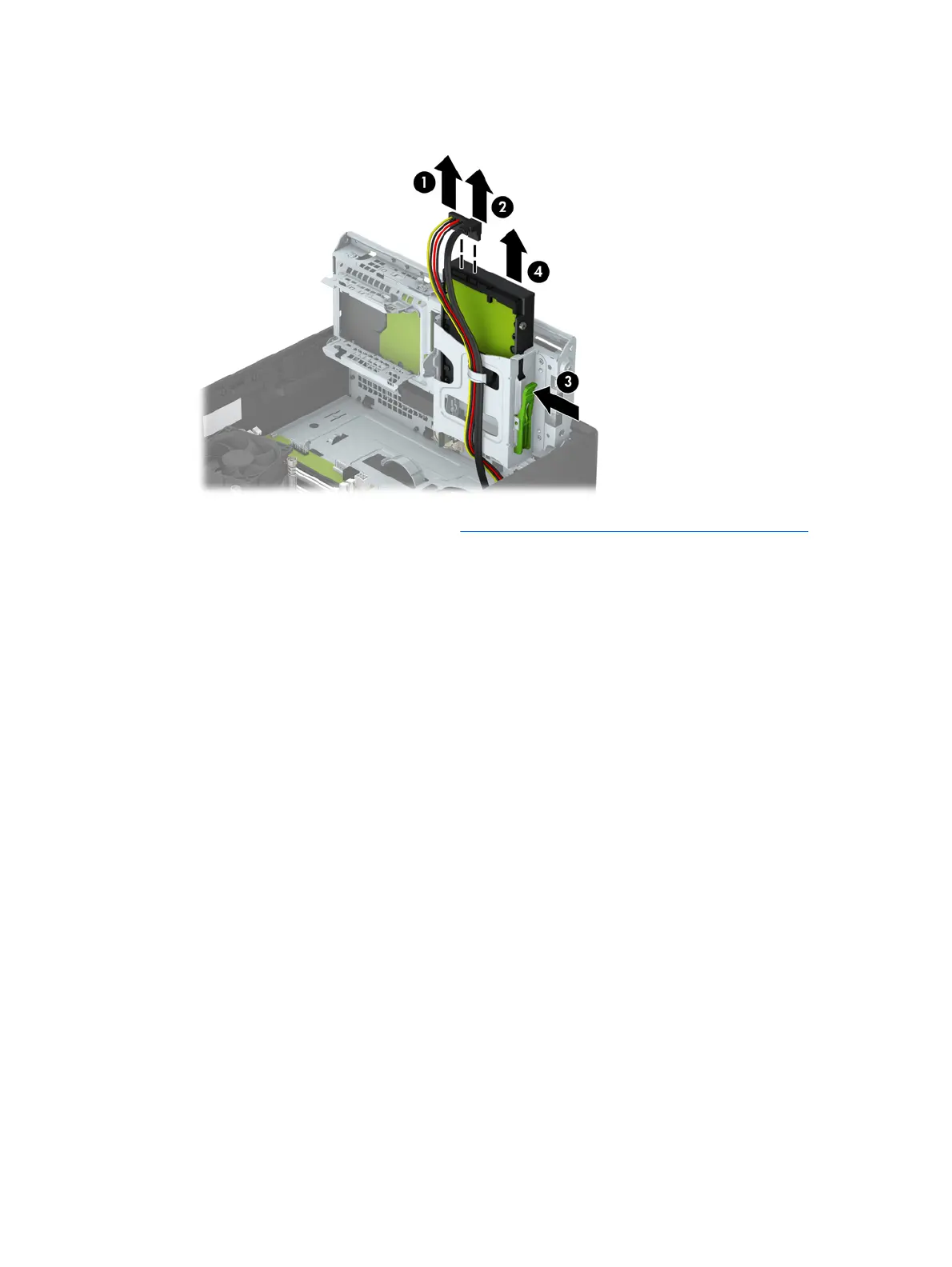

8. Disconnect the power cable (1) and data cable (2) from the rear of the hard drive. Press the release latch
on the side of the drive cage (3), and then slide the drive out of the drive bay (4).
9. If you are installing a new drive, refer to Installing a secondary 3.5-inch hard drive on page 30. If you
are not installing a new drive, rotate the drive cage down and replace the access panel.
Installing and removing drives 29
