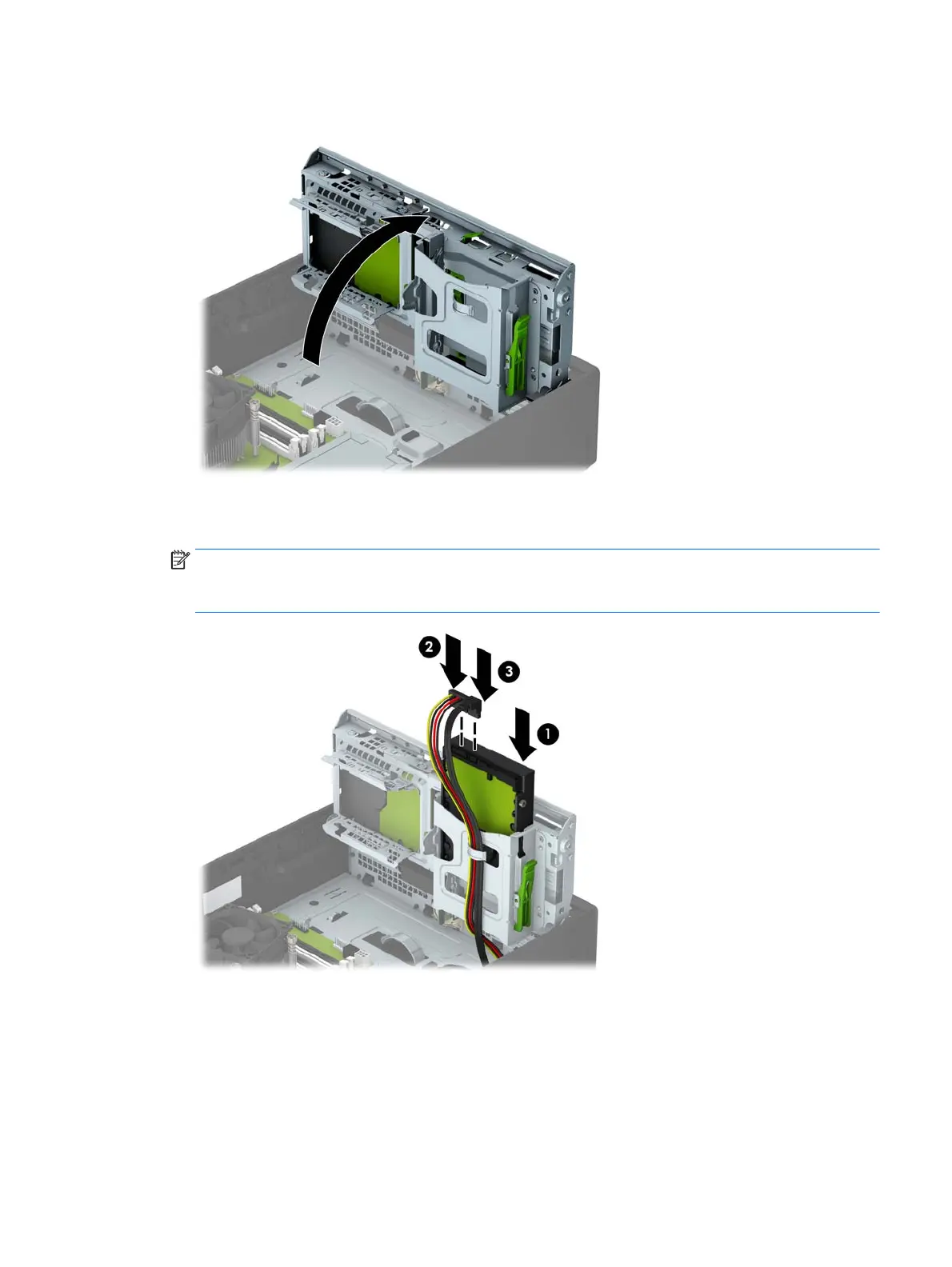

8. Rotate the drive cage to its upright position.
9. Slide the drive into the drive bay (1), and then connect the power cable (2) and data cable (3) to the rear
of the hard drive
NOTE: If the drive is a secondary hard drive, connect the other end of data cable to one of the light
blue SATA connectors on the system board. If the drive is the primary hard drive, connect the other end
of the data cable to the dark blue SATA connector on the system board.
Installing and removing drives 31
