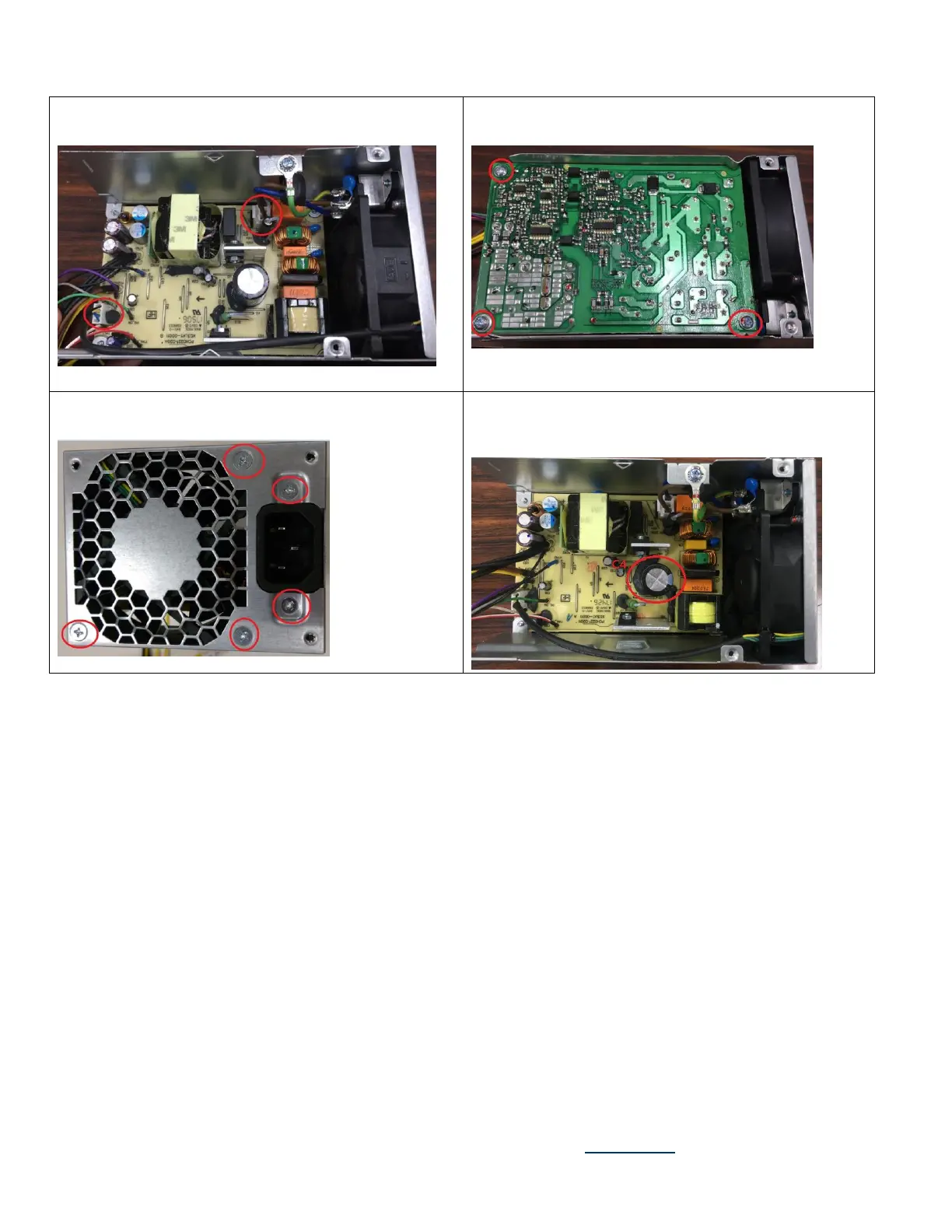

Figure 39 Disconnect fan connector and inlet connector.
Figure 40 Remove PCB1 screw
Figure 41 Remove AC inlet & Fan screw
Figure 42 Heat the solder of Electrolytic Capacitors
greater than 2.5cm in diameter or height and remove it.
EL-MF877-00 Page 11
Template Revision B
