HP ProDesk 600 G5 PCI MT - Page 5

PSG instructions for this template are available at EL-MF877-01

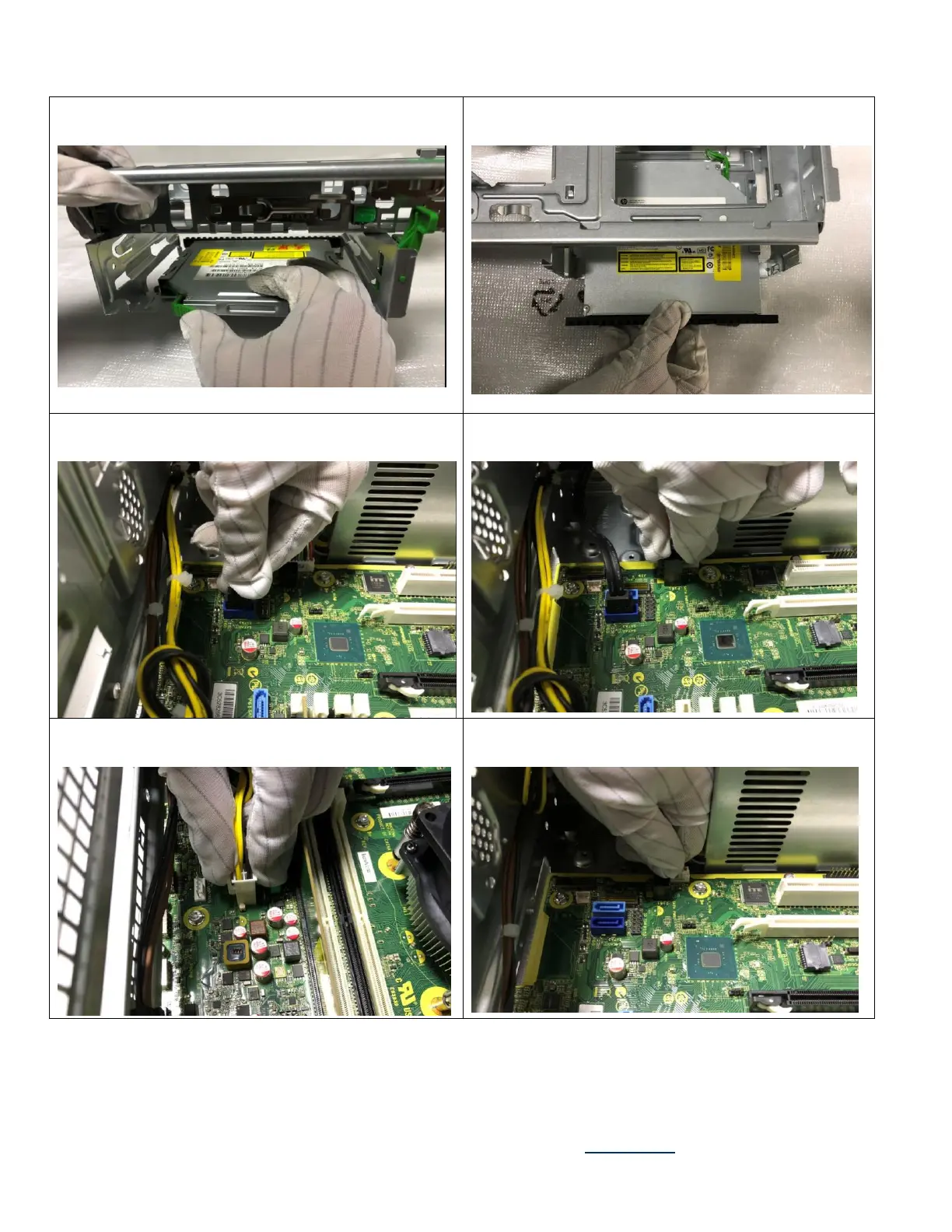

Figure 7 Press slim ODD latch
Figure 8 Remove slim ODD from ODD cage
Figure 9 Disconnect HDD SATA cable from the MB
Figure 10 Disconnect HDD Power cable from the MB
Figure 11 Disconnect P1 Power cable from the MB
Figure 12 Disconnect P2 Power cable from the MB
