Illustrated parts catalog 16
Illustrated parts catalog

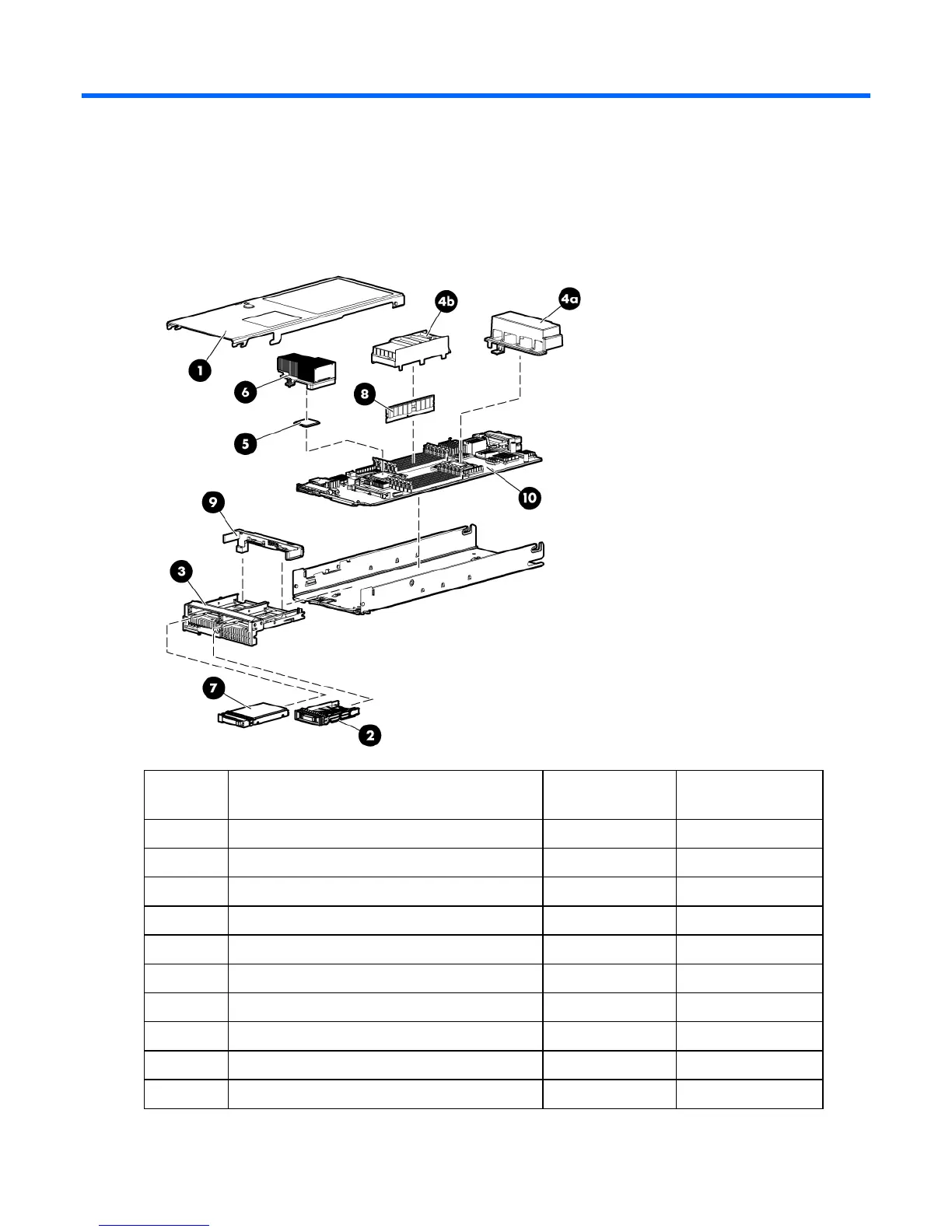

Server blade components
Item Description
Spare part
number
Customer self
repair (on page 5)
Mechanical components
1 Access panel 531224-001 Mandatory
1
2 Hard drive blank 392613-001 Mandatory
1
3 Front panel/hard drive cage assembly 531228-001 Mandatory
1
4 Hardware and plastics kit 531223-001 Mandatory
1
a) Heatsink blank — —
b) DIMM baffle — —
c) Battery tray* — —
d) Enclosure connector cover* — —
System components
