HP ProLiant BL460c

Setup 17

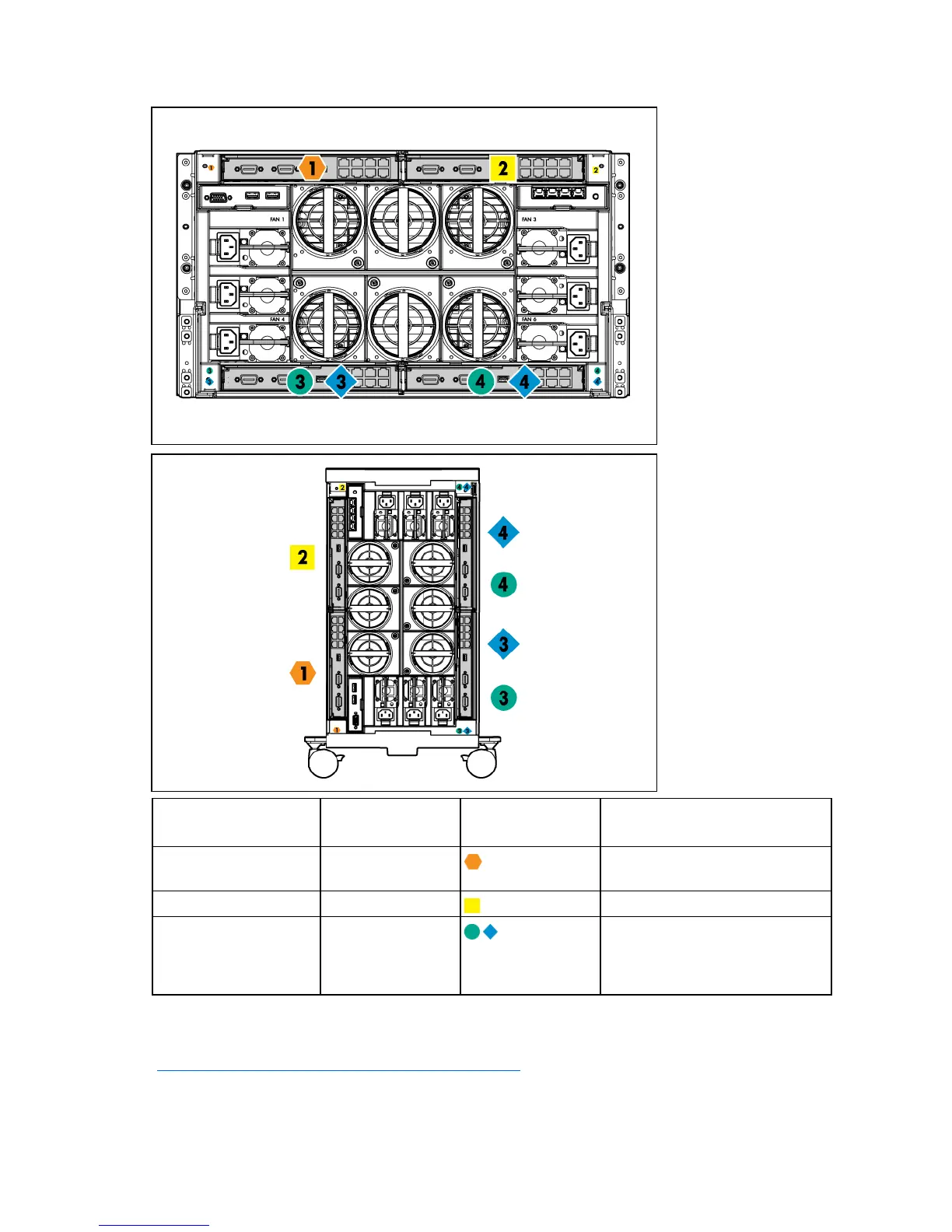

• HP BladeSystem c3000 Enclosure and Tower Enclosure
Server blade signal Interconnect bay
number
Interconnect bay
label
Notes
Flex-10 NIC 1, 2
(embedded)
1
—
Mezzanine 1 2
Four port cards connect to bay 2
Mezzanine 2 3,4
• Four port cards
• Ports 1 and 3 connect to bay 3
• Ports 2 and 4 connect to bay 4
For detailed port mapping information, see the HP BladeSystem enclosure installation poster or the
HP BladeSystem enclosure setup and installation guide on the HP website
(http://www.hp.com/go/bladesystem/documentation
).
