Hardware options installation 35
4.

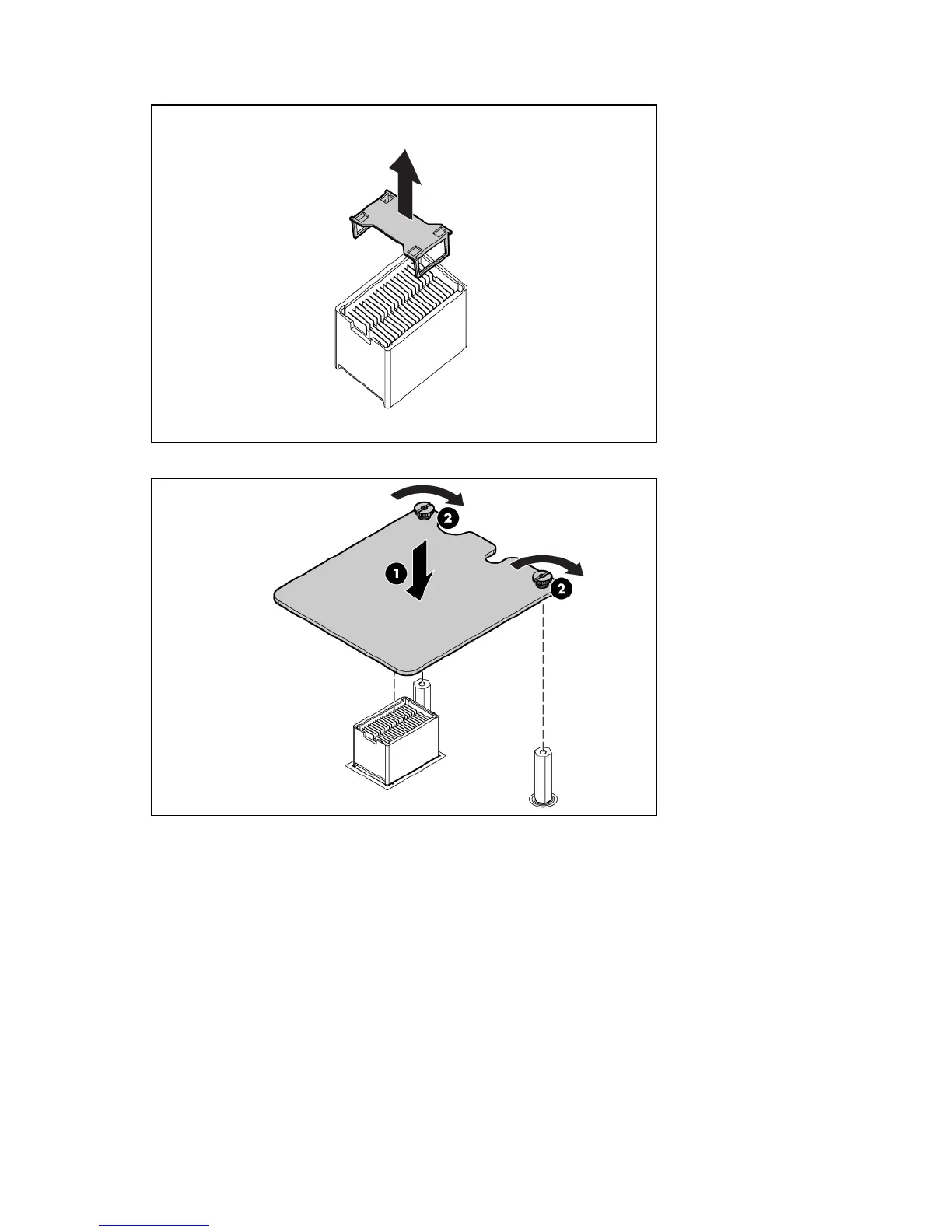

Remove the mezzanine connector cover.
5. Install the mezzanine card. Press down on the connector to seat the board.
6. Install the access panel (on page 14).
7. Install the server blade ("Installing a server blade" on page 18).
Cache module and battery pack option
The optional BBWC enabler provides the system with a means for storing and saving data in the event of
an unexpected system shutdown.
To install the component:
1. Back up all data on the hard drive.
2. Power down the server blade (on page 12).
3. Remove the server blade (on page 13).
