Component identification 7

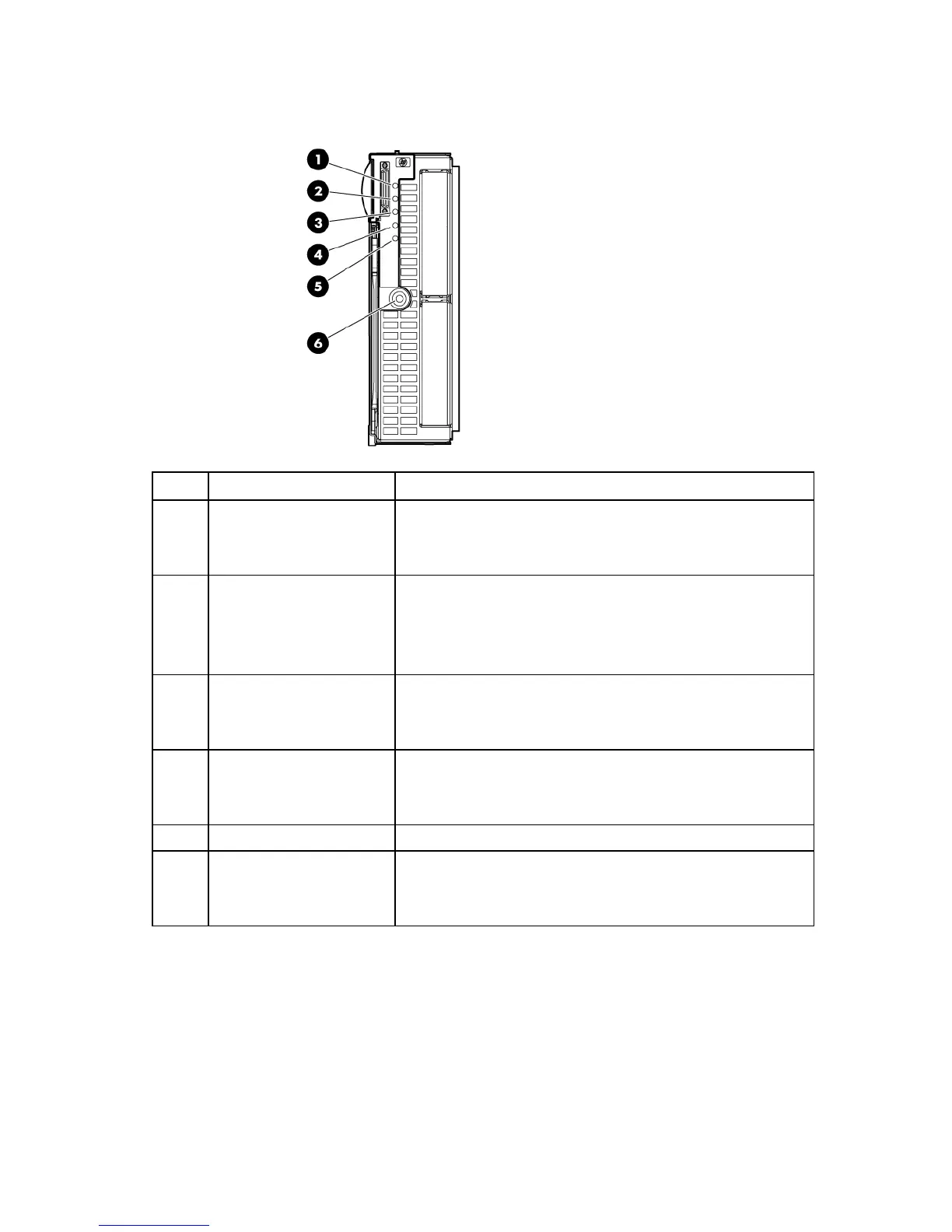

Front panel LEDs
Item Description Status
1 UID LED Blue = Identified
Blue flashing = Active remote management
Off = No active remote management
2 Health LED Green = Normal
Flashing = Booting
Amber = Degraded condition
Red = Critical condition
3 Flex-10 NIC 1 LED* Green = Network linked
Green flashing = Network activity
Off = No link or activity
4 Flex-10 NIC 2 LED* Green = Network linked
Green flashing = Network activity
Off = No link or activity
5 Reserved —
6 System power LED Green = On
Amber = Standby (auxiliary power available)
Off = Off
*Actual NIC numbers depend on several factors, including the operating system installed on the server blade.
