Connectors, Switches, and LEDs 28
Rear panel components

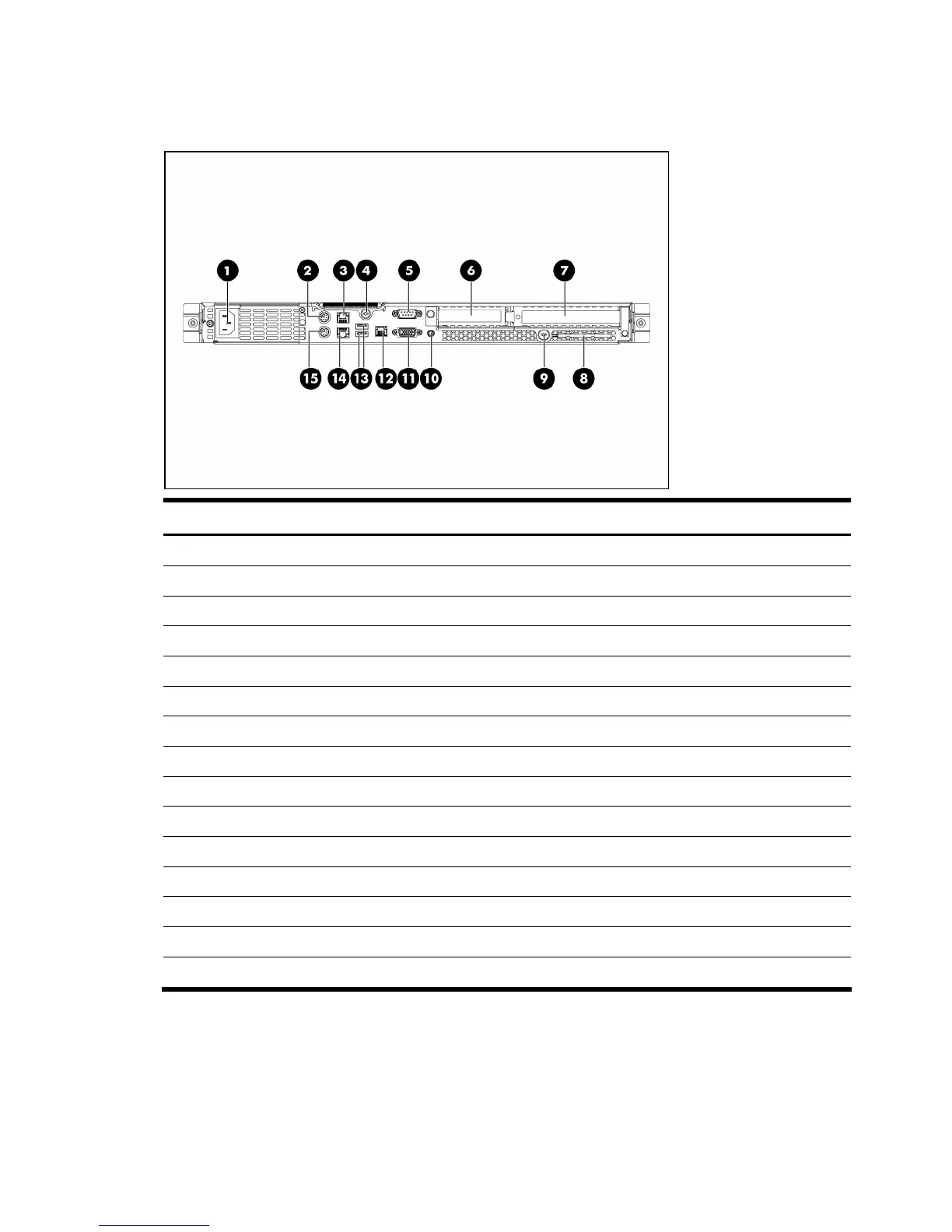

Figure 2 Rear panel components
Item Description
1 Power supply cable socket
2 PS/2 mouse port (green)
3 GbE LAN port for NIC2
4 Captive thumbscrew for top cover
5 Serial port (teal)
6 Low profile/Half length expansion slot
7 Full Height/Full length expansion slot
8 T10/T15 wrench
9 Thumbscrew for PCI cage
10 UID LED button
11 VGA port
12 HP LO100i management LAN port
13 Two rear USB 2.0 ports
14 GbE LAN port for NIC1/Management
15 PS/2 keyboard port (purple)
