Removal and replacement procedures 67

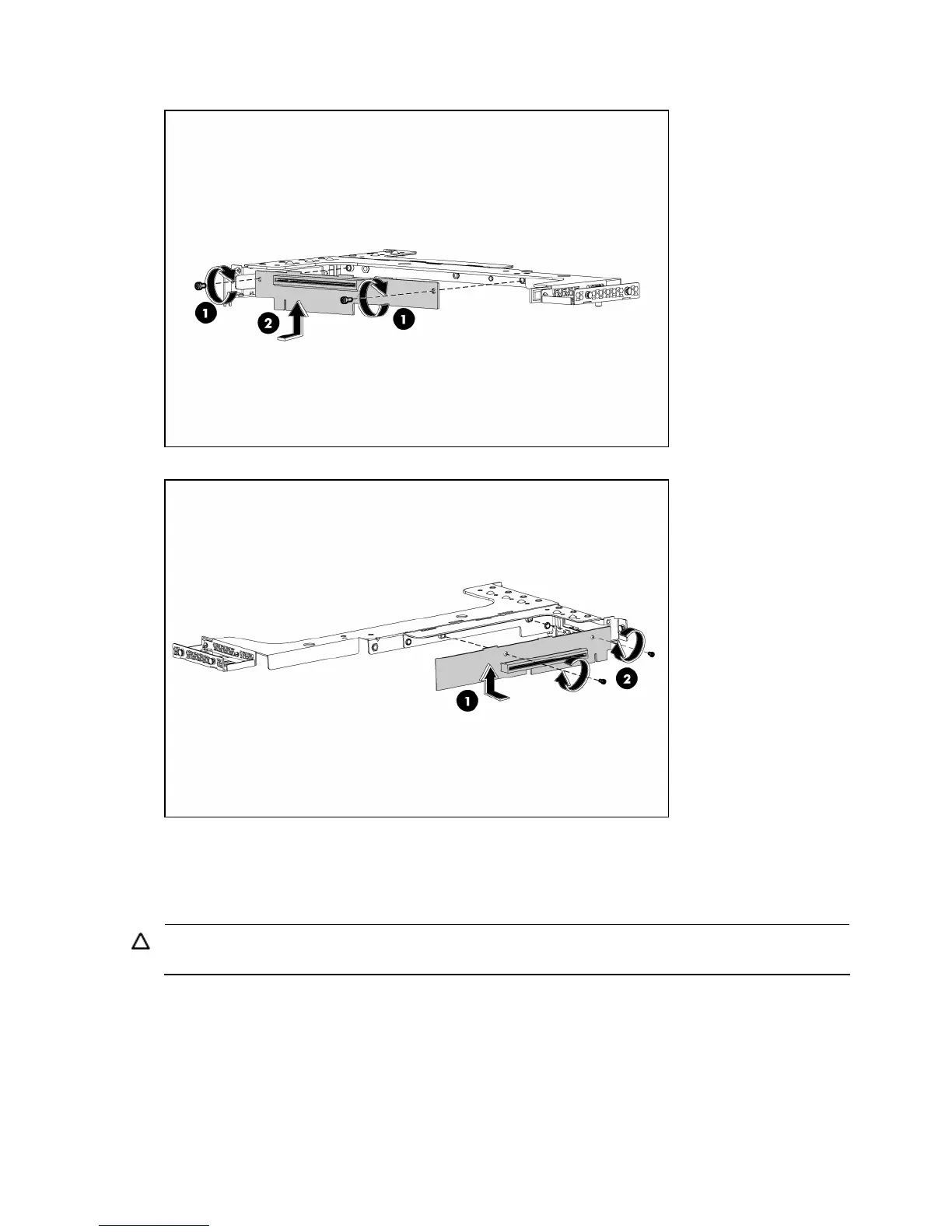

Figure 51 Installing the PCIe riser card (1)
Figure 52 Installing the PCIe riser card (2)
To remove the slot cover:
1. Loosen the screw(s) that secure(s) the slot cover(s) to the chassis.
2. Remove the slot cover(s) on the PCI cage.
CAUTION: Do not discard the slot cover. If the expansion board is removed in the future, the slot
cover must be reinstalled to maintain proper cooling.
