Connectors, switches, and LEDs 104

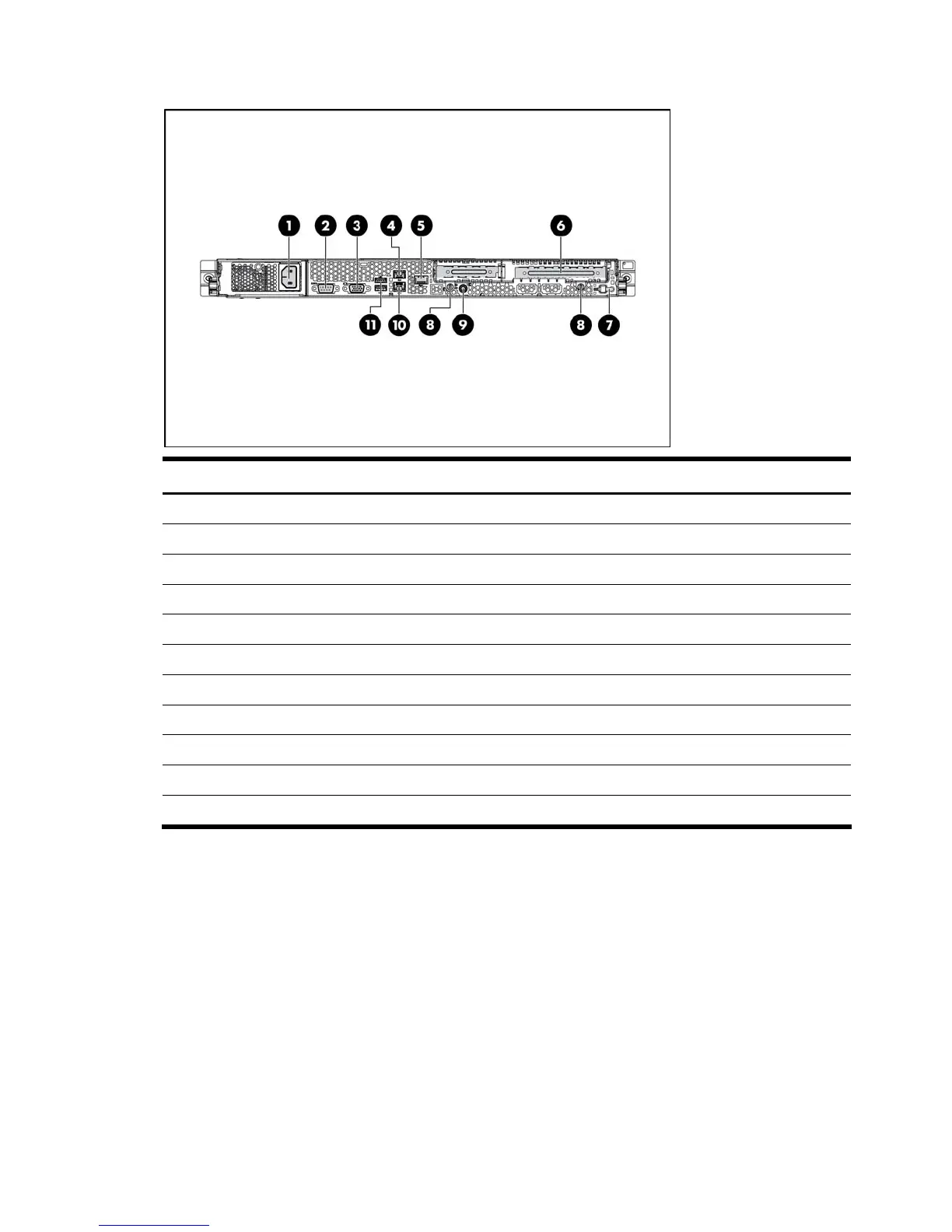

Figure 105 Rear Panel Components / Non-hot-plug Power Supply Model
Item Description
1 Power supply cable socket
2 Serial port
3 VGA port
4 GbE LAN port for NIC 2
5 Dedicated management port (optional)
6 Full-height/full-length PCI expansion card slot cover
7 T-10/T-15 wrench
8 Screws for PCI cage
9 Rear UID LED/switch
10 GbE LAN port for NIC 1
11 Rear panel 2.0 port 2/3
