Server component identification 44
Item Description Status
6 NIC 2 link/activity LED Green = Network link exists.
Flashing green = Network link and activity exist.
Off = No link to network exists.
If power is off, the front panel LED is not active. View the LEDs on
the RJ-45 connector for status by referring to the rear panel LEDs
("Rear panel LEDs and buttons" on page 45).

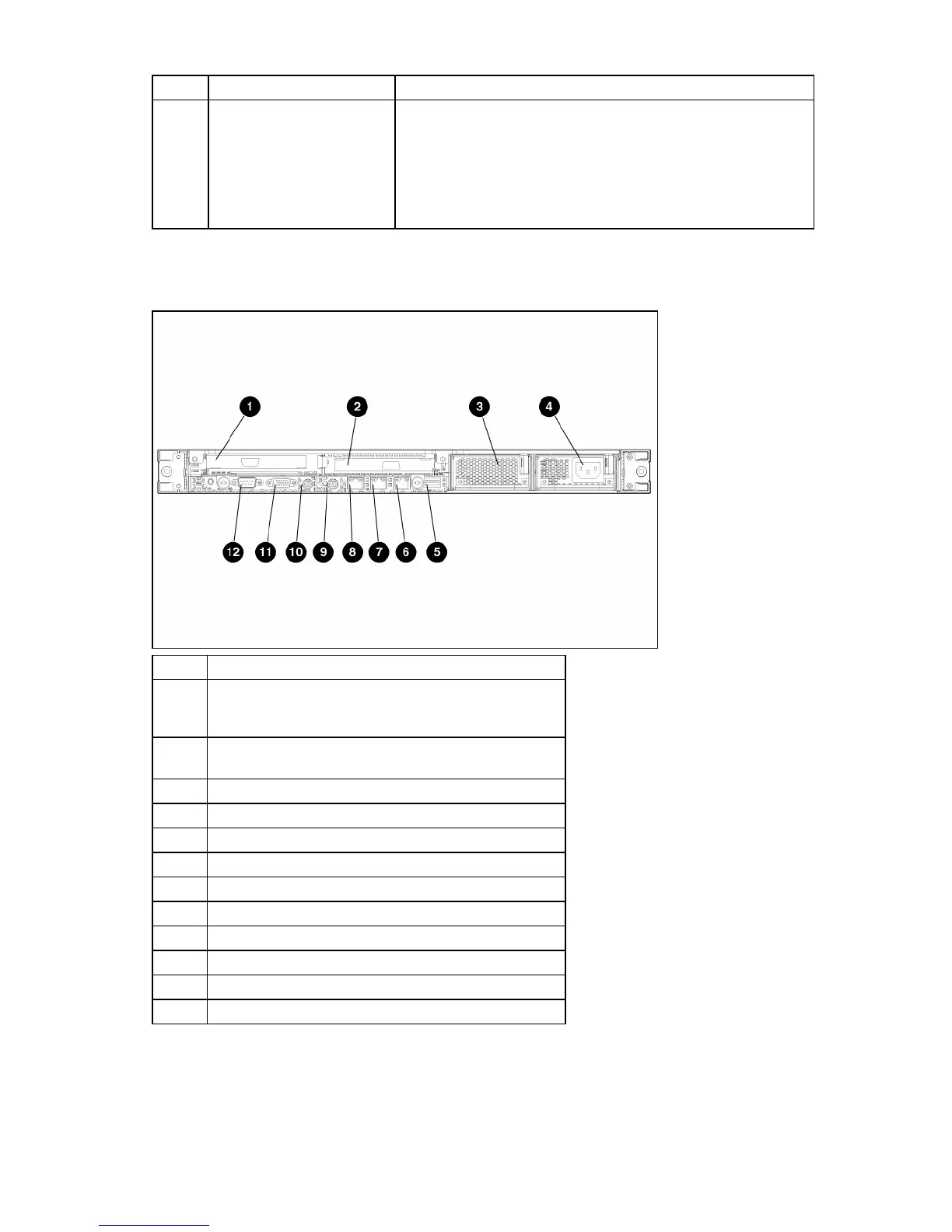

Rear panel components
Item Description
1
PCI-X expansion slot 1, 64-bit/133-MHz 3.3V (optional
PCI Express slot 1, x8)
2
PCI-X expansion slot 2, 64-bit/133-MHz 3.3V (optional
PCI Express slot 2, x8)
3 Power supply bay 2
4 Power supply bay 1 (populated)
5 Rear USB connector
6 10/100/1000 NIC 2
7 10/100/1000 NIC 1
8 iLO management port
9 Mouse connector
10 Keyboard connector
11 Video connector
12 Serial connector
