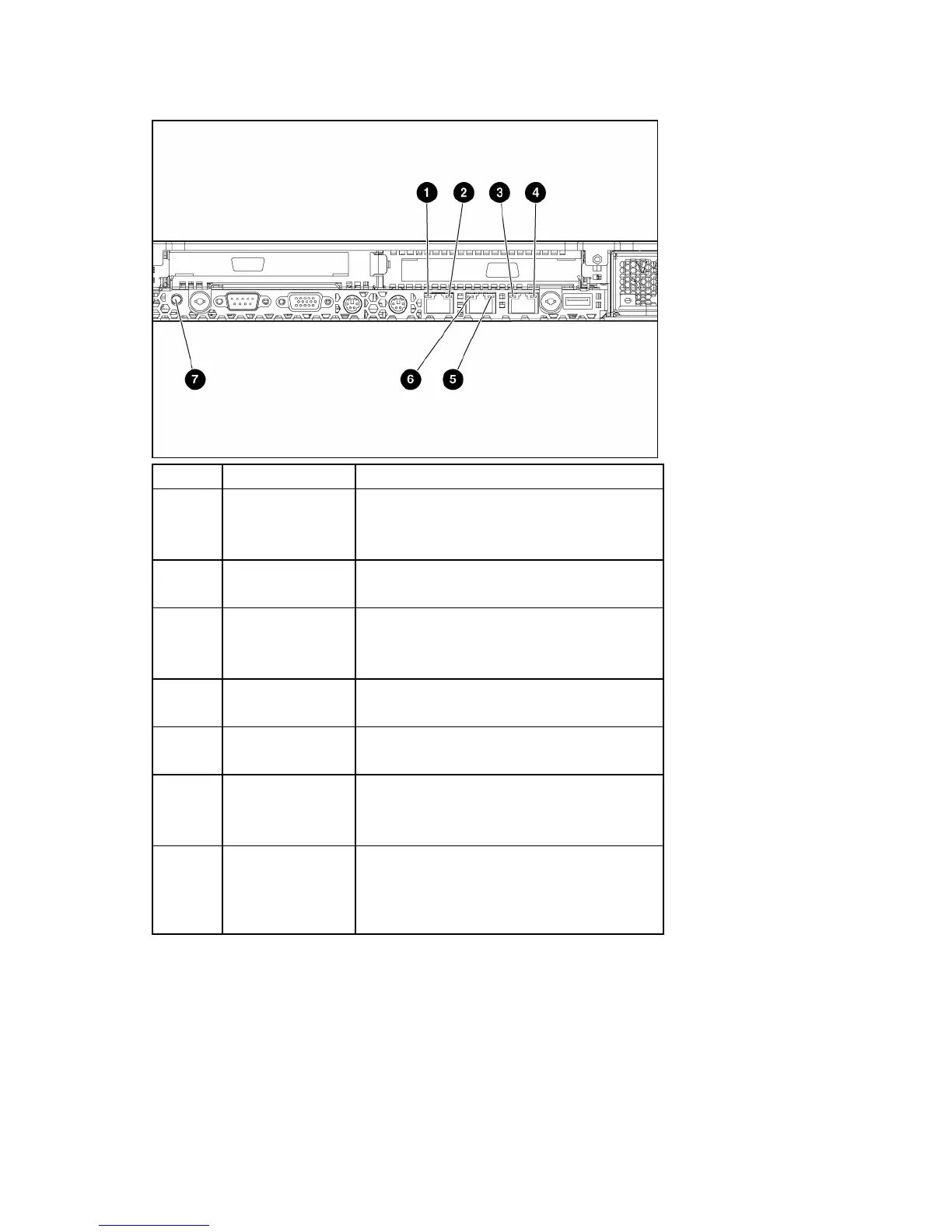

Rear panel LEDs and buttons
Item Description Status
1 iLO activity Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
2 iLO link Green = Link exists.
Off = No link exists.
3 10/100/1000
NIC 2 activity
Green = Link exists.
Flashing green = Activity exists.
Off = No link exists.
4 10/100/1000
NIC 2 link
Green = Link exists.
Off = No link exists.
5 10/100/1000
NIC 1 link
Green = Link exists.
Off = No link exists.
6 10/100/1000
NIC 1 activity
Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
7 UID button/LED Blue = Identification is activated.
Flashing blue = System is being managed
remotely.
Off = Identification is deactivated.
