HP ProLiant DL360 Generation 4p - System Board Components

Server component identification 46

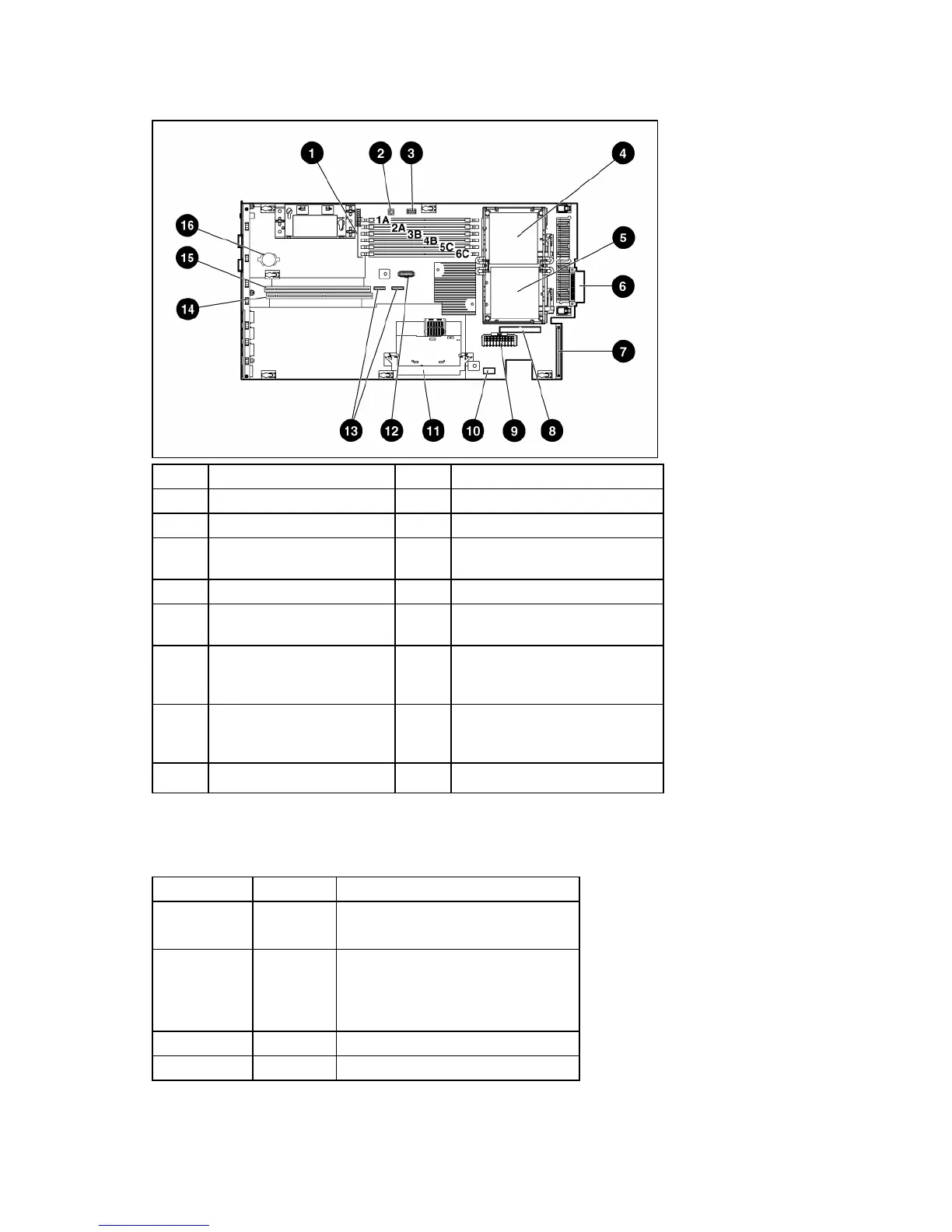

System board components
Item Description Item Description
1 DIMM slots (1-6) 9 Power supply connector
2 NMI switch 10 Power supply signal connector
3
System maintenance switch
(SW2)
11
Smart Array 6i memory module
connector*
4 Processor 1 socket 12 Remote management connector
5 Processor 2 socket 13
SATA connectors (SATA model
only)
6
Processor zone fan module
connector
14
PCI riser board assembly
connector (for slot 2 riser
board)
7
SCSI backplane
connector*
15
PCI riser board assembly
connector (for slot 1 riser
board)
8 Optical device connector 16 System battery
* For SCSI models only
System maintenance switch
Position Default Function
S1 Off Off = iLO security is enabled.
On = iLO security is disabled.
S2 Off
Off = System configuration can be
changed.
On = System configuration is
locked.
S3 Off Reserved
S4 Off Reserved
