Removal and replacement procedures 41
6.

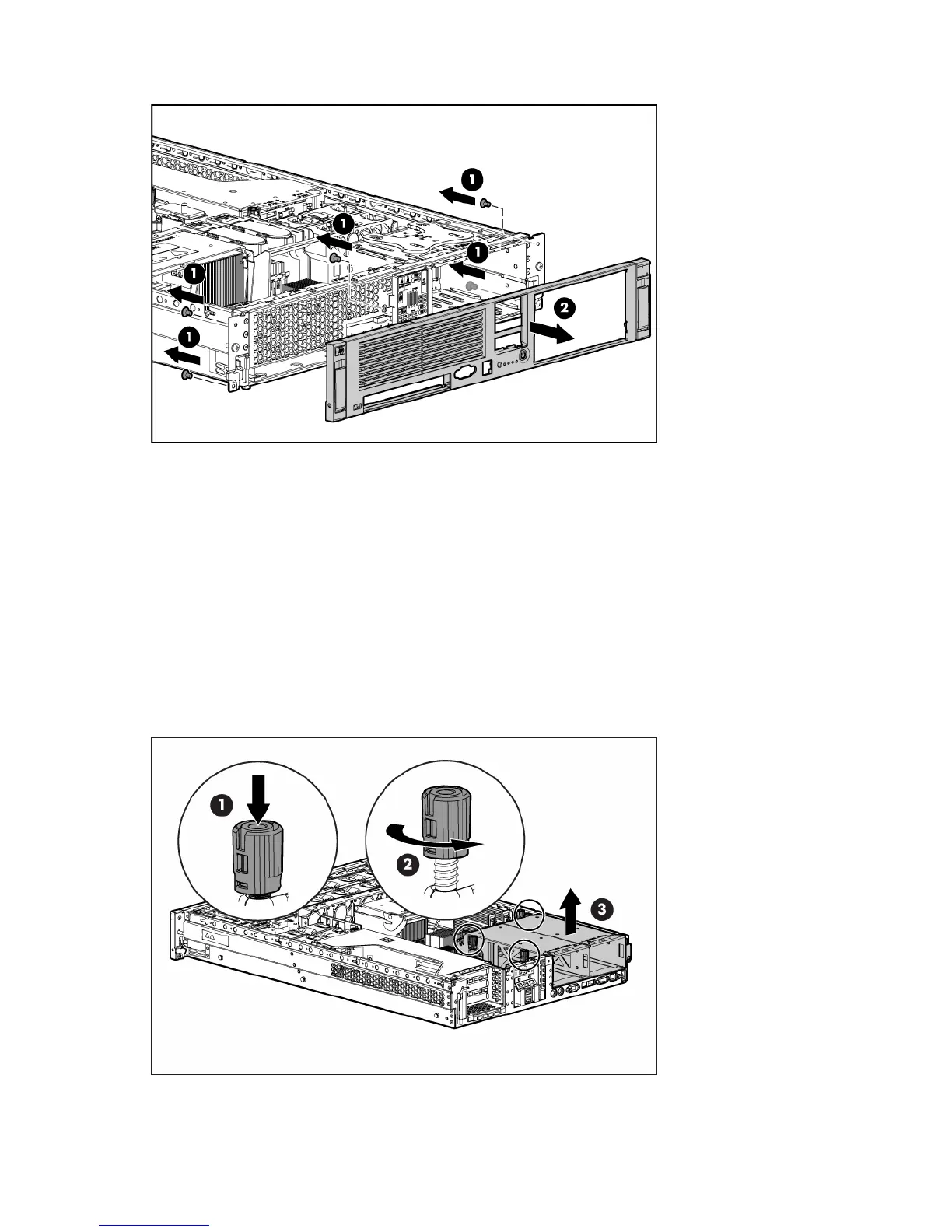

Remove the five T-15 Torx screws and detach the front bezel.
To replace the component, reverse the removal procedure.
Power supply cage assembly
To remove the component:
1. Power down the server (on page 30).
2. Access the product rear panel (on page 31).
3. Remove all power supplies ("Hot-plug power supply" on page 34).
4. Remove the server from the rack (on page 31).
5. Remove the access panel ("Access panel" on page 32).
6. Remove the power supply cage assembly.
To replace the component, reverse the removal procedure.
