HP ProLiant DL380 Generation 5

Removal and replacement procedures 42
Systems Insight Display
To remove the component:
1. Power down the server (on page 30).
2. Extend the server from the rack (on page 29).
3. Remove the access panel ("Access panel" on page 32).
IMPORTANT: For this procedure, you do not need to remove the hot-plug fans from the
processor fan bracket. When reinstalling the processor fan bracket, press the top of each fan
to be sure it seats securely.
4. Remove the processor fan bracket ("Processor fan bracket" on page 39).

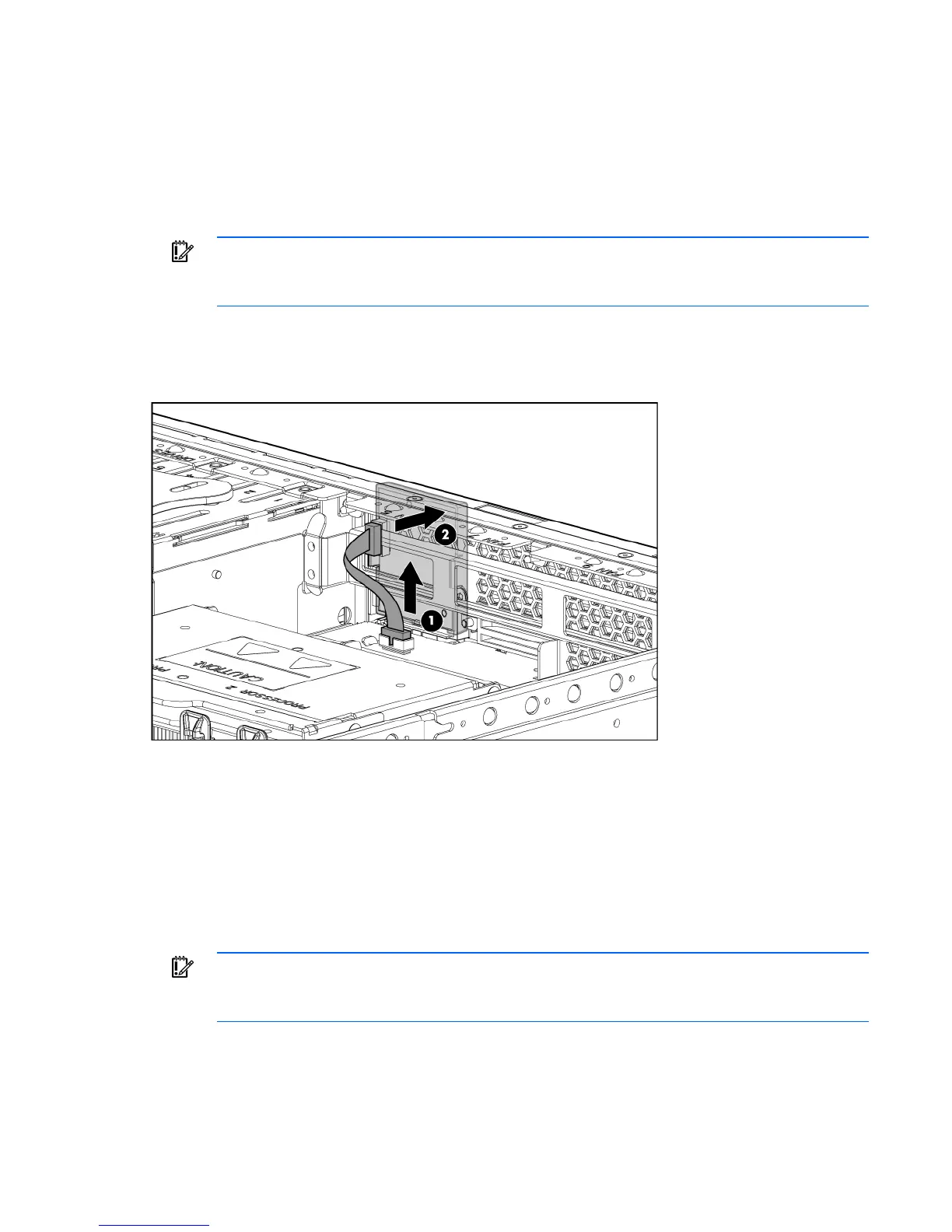

5. Disconnect the Systems Insight Display cable.
6. Remove the Systems Insight Display.
To replace the component, reverse the removal procedure.
Fan board
To remove the component:
1. Power down the server (on page 30).
2. Extend the server from the rack (on page 29).
3. Remove the access panel ("Access panel" on page 32).
IMPORTANT: For this procedure, you do not need to remove the hot-plug fans from the
processor fan bracket. When reinstalling the processor fan bracket, press the top of each fan
to be sure it seats securely.
4. Remove the processor fan bracket ("Processor fan bracket" on page 39).
5. Disconnect the Systems Insight Display cable and the fan board cable.
