Removal and replacement procedures 43
6.

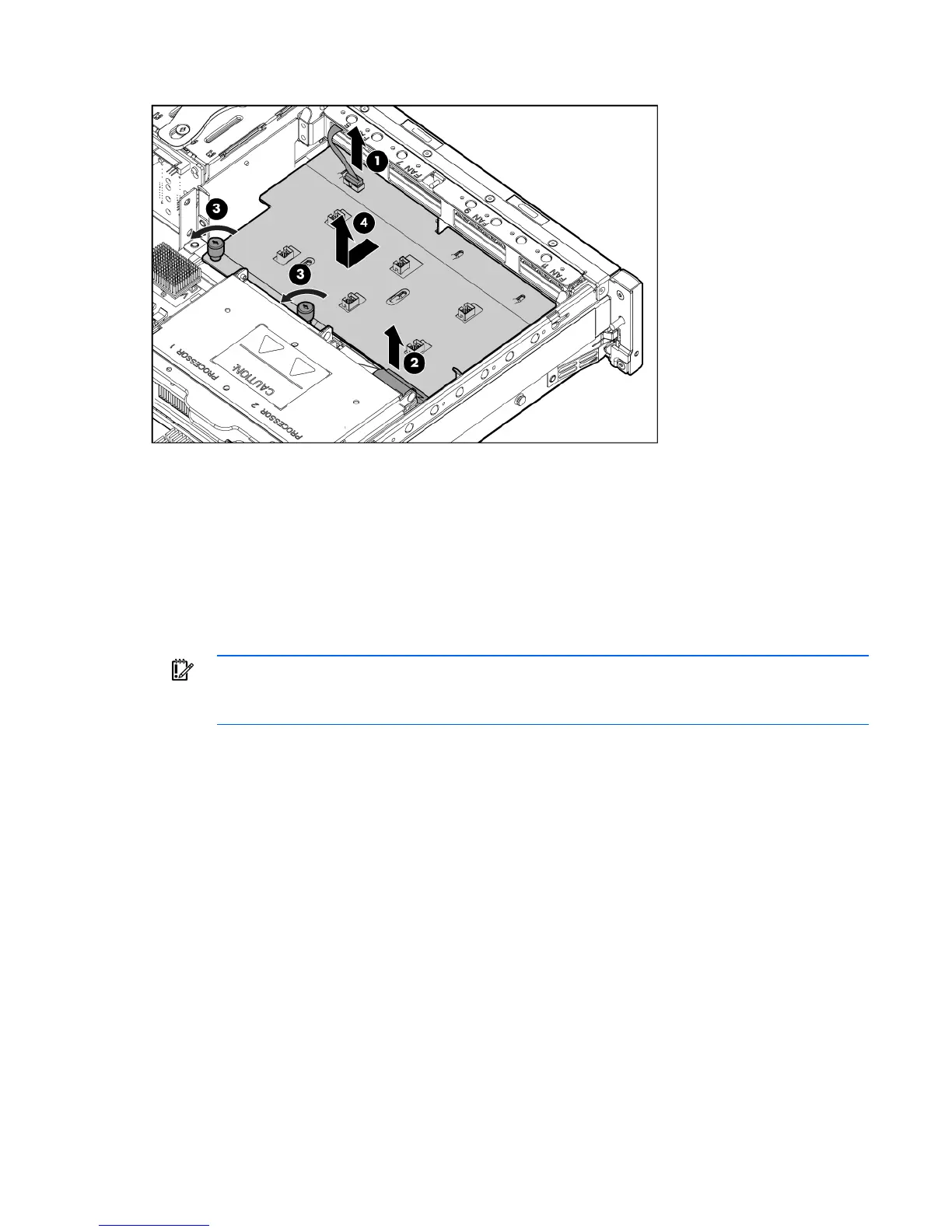

Remove the fan board.
To replace the component, reverse the removal procedure.
Processor fan bracket plate
To remove the component:
1. Power down the server (on page 30).
2. Extend the server from the rack (on page 29).
3. Remove the access panel ("Access panel" on page 32).
IMPORTANT: For this procedure, you do not need to remove the hot-plug fans from the
processor fan bracket. When reinstalling the processor fan bracket, press the top of each fan
to be sure it seats securely.
4. Remove the processor fan bracket ("Processor fan bracket" on page 39).
5. Disconnect the Systems Insight Display cable and the fan board cable.
6. Remove the fan board ("Fan board" on page 42).
7. Remove the six T-15 Torx screws securing the processor fan bracket plate.
