HP ProLiant ML110 Generation 5 User Manual

Removal and replacement procedures 35

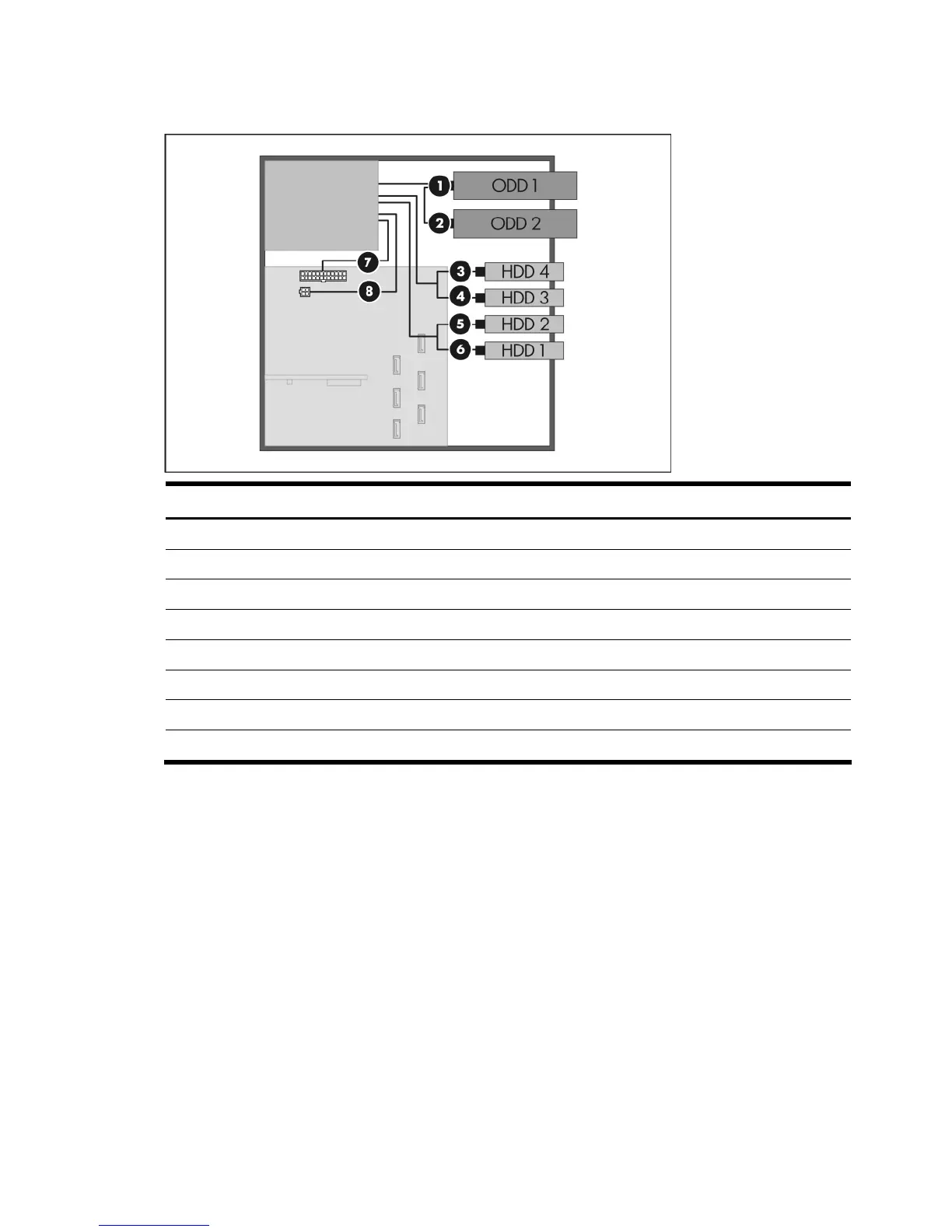

Power cable management
Item PSU cable label Connects to
1 P5 1
st
removable media drive
2 P4 2
nd
removable media drive
3 P6 from Y cable 4
th
hard drive
4 P6 from Y cable 3
rd
hard drive
5 P10 2
nd
hard drive
6 P9 1
st
hard drive
7 P1 24-pin power connector (ATXPWRCN1)
8 P3 4-pin power connector (PWRCN1)
Removable media drives
The two upper bays are half height bays that can accommodate a variety of removable media drives
including:
• CD, DVD, CD-RW/DVD combo, DVD-RW drives
• DAT 24i, 40i, 72i, Disk to Disk Backup Autoloaders (Internal/External) DAT 40x6, 72x6 drives
To install a removable media drive:
1. Perform the pre-installation procedure.
2. If you intend to replace an old media drive, proceed to step 3.
If you intend to install a new media drive in the empty 2
nd
removable media drive bay, proceed
to step 4.

HP ProLiant ML110 Generation 5 Specifications

General

Processor Sockets	1
Chipset	Intel 3200
Memory	Up to 8 GB DDR2
Memory Slots	4
Form Factor	Tower
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon 3000 Sequence
Storage	Up to 4 SATA drives
Network	Embedded NC105i PCI Express Gigabit Server Adapter
Power Supply	365W
Optical Drive	Optional DVD-ROM or DVD+/-RW
Expansion Slots	1 PCIe x16, 2 PCIe x1, 1 PCI
