Removal and replacement procedures 36

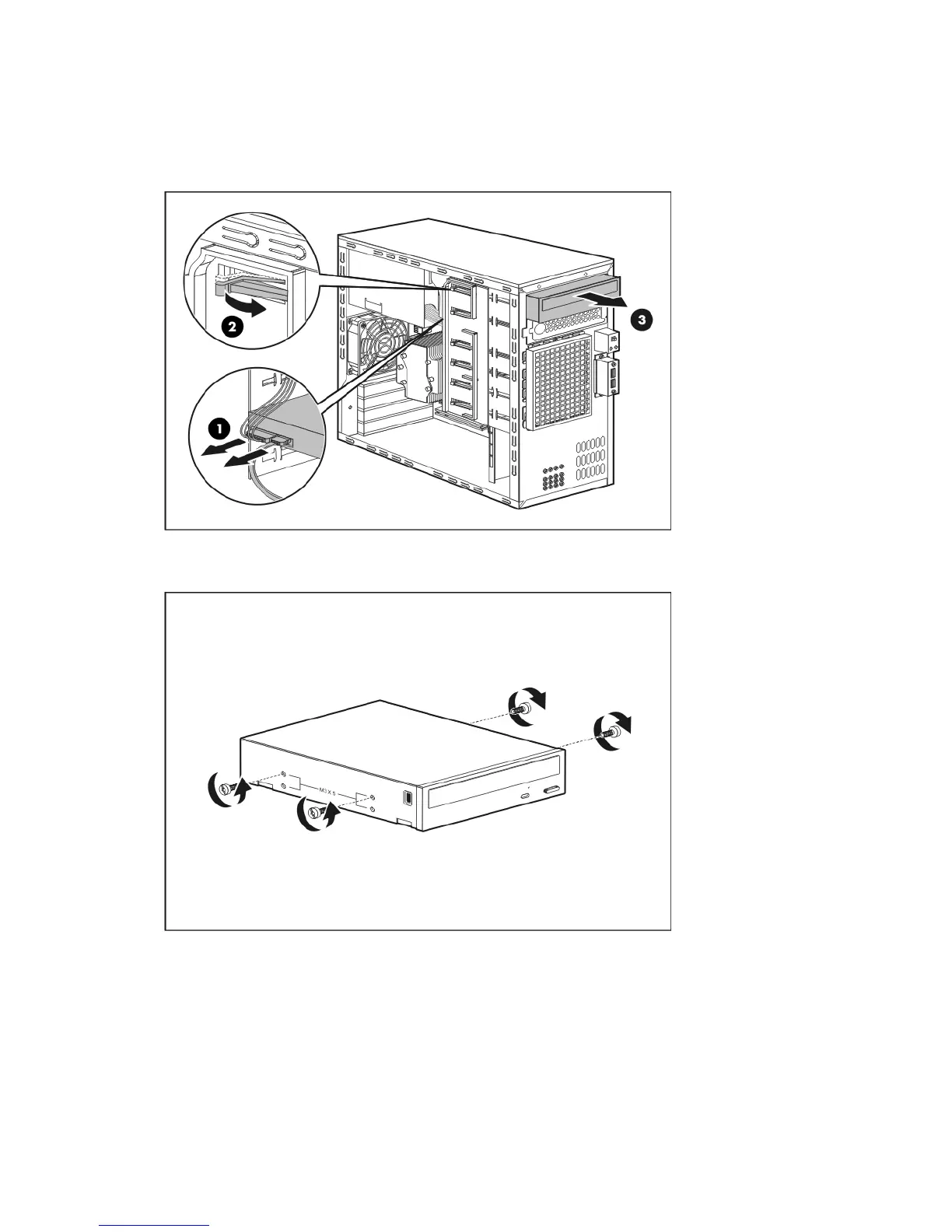

Remove the media drive you intend to replace.

a. Disconnect the power and data cables from the back of the installed drive (1).

b. Pull and hold the release tab on the drive latch for the device you want to remove (2).

c. Slide the device out of the drive bay (3).

d. Remove four screws from the sides of the drive.

Reuse these screws when you install the new removable media drive.

e. Place the old media drive on a static-dissipating work surface or inside an anti-static bag.

f. Proceed to step 5.
