Lights-Out 100c remote management card (IPMI card)
This section provides instructions for installing the HP Lights-Out 100c remote management card (IPMI
2.0 compliant). This option allows users to perform server management tasks remotely over a LAN or
the Internet. It also has a health monitoring function that tracks and records system events related to

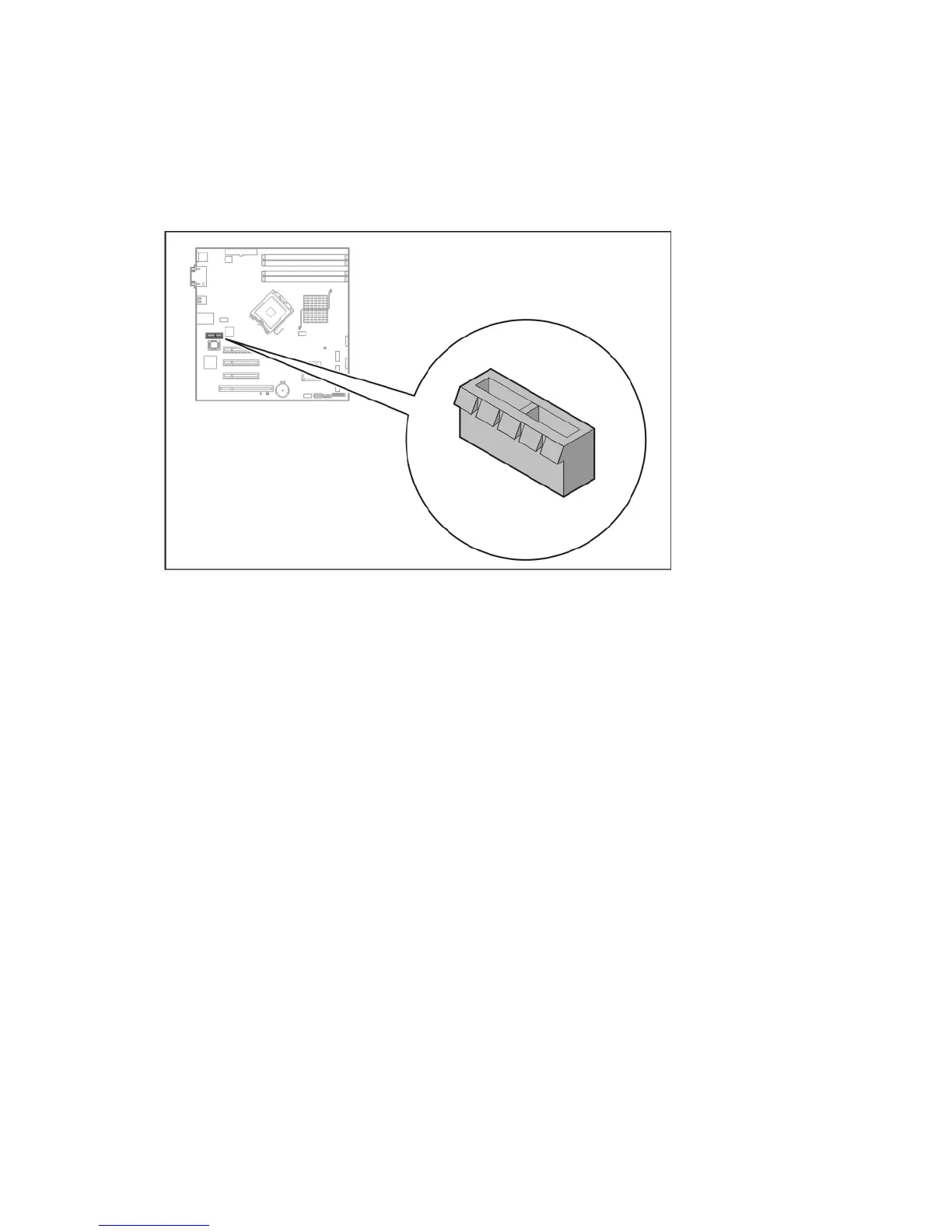

the fan status, system temperature, and voltage condition. The Lights-Out 100c upgrade connector is
shown in the figure below.
To install the IPMI card:
1. Perform the pre-installation procedure.
2. Locate the Lights-Out 100c upgrade connector on the system board.
3. If necessary, remove any components or cables that prevent access to the slot.
4. Remove the Lights-Out 100c blank bracket.
a. Remove the screw securing the bracket (1).
b. Pull the bracket out of the chassis (2).
