Removal and replacement procedures 32

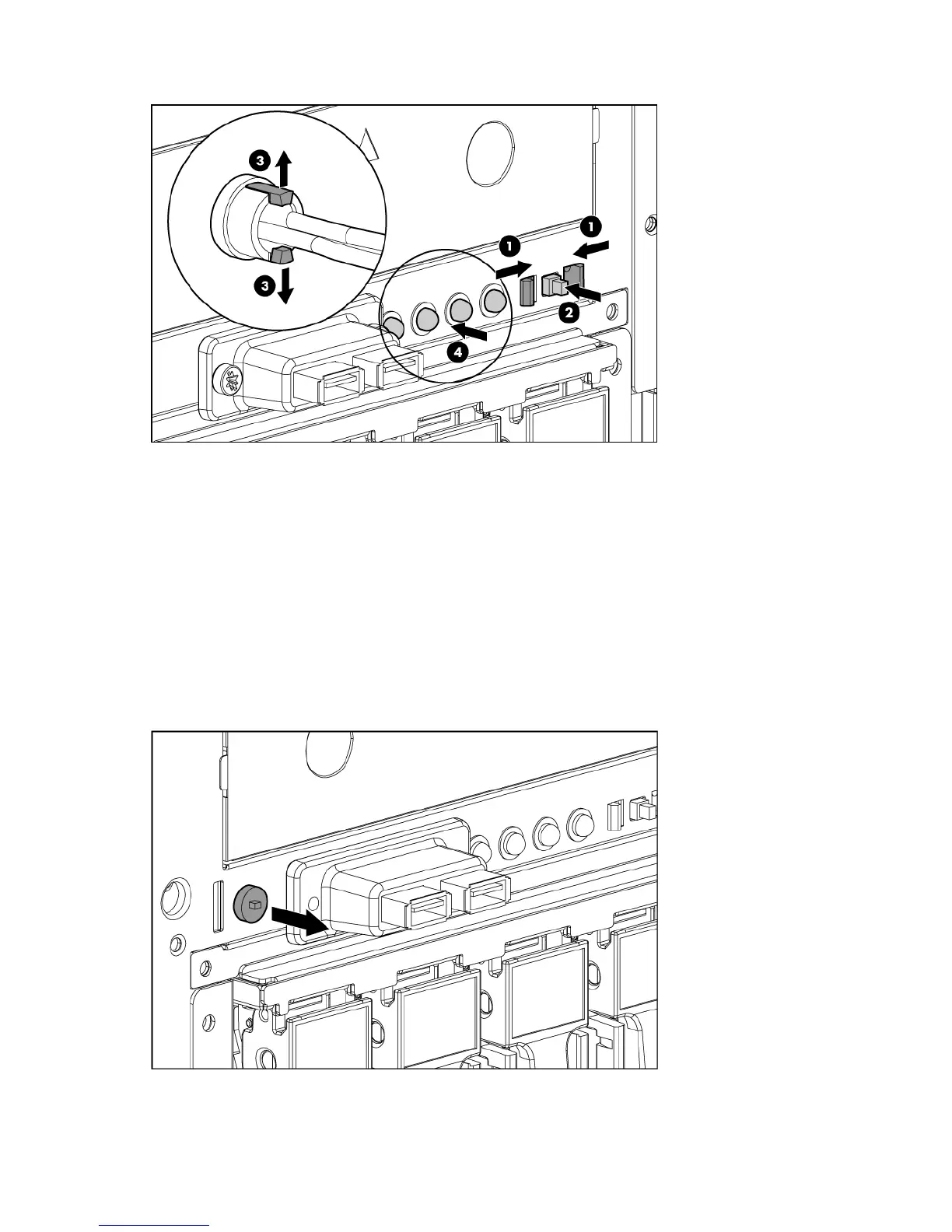

6. Remove the power button/LED cable.
To replace the component, reverse the removal procedure.
Temperature sensor
To remove the component:
1. Power down the server (on page 26).
2. Remove the bezel ("Bezel" on page 27).
3. Remove the access panel ("Access panel" on page 28).
4. Disconnect the temperature sensor cable from the system board ("System board components" on
page 68).
5. Remove the temperature sensor.
To replace the component, reverse the removal procedure.
